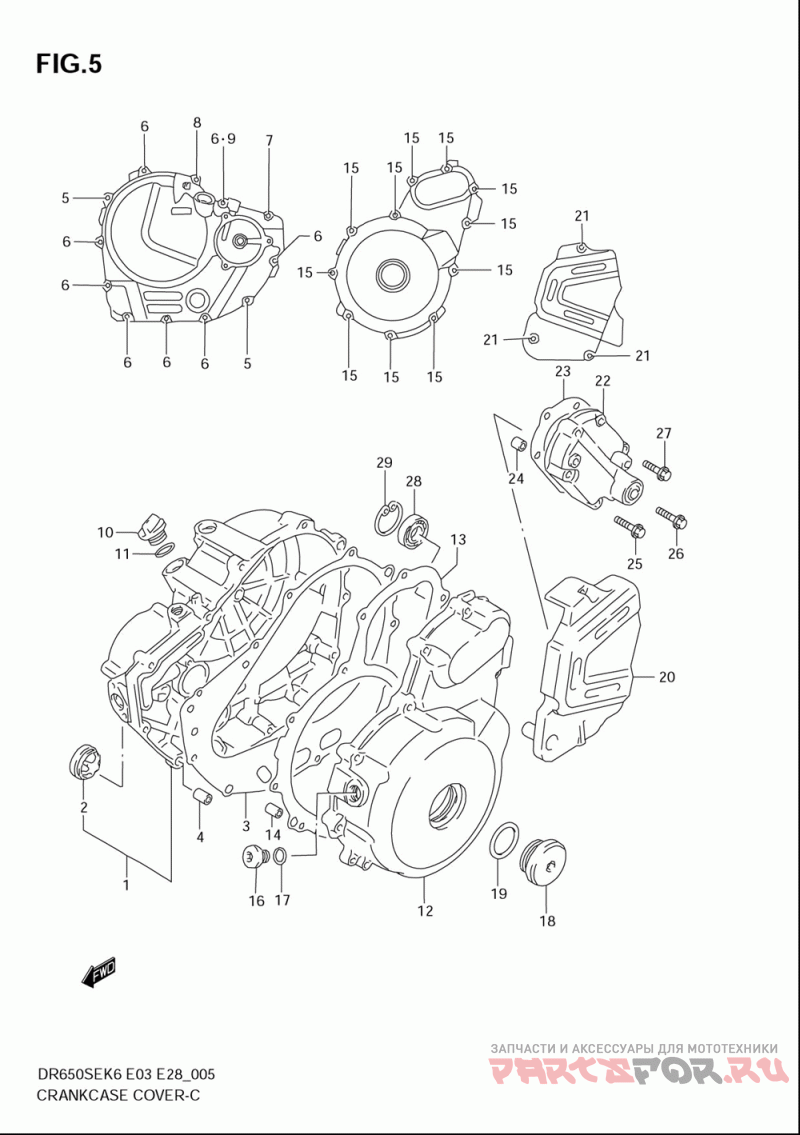

Крышки картера

Suzuki (Америка) DR650SE

Suzuki (Америка)
#oem кодцена
1
11340-32E00
Cover, Clutch ()
2
11971-33210
.lens, Oil Level ()
3
11482-32E00
Gasket, Clutch Cover ()
4
04211-09149
Dowel Pin ()
5
09103-06224
Болт
6
09103-06214
Болт
7
09103-06213
Винт
8
09103-06212
Bolt (6x25) ()
9
09168-06023
Washer, Oil Gallery Exhaust ()
10
09259-20019
Plug (20x10) ()
11
09280-17003
O Ring, Oil Filler Cap ()
12
11351-32E01
Cover, Magneto ()
13
11483-32E00
Gasket ()
16
09248-14005
Plug, Oil Gallery ()
17
09168-14004
.gasket (14.1x18x1.5) ()
18
09259-36016-20H
Plug, Crankshaft Hole ()
19
09280-33004
O Ring (id:32.7, Dd:3.1) ()
20
11361-32E00
Cover, Engine Sprocket ()
22
11371-12D30
Cover, Gear Shift ()
23
11485-12D01
Gasket ()
25-1
01547-0635B
Bolt (model K6)
25-2
01547-0635A
Bolt, Crankcase (6x35) (model K7/k8)
26-1
01547-0630B
Bolt (model K6)
26-2
01547-0630A
Bolt, Magneto Cover (model K7/k8)
27-1
01547-0620B
Bolt, Thermostat Cover (model K6)
27-2
01547-0620A
Bolt (model K7/k8)
28
09262-12001
.bearing ()
29
08331-4128A
Circlip ()
