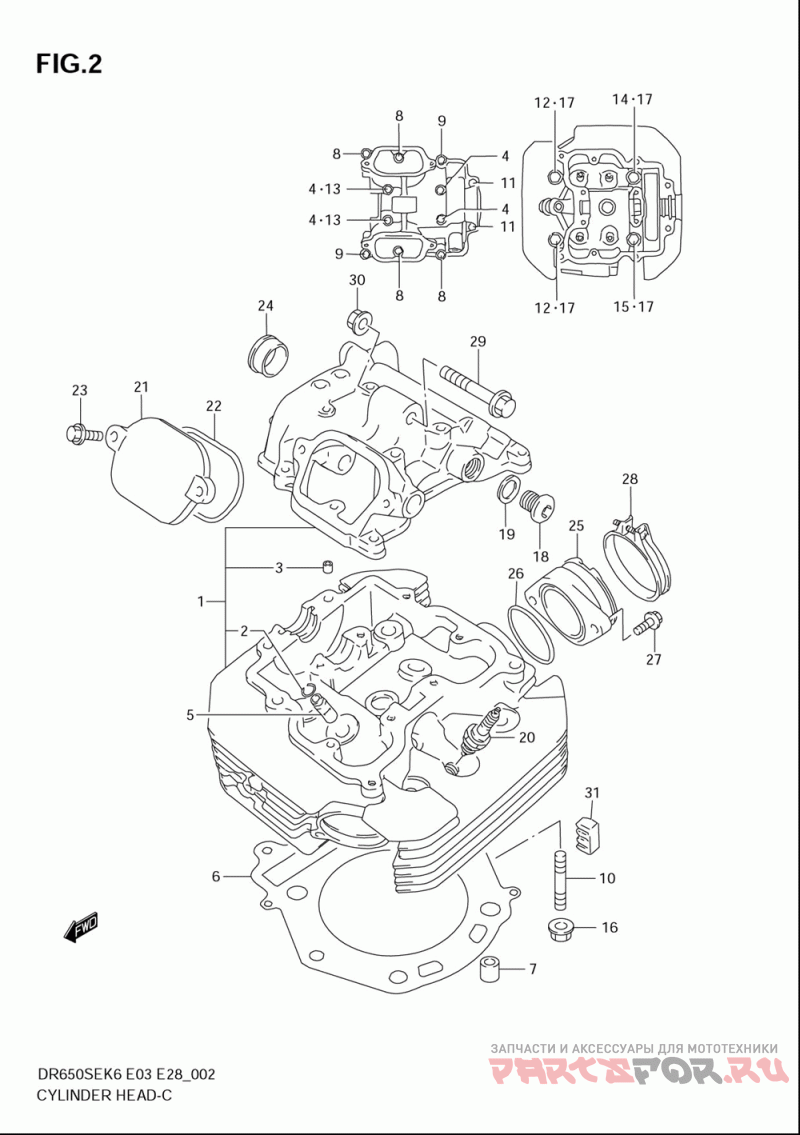

Головка цилиндра для мотоциклов Suzuki (Америка) DR650SE (2008)

Москва и регионы России

Головка цилиндра

Suzuki (Америка) DR650SE

Головка цилиндра

#

oem код

название

цена

1

Head Assy, Cylinder ()

Head Assy, Cylinder ()

2

.snap Ring ()

.snap Ring ()

3

Pin ()

Pin ()

4

.bolt (6x55) ()

.bolt (6x55) ()

5

Guide, Valve (os:0.3) (opt)

Guide, Valve (os:0.3) (opt)

6

Gasket, Cylinder Head ()

Gasket, Cylinder Head ()

7

Pin ()

Pin ()

8

Болт

Болт

9

Болт

Болт

10

Stud Bolt (8x30) ()

Stud Bolt (8x30) ()

11

Bolt (6x115) ()

Bolt (6x115) ()

12

Bolt (10x180) ()

Bolt (10x180) ()

13

Washer, Oil Gallery Exhaust ()

Washer, Oil Gallery Exhaust ()

14

Bolt (10x190) ()

Bolt (10x190) ()

15

Bolt (10x200) ()

Bolt (10x200) ()

16

Гайка

Гайка

17

Gasket ()

Gasket ()

18

Plug, Oil Gallery ()

Plug, Oil Gallery ()

19

.gasket (14.1x18x1.5) ()

.gasket (14.1x18x1.5) ()

20-1

Spark Plug (ngk, Cr10e) ()

Spark Plug (ngk, Cr10e) ()

20-2

Spark Plug (denso, U31esr-n) ()

Spark Plug (denso, U31esr-n) ()

20-3

Spark Plug (ngk, Cr9e) (opt)

Spark Plug (ngk, Cr9e) (opt)

20-4

Spark Plug (nd, U27esr-n) (opt)

Spark Plug (nd, U27esr-n) (opt)

21

Cap, Inspection ()

Cap, Inspection ()

22

O Ring ()

O Ring ()

23

Болт

Болт

24

Plug, Head ()

Plug, Head ()

25

Pipe, Intake ()

Pipe, Intake ()

26

O Ring (d:2.4 Id:45.7) ()

O Ring (d:2.4 Id:45.7) ()

27

Bolt, Gear Shift End ()

Bolt, Gear Shift End ()

28

Clamp, Intake Pipe ()

Clamp, Intake Pipe ()

29

Bolt, Upper ()

Bolt, Upper ()

30-1

Nut (model K6)

Nut (model K6)

30-2

Nut (model K7/k8)

Nut (model K7/k8)

31

Pad, Rubber ()

Pad, Rubber ()
