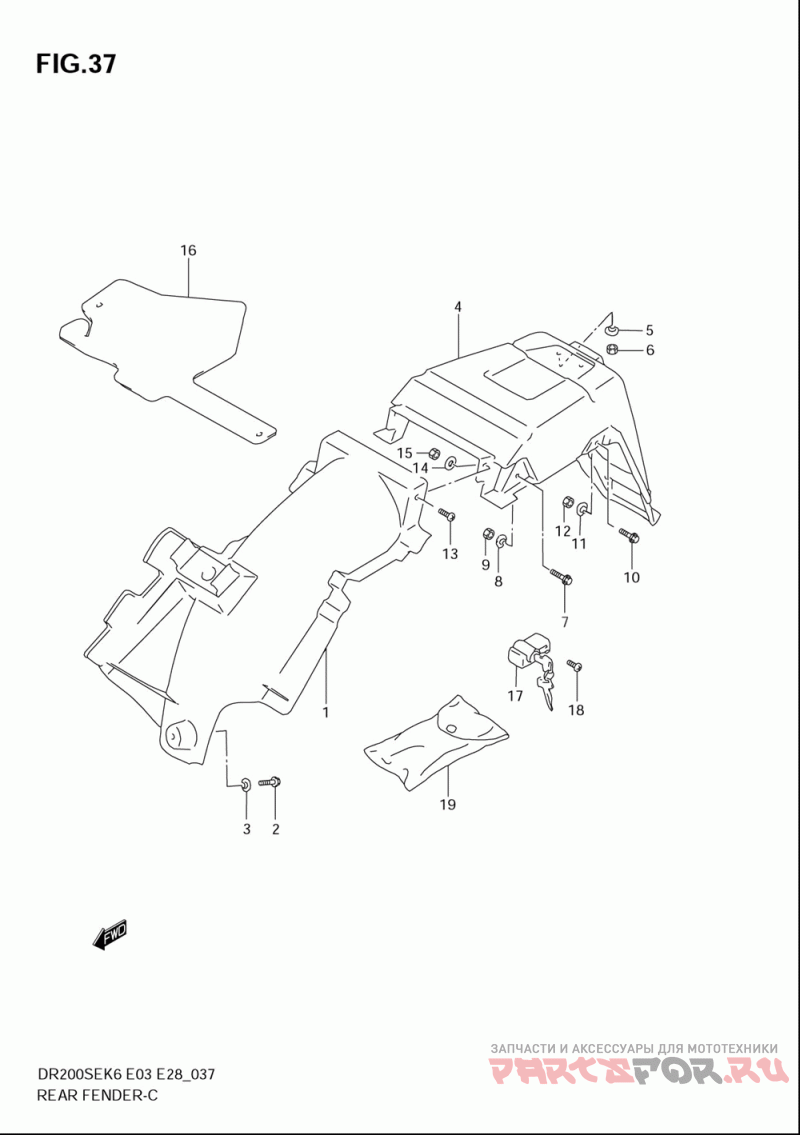

Заднее крыло

Suzuki (Америка) DR200SE

Suzuki (Америка)
#oem кодцена
1-1
63110-44AB0
Body, Rear Fender Front (model K6)
1-2
63110-44AC0
Body, Rear Fender Front (model K7/k8)
2
01550-0612B
Болт
3
09169-06010
Шайба
4-1
63100-44AC0-YU1
Body Assy, Rear Fender (model K6 For Yu1)
4-2
63100-44AC0-YJ4
Body Assy, Rear Fender (blue) (model K6 For N9j)
4-3
63100-44AG0-YU1
Body Assy, Rear Fender (model K7 For Yu1)
4-4
63100-44AG0-YLW
Body Assy, Rear Fender (blue) (model K7 For N9j)
4-5
63100-44AG0-019
Body Assy, Rear (model K8)
5
09169-06055
Шайба
6
08319-3106A
.nut ()
7
09106-08151
Болт
8
09169-08037
Шайба
9
08310-0008B
Гайка
10
01550-0620B
Болт
13
02142-0616B
Screw ()
14
09160-06084
Washer (6.5x18x1.6) ()
16
63411-44AA0
Mud Flap, Rear Fender Front ()
17-1
95700-44821
Lock Set, Helmet (model K6/k7)
18
09139-06089
Винт
19
09800-21022
Tool Set ()
17-1
95700-41821
Lock Set, Helmet (model K6/k7)
