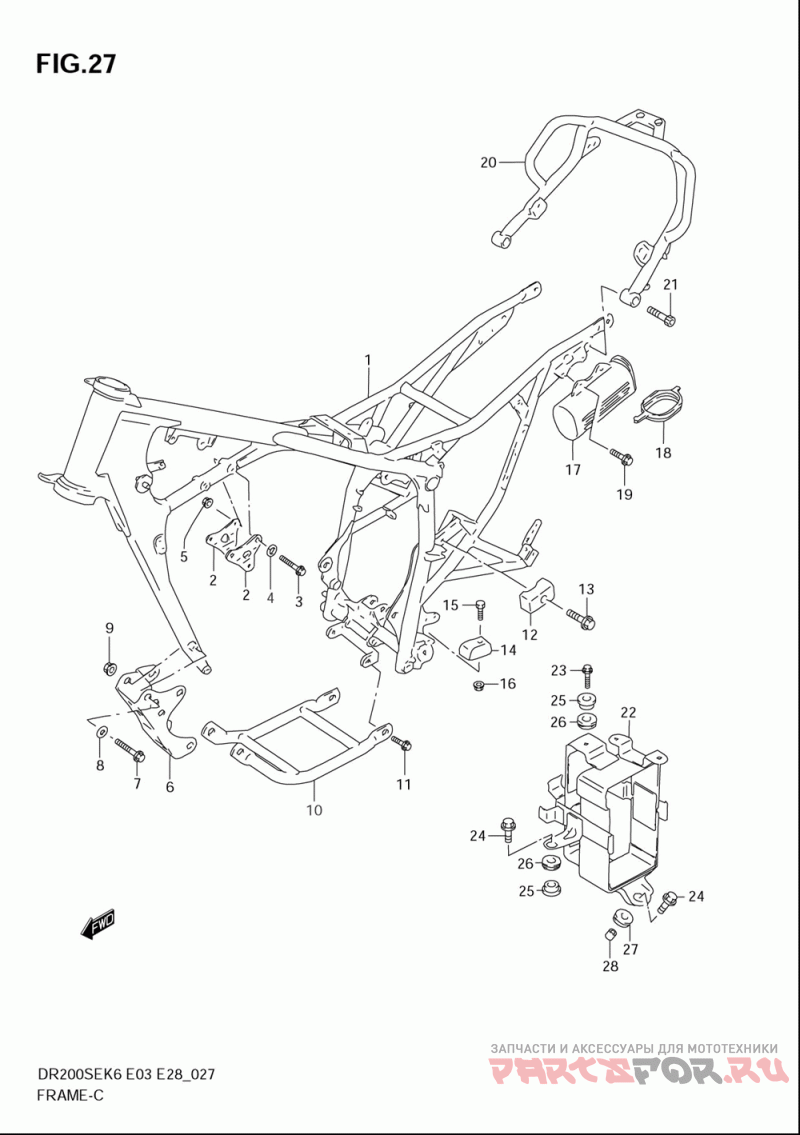

Рама для мотоциклов Suzuki (Америка) DR200SE (2008)

Москва и регионы России

Рама

Suzuki (Америка) DR200SE

Рама

#

oem код

название

цена

1-1

41100-44AD1-YU8

Frame (gray) (model K6/k7)

Frame (gray) (model K6/k7)

1-2

41100-44AL0-YU8

Frame(gray) (model K8 E3, E28)

Frame(gray) (model K8 E3, E28)

1-3

41100-44AP0-YU8

Frame(gray) (model K8 E33)

Frame(gray) (model K8 E33)

2

41991-42A00-291

Plate, Mount, Upper (black) ()

Plate, Mount, Upper (black) ()

3

Bolt, Upper ()

Bolt, Upper ()

5

Гайка

Гайка

6

41992-44AA1-YU8

Plate, Mount Lower (gray) ()

Plate, Mount Lower (gray) ()

7

Bolt (8x65) ()

Bolt (8x65) ()

10

42510-44AA0-YU8

Protector, Engine (gray) ()

Protector, Engine (gray) ()

12

Guide, Chain Upper ()

Guide, Chain Upper ()

13

Болт

Болт

14

Guide, Chain Lower ()

Guide, Chain Lower ()

15

Болт

Болт

16

Гайка

Гайка

17

Holder, Tool ()

Holder, Tool ()

18

.cap ()

.cap ()

19-1

Bolt (6x16) (model K6)

Bolt (6x16) (model K6)

19-2

Bolt (6x16) (model K7/k8)

Bolt (6x16) (model K7/k8)

20

43980-44AB2-YU8

Grip, Rear (gray) ()

Grip, Rear (gray) ()

21

Bolt, Spacer ()

Bolt, Spacer ()

22

Holder, Battery ()

Holder, Battery ()

23

Болт

Болт

24-1

Bolt (model K6)

Bolt (model K6)

24-2

Bolt (6x25) (model K7/k8)

Bolt (6x25) (model K7/k8)

25

Spacer ()

Spacer ()

26

.cushion, 8.5x20x8 ()

.cushion, 8.5x20x8 ()

27

Cushion ()

Cushion ()

28

Spacer, Lower Lh ()

Spacer, Lower Lh ()
