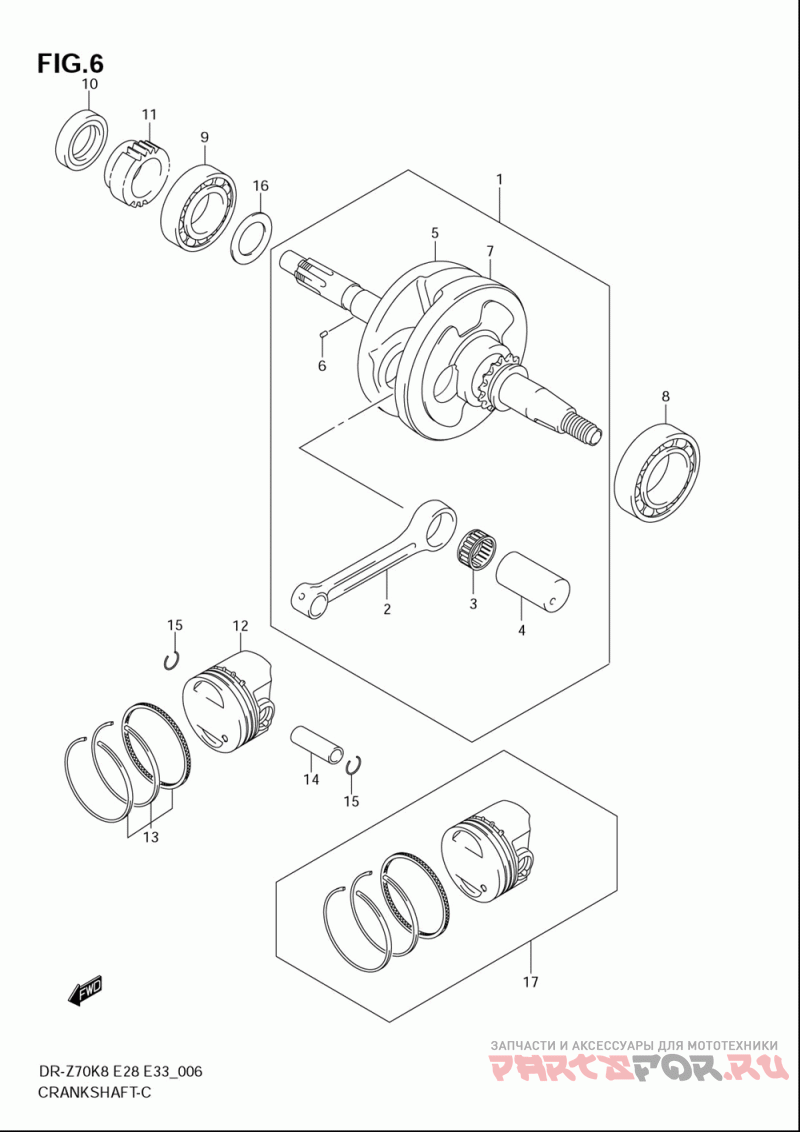

Коленвал для мотоциклов Suzuki (Америка) DR Z70 (2008)

Москва и регионы России

Коленвал

Suzuki (Америка) DR Z70

Коленвал

#

oem код

название

цена

1

Crankshaft Assy ()

Crankshaft Assy ()

2

12161-14H00-0C0

Connrod ()

Connrod ()

4

09263-22072-0B0

Bearing, 22x28x1 ()

Bearing, 22x28x1 ()

5

Crankshaft Comp ()

Crankshaft Comp ()

6

.pin ()

.pin ()

7

Crankshaft Comp ()

Crankshaft Comp ()

8

09262-35021-0A0

Bearing, Lh ()

Bearing, Lh ()

9

Bearing, Drive Shaft, Rh ()

Bearing, Drive Shaft, Rh ()

10

Seal, Oil, 20x32x ()

Seal, Oil, 20x32x ()

11

Gear, Oil Pump D ()

Gear, Oil Pump D ()

12

12111-14H00-0F0

Piston ()

Piston ()

13

Ring Set, Piston ()

Ring Set, Piston ()

14

Pin, Piston ()

Pin, Piston ()

15

Circlip Piston ()

Circlip Piston ()

16-1

Shim, 20x30x0.6 ()

Shim, 20x30x0.6 ()

16-2

()

()

16-3

Shim, 20x30x0.7 ()

Shim, 20x30x0.7 ()

16-4

Shim, 20x30x0.7 ()

Shim, 20x30x0.7 ()

16-5

Shim, 20x30x0.8 ()

Shim, 20x30x0.8 ()

16-6

Shim, 20x30x0.8 ()

Shim, 20x30x0.8 ()

16-7

Shim, 20x30x0.9 ()

Shim, 20x30x0.9 ()

16-8

Shim, 20x30x1.9 ()

Shim, 20x30x1.9 ()

16-9

Washer, 1st Driven ()

Washer, 1st Driven ()

16-10

Shim, 20x30x1.0 ()

Shim, 20x30x1.0 ()

16-11

Shim, 20x30x1.1 ()

Shim, 20x30x1.1 ()

16-12

Shim, 20x30x1.1 ()

Shim, 20x30x1.1 ()

16-13

Shim, 20x30x1.2 ()

Shim, 20x30x1.2 ()

16-14

Shim, 20x30x1.2 ()

Shim, 20x30x1.2 ()

16-15

Shim, 20x30x1.3 ()

Shim, 20x30x1.3 ()

17

12100-14H00-050

Piston Set, Os 0 (opt)

Piston Set, Os 0 (opt)
