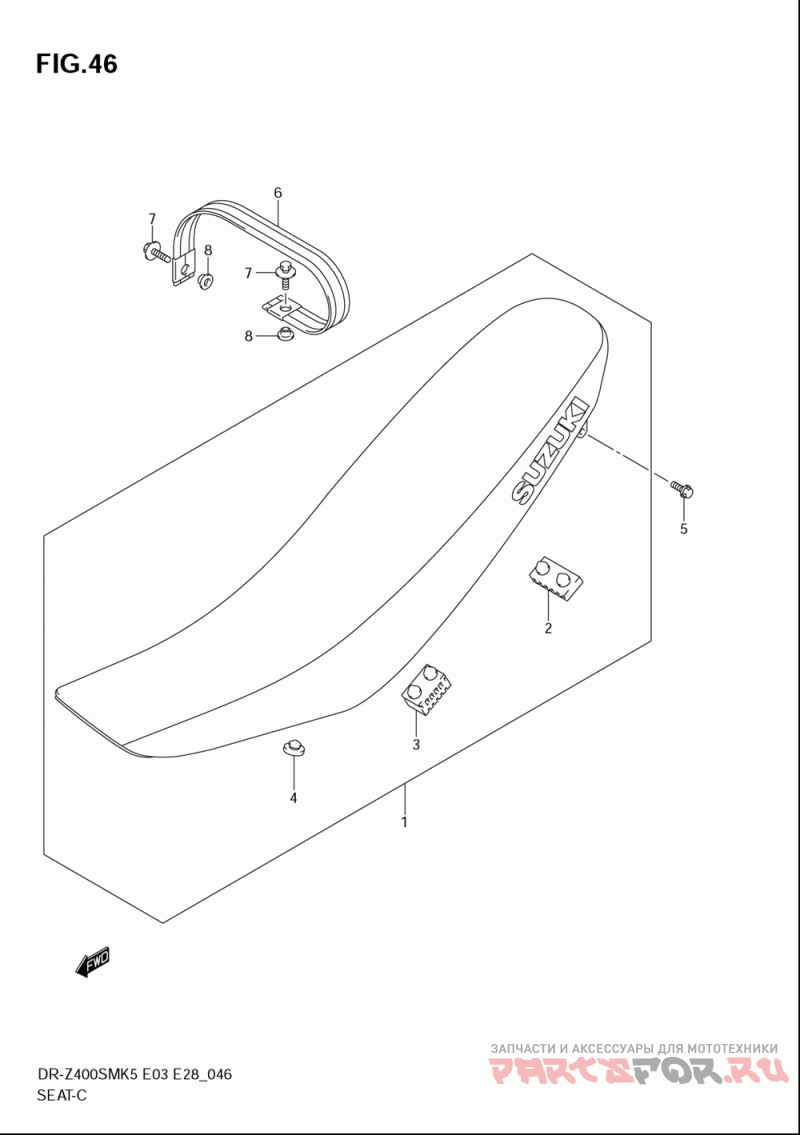

Сидение для мотоциклов Suzuki (Америка) DR Z400SM (2008)

Москва и регионы России

Сидение

Suzuki (Америка) DR Z400SM

Сидение

#

oem код

название

цена

1-1

45100-29FE0-BAE

Seat Assy (model K5 For Yu1)

Seat Assy (model K5 For Yu1)

1-2

45100-29FE0-BYD

Seat Assy (model K5/k6 For 019)

Seat Assy (model K5/k6 For 019)

1-3

45100-29FE0-CEP

Seat Assy (model K6 For Yu1)

Seat Assy (model K6 For Yu1)

1-5

45100-29FE0-DTU

Seat Assy (model K7 For Yu1)

Seat Assy (model K7 For Yu1)

1-6

45100-29FE0-DTV

Seat Assy (model K7 For 019)

Seat Assy (model K7 For 019)

1-8

45100-29FE0-DUZ

Seat Assy (model K8 For 30h)

Seat Assy (model K8 For 30h)

2

.cushion, Front/rear (40x20x6 ()

.cushion, Front/rear (40x20x6 ()

3

.cushion, Center (40x20x15) ()

.cushion, Center (40x20x15) ()

4

.cushion ()

.cushion ()

5

.bolt (6x20) ()

.bolt (6x20) ()

6-1

45180-29F00-P21

Band Assy, Seat (model K5 For Yu1)

Band Assy, Seat (model K5 For Yu1)

6-2

45180-29F00-T5N

Band Assy, Seat (model K5/k6 For 019)

Band Assy, Seat (model K5/k6 For 019)

6-3

45180-29F00-T7G

Band Assy, Seat (model K6 For Yu1)

Band Assy, Seat (model K6 For Yu1)

6-5

45180-29F00-U5J

Band Assy, Seat (model K7 For Yu1)

Band Assy, Seat (model K7 For Yu1)

7

Болт

Болт

8

Washer, Seat Band ()

Washer, Seat Band ()
