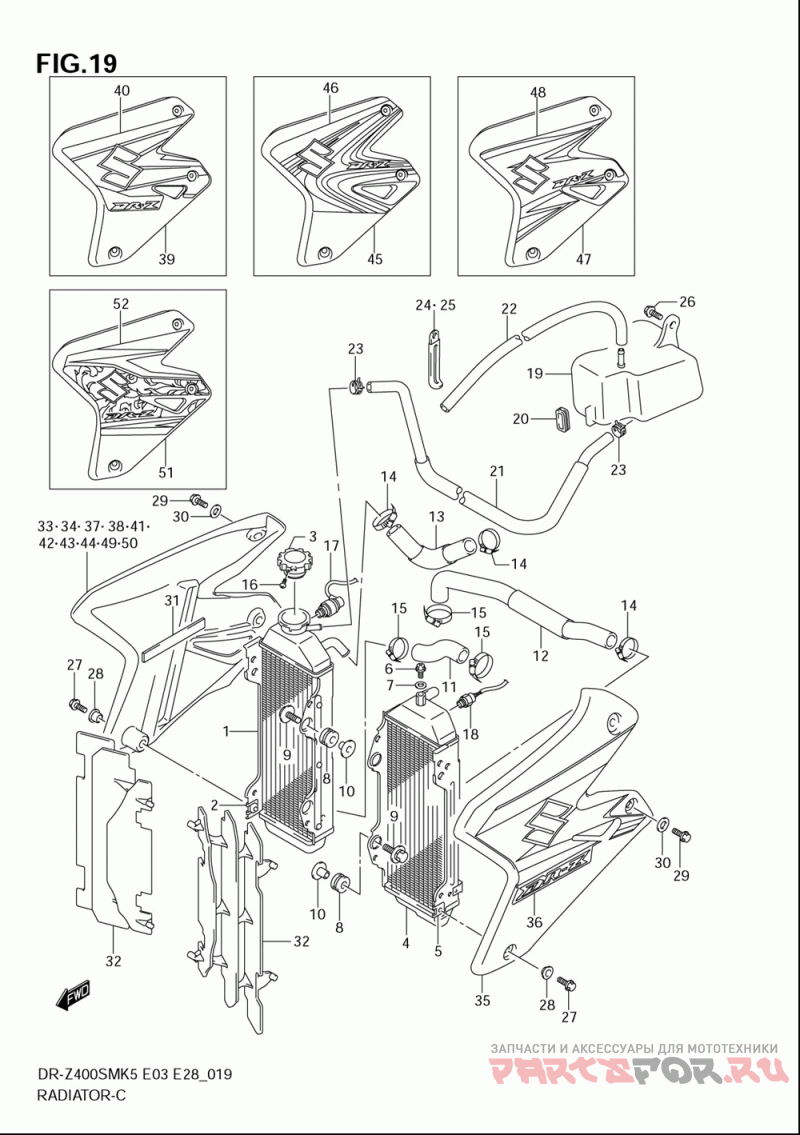

Радиатор

Suzuki (Америка) DR Z400SM

Suzuki (Америка)
#oem кодцена
1-1
17710-29F40
Radiator,water, (model K5/k6/k7)
2
09148-06015
Гайка
3
17730-19D11
Cap, Radiator 1.1 ()
4-1
17720-29F40
Radiator Comp, W (model K5/k6/k7)
6
17568-50F00
Bolt, Air Release ()
7
09168-06026
Gasket, Drain Bolt ()
8
17787-19A00
Cushion, Support ()
9
09116-06147
Болт
10
09180-06243
Spacer ()
11
17851-29F10
Hose, Inlet ()
12
17852-29F30
Hose, Outlet ()
13
17853-29F10
Hose, Joint Upper ()
14
09402-28513
Clamp ()
15
09402-32512
Clamp ()
16
17733-03D10
Screw, Radiator Cap ()
17-1
34850-03D00
Switch Assy, Water Temp (model K5/k6/k7)
17-2
34850-29F00
Switch Assy, Wat (model K8)
18
17680-24A30
Switch, Fan ()
19
17911-29F11
Tank, Reservoir ()
20
17913-29F00
Cushion, Reservoir Tank ()
21
17981-29F01
Hose, Inlet ()
22
09352-50901-00B
Hose, Tank Inlet (l:2000->650)
23
09401-08411
Clip ()
24
09404-08205
Clamp L:62 ()
25
09404-06432
.clamp, Sw Leads ()
26
01550-0612B
Болт
27
09103-06274
Screw, Radiator Side ()
28
09169-06053
Washer, Ca Holder (6.3x16x1) ()
29
09103-06275
Screw, Tank Side ()
30
09160-06125
Шайба
31
47451-38A01
Cushion, Radiator Cover ()
32
17831-37E11
Louver, Radiator ()
33-1
17760-29F80-019
Cover, Radiator Rh (black) (model K5)
33-2
17760-29F70-YU1
Cover, Radiator, Rh (yellow) (model K5)
34-1
68665-29F80-BYL
.tape, Radiator Cover Rh (model K5for 019)
34-2
68665-29F70-YHB
.tape, Radiator Cover, Rh (model K5for Yu1)
35-1
17770-29F80-019
Cover, Radiator Lh (black) (model K5)
35-2
17770-29F70-YU1
Cover, Radiator, Lh (yellow) (model K5)
36-1
68675-29F80-BYL
.tape, Radiator Cover Lh (model K5for 019)
36-2
68675-29F70-YHB
.tape, Radiator Cover, Lh (model K5for Yu1)
37-1
17760-29F90-019
Cover, Radiator Rh (black) (model K6)
37-2
17760-29F90-YU1
Cover, Radiator, Rh (yellow) (model K6)
38-1
68665-29F90-CNN
.tape, Radiator Cover Rh (model K6for 019)
38-2
68665-29F90-CET
.tape, Radiator Cover, Rh (model K6for Yu1)
39-1
17770-29F90-019
Cover, Radiator Lh (black) (model K6)
39-2
17770-29F90-YU1
Cover, Radiator, Lh (yellow) (model K6)
40-1
68675-29F90-CNN
.tape, Radiator Cover Lh (model K6for 019)
40-2
68675-29F90-CET
.tape, Radiator Cover, Lh (model K6for Yu1)
41-1
17760-29FB0-019
Cover, Radiator Rh (black) (model K7for 019)
42-1
68665-29FB0-DVU
.tape, Radiator Cover Rh (model K7for 019)
43
17760-29FA0-YU1
Cover, Radiator, Rh (yellow) (model K7for Yu1)
44
68665-29FA0-DRA
.tape, Radiator Cover, Rh (model K7for Yu1)
45-1
17770-29FB0-019
Cover, Radiator Lh (black) (model K7for 019)
46-1
68675-29FB0-DVU
.tape, Radiator Cover Lh (model K7for 019)
47
17770-29FA0-YU1
Cover, Radiator, Lh (yellow) (model K7for Yu1)
48
68675-29FA0-DRA
.tape, Radiator Cover, Lh (model K7for Yu1)
49-1
17760-29FE0-30H
Cover Comp, Radi (model K8)
49-2
17760-29FF0-019
Cover Comp, Radi (model K8)
50-1
68665-29FE0-FCS
Tape, Radiator C (model K8for 30h)
50-2
68665-29FF0-FCN
Tape, Radiator C (model K8for 019)
51-1
17770-29FE0-30H
Cover Comp, Radi (model K8)
51-2
17770-29FF0-019
Cover Comp, Radi (model K8)
52-1
68675-29FE0-FCS
Tape, Radiator C (model K8for 30h)
52-2
68675-29FF0-FCN
Tape, Radiator C (model K8for 019)
