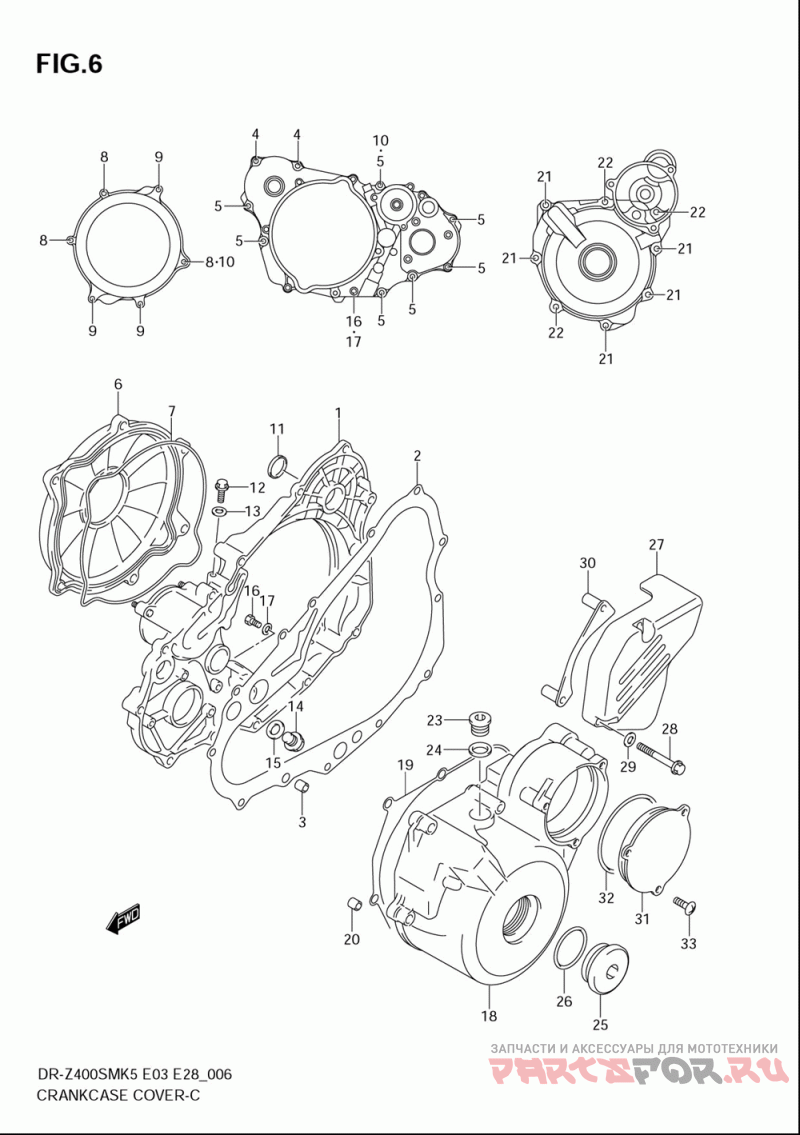

Крышки картера

Suzuki (Америка) DR Z400SM

Suzuki (Америка)
#oem кодцена
1
11341-29F50
Cover, Clutch Inner ()
2
11482-29F00
Gasket, Clutch Cover ()
3
04211-09149
Dowel Pin ()
4-1
01547-0620B
Bolt, Thermostat Cover (model K5/k6)
4-2
01547-0620A
Bolt (model K7/k8)
5-1
01547-0630B
Bolt (model K5/k6)
5-2
01547-0630A
Bolt, Magneto Cover (model K7/k8)
6
11371-29F50
Cover, Clutch Outer ()
7
11484-29F00
O Ring, Clutch Outer Cover ()
9-1
01547-0655B
Bolt (model K5/k6)
9-2
01547-0655A
.bolt (model K7/k8)
10
09168-06023
Washer, Oil Gallery Exhaust ()
11
11342-15D00
Plug, Clutch Cover Kick ()
12-1
01547-0612B
Bolt 6x12 Blk 8 (model K5/k6)
12-2
01547-0612A
Bolt, Push Rod Guide (model K7/k8)
14
09247-12006
Plug, Oil Level ()
15
09168-12002
Gasket, Oil Level Plug ()
16-1
01550-0610B
Bolt (model K5/k6)
16-2
01550-0610A
Bolt (model K7/k8)
17
09168-06004
Gasket (6.2x11x1.2) ()
18
11351-29F60
Cover, Magneto ()
19
11483-29F00
Gasket, Magneto Cover ()
22-1
01547-0640B
Bolt (model K5/k6)
22-2
01547-0640A
Bolt (model K7/k8)
23
09248-14005
Plug, Oil Gallery ()
24
09168-14004
.gasket (14.1x18x1.5) ()
25
09259-36016-20H
Plug, Crankshaft Hole ()
26
09280-33004
O Ring (id:32.7, Dd:3.1) ()
27
11360-29F50
Cover, Engine Sprocket ()
28-1
01547-0650B
Bolt (model K5/k6)
28-2
01547-0650A
Bolt (model K7/k8)
29
09160-06126
Washer (6.5x14x2) ()
30
27640-29F11
Plate, Front Chain Guide ()
31
11352-29F50
Cover, Starter Idle Gear ()
32
09280-71008
O Ring (d:2.6, Id:67.1) ()
33-1
02142-0616B
Screw (model K5/k6)
33-2
02142-0616A
Screw (model K7/k8)
