Картер для мотоциклов Suzuki (Америка) DR Z400SM (2008)

Москва и регионы России

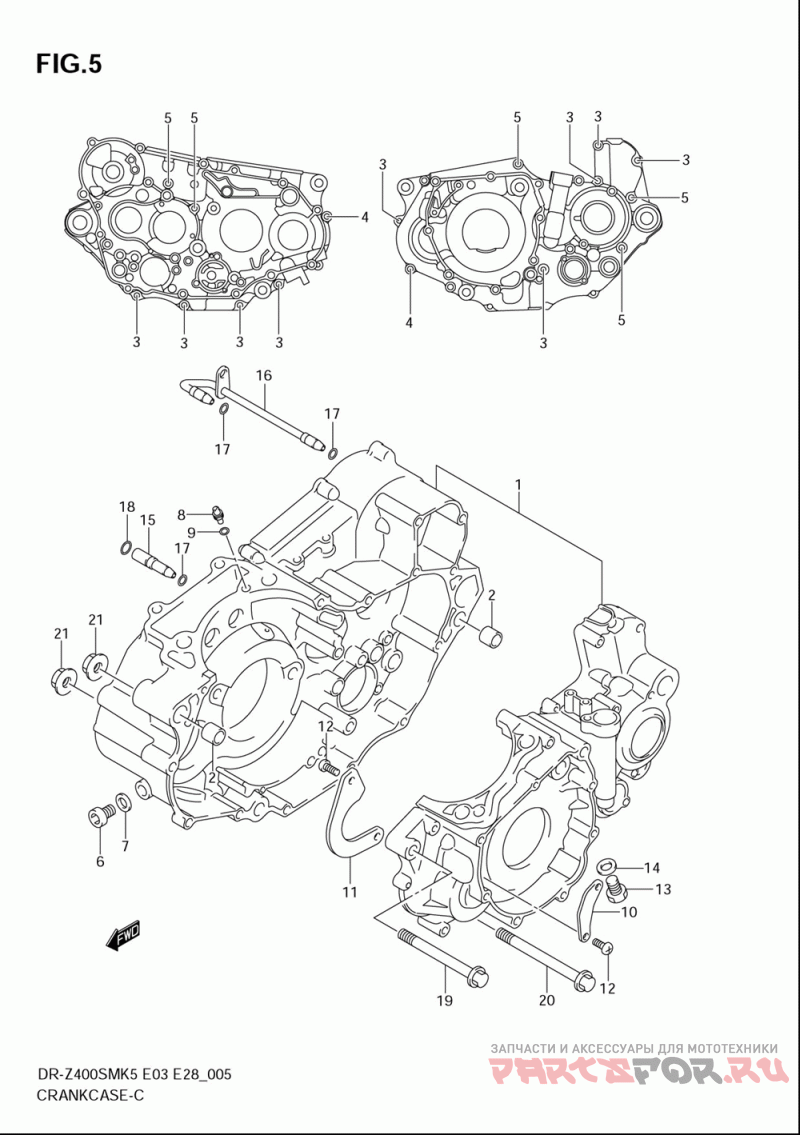

Картер

Suzuki (Америка) DR Z400SM

Картер

#

oem код

название

цена

1-1

Crankcase Set (model K5)

Crankcase Set (model K5)

2

Pin ()

Pin ()

3-1

Bolt (model K5/k6)

Bolt (model K5/k6)

3-2

Bolt (model K7/k8)

Bolt (model K7/k8)

4-1

Bolt (model K5/k6)

Bolt (model K5/k6)

4-2

.bolt (model K7/k8)

.bolt (model K7/k8)

5-1

Bolt (model K5/k6)

Bolt (model K5/k6)

5-2

Bolt (model K7/k8)

Bolt (model K7/k8)

6

Plug, Oil Gallery ()

Plug, Oil Gallery ()

7

Gasket, Oil Gallery Plug ()

Gasket, Oil Gallery Plug ()

8

Jet, Oil Gallery ()

Jet, Oil Gallery ()

9

O Ring, Oil Gallery Jet ()

O Ring, Oil Gallery Jet ()

10

.separator, Oil No.1 ()

.separator, Oil No.1 ()

11

.separator, Oil No.2 ()

.separator, Oil No.2 ()

12-1

.screw, 6x12 (model K5)

.screw, 6x12 (model K5)

12-2

Screw, Shift Cam (6x12) (model K6/k7/k8)

Screw, Shift Cam (6x12) (model K6/k7/k8)

13

Plug ()

Plug ()

14

Gasket, Oil Level Plug ()

Gasket, Oil Level Plug ()

15

Pipe, Oil Inner No.1 ()

Pipe, Oil Inner No.1 ()

16

Pipe, T/m Oil Inner No.2 ()

Pipe, T/m Oil Inner No.2 ()

17

.o Ring (d:1.9, D:4.8) ()

.o Ring (d:1.9, D:4.8) ()

18

O Ring (d:1.9, Id:6.8) ()

O Ring (d:1.9, Id:6.8) ()

19

Bolt (10x100) ()

Bolt (10x100) ()

20

Bolt, Muffler Bracket & Cvt ()

Bolt, Muffler Bracket & Cvt ()

21-1

Nut (model K5/k6/k7)

Nut (model K5/k6/k7)
