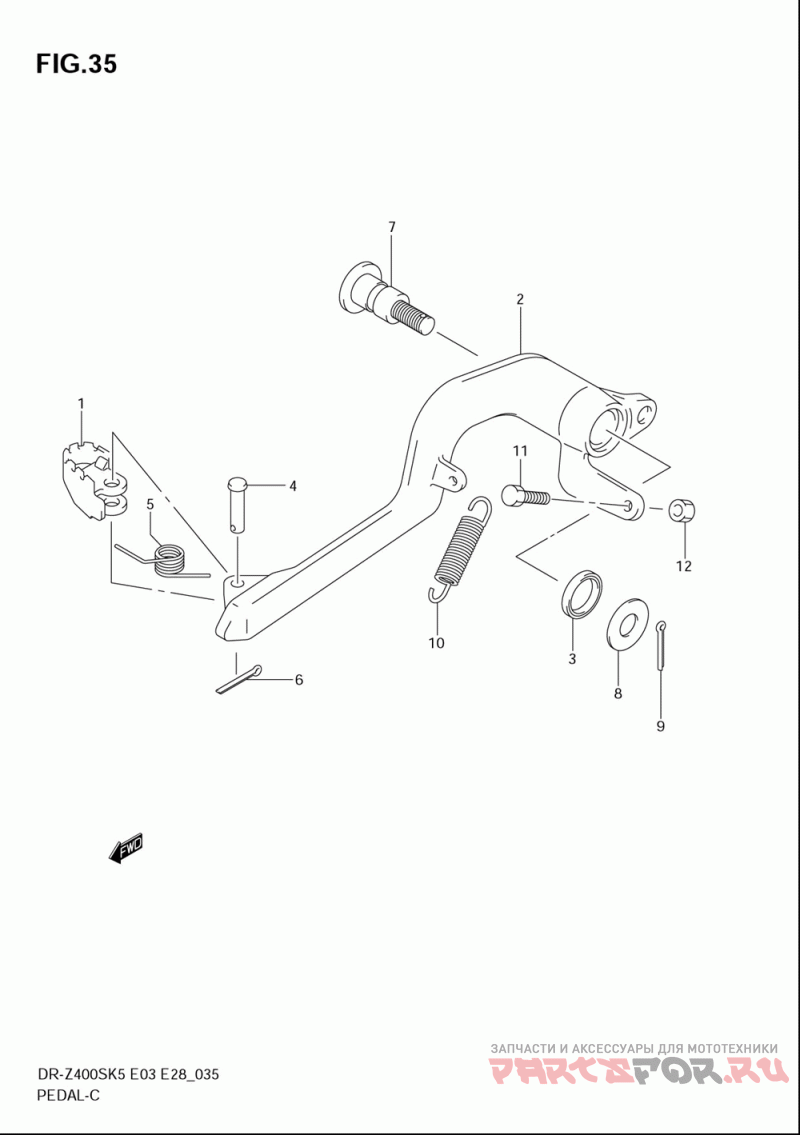

Задний тормоз
Suzuki (Америка) DR Z400S
| # | oem код | название | цена |
|---|---|---|---|
1 | 43110-43D00 Pedal, Brake () | Pedal, Brake () | |
2 | 43120-29F10 Arm, Brake Pedal () | Arm, Brake Pedal () | |
3 | 09284-15006 .oil Seal () | .oil Seal () | |
4 | 09200-06062 Pin () | Pin () | |
5 | 09444-11006 Spring () | Spring () | |
6 | 04111-20158 Cotter Pin () | Cotter Pin () | |
7 | 43142-27C00 Shaft, Brake Pedal () | Shaft, Brake Pedal () | |
8 | 08211-10261 Шайба | Шайба | |
9 | 04111-2020A Cotter Pin () | Cotter Pin () | |
10 | 09443-11033 Spring, Pedal Return () | Spring, Pedal Return () | |
11 | () | ||
12 | 08310-0006A Nut, No.1 () | Nut, No.1 () |
