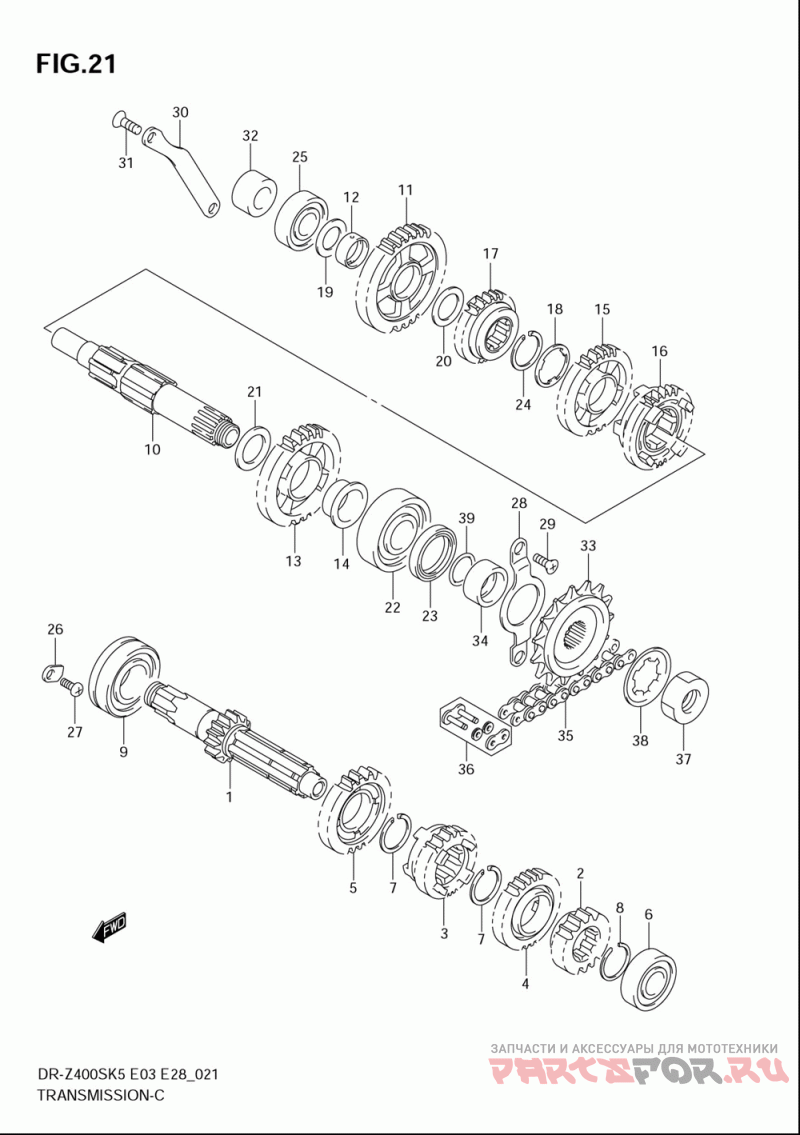

Трансмиссия

Suzuki (Америка) DR Z400S

Suzuki (Америка)
#oem кодцена
1
24120-05D20
Shaft, Counter (nt:14) ()
2
24221-28C20
Gear, 2nd Drive (nt:15) ()
3
24231-05D02
Gear, 3rd Drive (nt:16) ()
4
24241-05D01
Gear, 4th Drive (nt:22) ()
5
24251-05D00
Gear, 5th Drive (nt:22) ()
6
09262-17027
Bearing, Cntr Shaft Lh (17x40x12)
7
09380-25010
Circlip ()
8
09380-25013
Circlip, 2nd Drive ()
9
09262-25003
.bearing (25x52x15) (25x52x15)
10
24130-05D20
Drive Shaft ()
11
24311-05D00
Gear, 1st Driven (nt:32) ()
12
24312-29F00
Bush, 1st Driven ()
13
24321-28C02
Gear, 2nd Driven (nt:26) ()
14
24322-44E10
Bush, 2nd Driven ()
15
24331-05D01
Gear, 3rd Driven (nt:22) ()
16
24341-05D01
Gear, 4th Driven (nt:24) ()
17
24351-05D20
Gear, 5th Driven (nt:19) ()
18
09167-25012
Шайба
19
09181-17223
Washer, 1st Driven, Rh (17x30x1.0)
20
09181-20195
Washer, 1st Driven (20x30x1.0)
21
09181-22223
Washer, 1st Driven Lh (22x34x1.0)
22
09262-22024
Bearing, Drive Shaft, Lh (22x56x16)
23
09283-30053
Seal, Drive Shaft Oil (30x40x6)
25
09262-17023
.bearing, Crankshaft Lower (17x40x12)
26
24741-21A00
Retainer, Shift Cam Bearing ()
27
09125-06110
Screw, Shift Cam (6x12) ()
28
24751-29F00
Retainer, Drive Shaft Oil Sea ()
29
09126-06007
Bolt, Retainer (6x14) ()
30
26264-29F00
Retainer, Kick Idle ()
31
02122-0616A
Винт
32
09180-17055
Spacer, Kick Idle (17x30.5x16.3)
33
27510-29E10
Sprocket, Engine (nt:15) ()
34
27531-29F00
Spacer, Engine Sprocket ()
35
27600-29F10-112
Chain Assy, Drive ()
36
27620-29F10
Joint Set, Chain (opt)
37
09140-18006
Nut, Engine Sprocket ()
38
09167-22012
Шайба
39
09280-21008
O Ring (d:2.5, Id:21) ()
