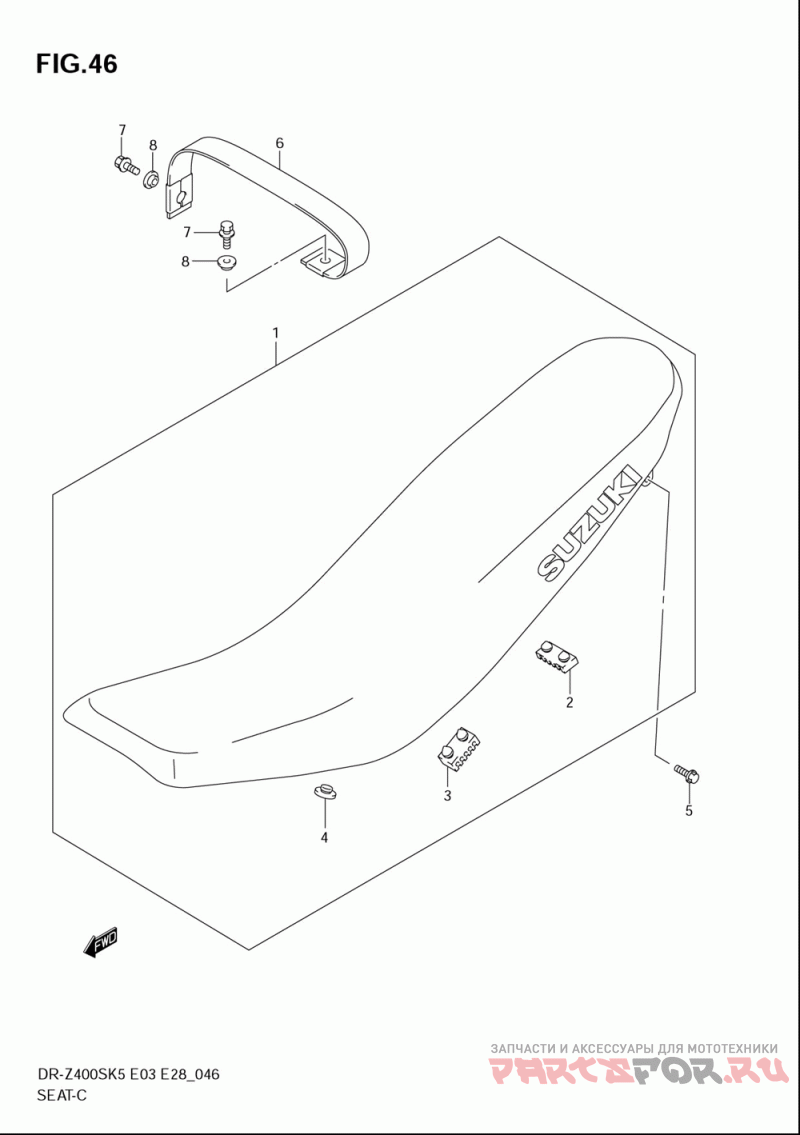

Сидение

Suzuki (Америка) DR Z400S

Suzuki (Америка)
#oem кодцена
1-1
45100-29FB0-BAE
Seat Assy (model K5 For Yu1)
1-2
45100-29FB0-BDL
Seat Assy (model K5/k6 For N9j)
1-3
45100-29FB0-CEP
Seat Assy (model K6 For Yu1)
1-4
45100-29FB0-DTU
Seat Assy (model K7 For Yu1)
1-5
45100-29FB0-DTV
Seat Assy (model K7 For N9j)
1-6
45100-29FB0-BYD
Seat Assy,high, (model K8 For 019)
2
45149-12C00
.cushion, Front/rear (40x20x6 ()
3
45149-31300
.cushion, Center (40x20x15) ()
4
09321-10022
.cushion ()
5-1
01550-0620A
Bolt (model K5)
5-2
09116-06182
.bolt (6x20) (model K6/k7/k8)
6-1
45180-29F00-P21
Band Assy, Seat (model K5model K6/k7 For N9j)
6-2
45180-29F00-T7G
Band Assy, Seat (model K6 For Yu1)
6-3
45180-29F00-U5J
Band Assy, Seat (model K7 For Yu1)
6-4
45180-29F00-T5N
Band Assy, Seat (model K8 For 019)
7
09116-06150
Болт
8
09169-06063
Washer, Seat Band ()
