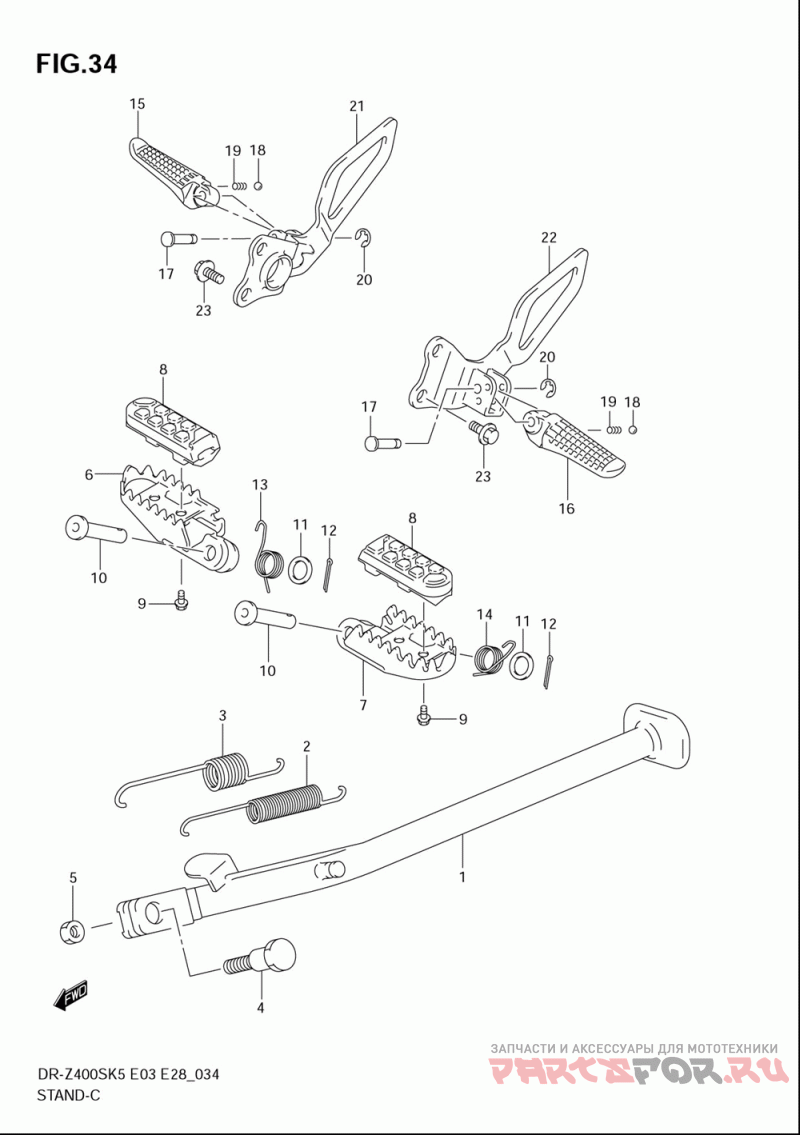

Подножка для мотоциклов Suzuki (Америка) DR Z400S (2008)

Москва и регионы России

Подножка

Suzuki (Америка) DR Z400S

Подножка

#

oem код

название

цена

1

Stand, Prop ()

Stand, Prop ()

2

Spring, Inner ()

Spring, Inner ()

3

Spring, Outer ()

Spring, Outer ()

4

Болт

Болт

5

Гайка

Гайка

6

Footrest, Rh ()

Footrest, Rh ()

7

Footrest, Lh ()

Footrest, Lh ()

8

Rubber ()

Rubber ()

9

Болт

Болт

10

Pin ()

Pin ()

11

Washer, Knuckle End ()

Washer, Knuckle End ()

12

Citter Pin ()

Citter Pin ()

13

Spring, Rh ()

Spring, Rh ()

14

Spring, Lh ()

Spring, Lh ()

15

Bar, Pillion Footrest Rh ()

Bar, Pillion Footrest Rh ()

16

Bar, Pillion Footrest Lh ()

Bar, Pillion Footrest Lh ()

17

.pin ()

.pin ()

18

Ball, Detent No.1 ()

Ball, Detent No.1 ()

19

Пружина

Пружина

20

E Ring ()

E Ring ()

21-1

Bracket, Pillion Rh (model K5/k6/k7)

Bracket, Pillion Rh (model K5/k6/k7)

21-2

Bracket Comp, Pi (model K8)

Bracket Comp, Pi (model K8)

22

Bracket, Pillion Lh ()

Bracket, Pillion Lh ()

23

Plug, T/m Oil Drain ()

Plug, T/m Oil Drain ()
