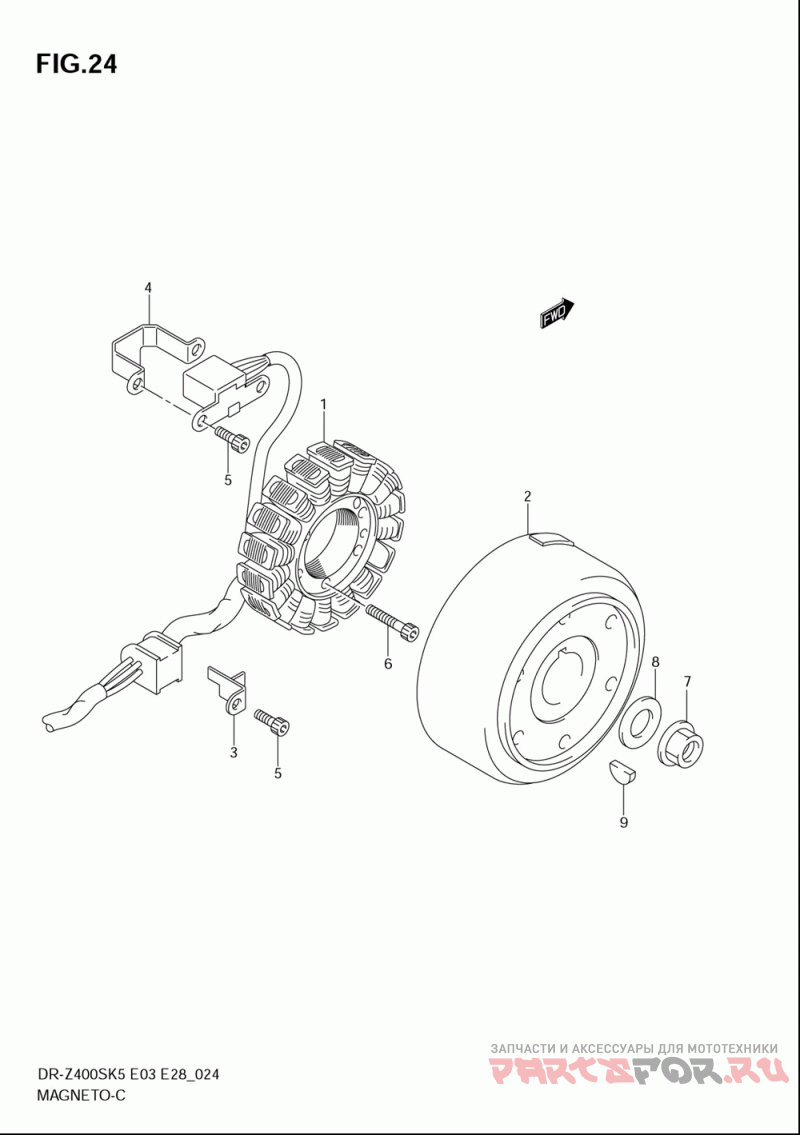

Генератор
Suzuki (Америка) DR Z400S
| # | oem код | название | цена |
|---|---|---|---|
1 | 32101-29F00 Stator Assy () | Stator Assy () | |
2 | 32102-29F00 Rotor Assy () | Rotor Assy () | |
3 | 32371-13E00 Clamp, Magneto () | Clamp, Magneto () | |
4 | 32371-14D01 Clamp, Mag Pulser Lead () | Clamp, Mag Pulser Lead () | |
5 | 07130-0512B Bolt, Sensor () | Bolt, Sensor () | |
6 | 07130-0525B Bolt, Stator () | Bolt, Stator () | |
7 | 09159-12055 Гайка | Гайка | |
8 | 09160-12051 Washer (12x27x2) () | Washer (12x27x2) () | |
9 | 09420-04008 Key () | Key () |
