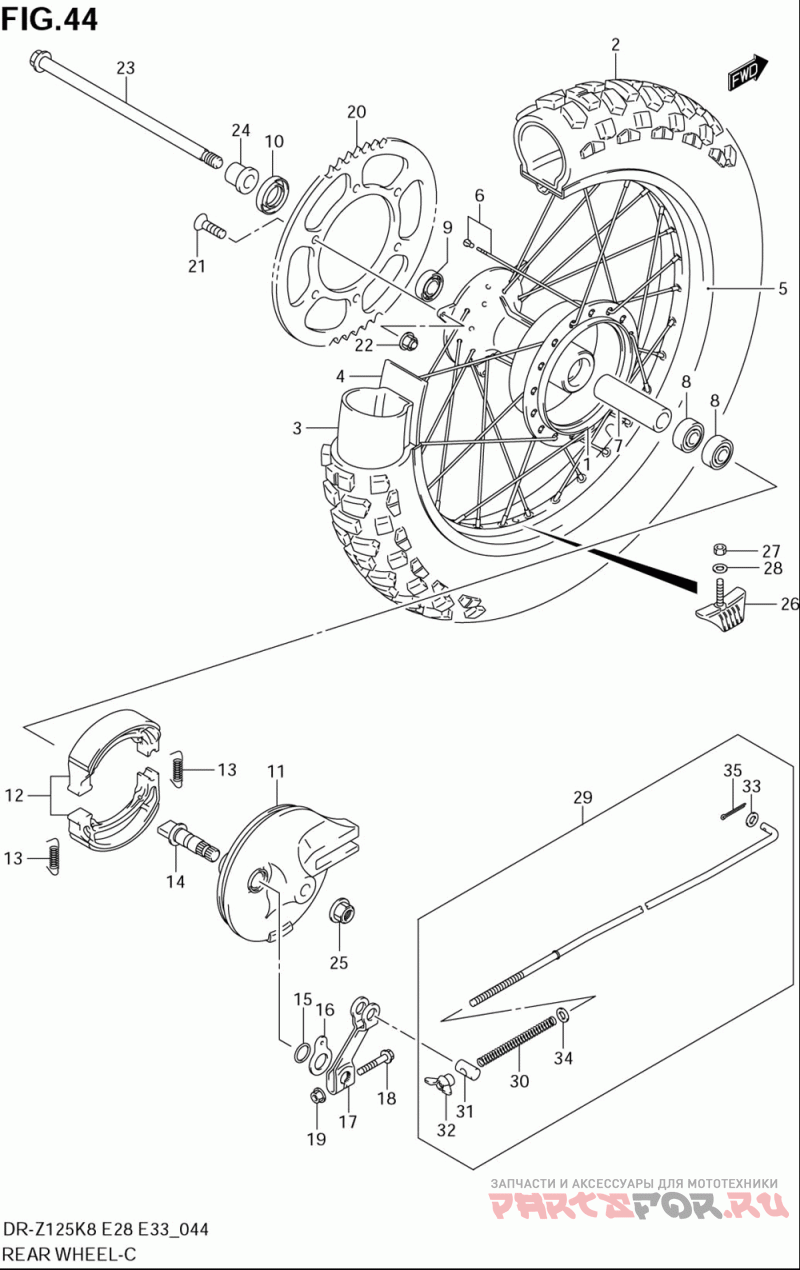

Rear wheel (dr-z125) для мотоциклов Suzuki (Америка) DR Z125 (2008)

Rear wheel (dr-z125)

Suzuki (Америка) DR Z125

oem код

название

цена

64110-08G10

Hub, Rear Wheel ()

65110-08G00

Tire, Rear, 90/100-14 Irc ()

65200-08G00

Tube Assy, Wheel Inner ()

55261-09D00

Protector, Whl I ()

65311-08G20

Rim, Rear Wheel (14x1.60) ()

65320-08G20

Spoke Set, Rear Wheel ()

09180-12151

Spacer (12.5x19x95.5) ()

08143-62017

Bearing, Rh ()

08123-63017

Bearing, Lh ()

09283-20025

Seal, Rear Hub Bearing ()

64210-08G00

Panel, Rear Brake Anchor ()

Shoe Set, Brake ()

Spring ()

Cam, Brake ()

O Ring (d:2.5, Id:13.8) ()

54492-13G00

Plate, Brake Lining Indicator ()

64451-08G00

Lever, Rear Brake Cam ()

01550-0635A

Болт

08316-1006A

Гайка

64511-08G00

Sprocket, Rear (nt:51) ()

Screw (8x30.5) ()

Гайка

Axle, Rear ()

Spacer, Axle ()

Гайка

Stopper, Bead ()

Гайка

Washer, Seat Damper Upper ()

43300-08G00

Rod Assy, Rear Brake ()

Пружина

.pin ()

.nut ()

Washer ()

Шайба

Cotter Pin ()
