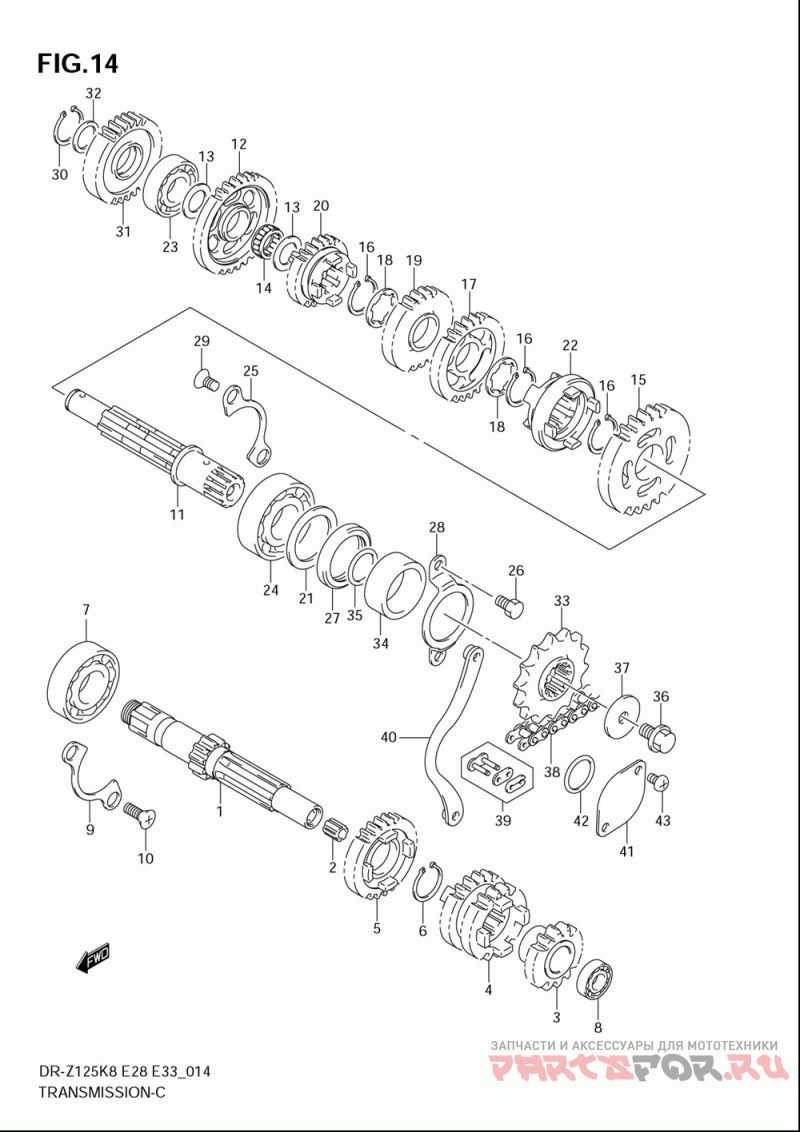

Трансмиссия

Suzuki (Америка) DR Z125

Suzuki (Америка)
#oem кодцена
1
24120-05810
Shaft, Counter (nt:11) ()
2
24125-38201
Bush ()
3
24221-05301
Gear, 2nd Drive (nt:14) ()
4
24231-05203
Gear, 3rd/4th Dr (nt:19/21) ()
5
24251-05212
Gear, 5th Drive (nt:26) ()
6
09380-20009
Circlip ()
7
09262-20069
Bearing, Counter Shaft Rh ()
8
08123-60027
Bearing ()
9
24741-05200
Retainer, Drive Shaft Bearing ()
10
09126-06011
Винт (м6x12)
11
24130-44A00
Shaft, Drive ()
12
24311-05202
Gear, 1st Driven (nt:33) ()
13
08211-15251
Thrust Washer ()
14
09263-15023
Bearing (15x19x7.8) ()
15
24320-05202
Gear, 2nd Driven (nt:26) ()
17
24331-05203
Gear, 3rd Driven (nt:26) ()
18
09167-20011
Lock Washer ()
19
24341-05203
Gear, 4th Driven (nt:23) ()
20
24351-05211
Gear, 5th Driven (nt:24) ()
21
24359-42A00
Washer, Oil Sealing ()
22
24421-05300
Wheel, Sliding Dog ()
23
09264-15001
Bearing (15x36x12) ()
24
09262-22018
Bearing (22x50x14) ()
27
09283-30053
Seal, Drive Shaft Oil ()
28
24751-42A10
Retainer, Drive Shaft Oil Sea ()
30
08331-3115A
Circlip ()
31
26260-05201
Gear, Kick Starter Idle (nt:26)
32
09181-15111
Washer (15x20x1.0) ()
33
27511-44A20
Sprocket, Engine (nt:14) ()
34
27531-42A00
Spacer, Engine Sprocket ()
35
09280-21008
O Ring (d:2.5, Id:21) ()
36
01550-0812A
Plug, Oil Gallery ()
37
08211-08283
Шайба
38-1
27600-46911-134
Chain Assy (did, 428hg 134l) (dr-z125k8l:134->122dr-z125lk8l:134->130)
39
27620-46911
Joint (did, 428hg) (opt)
40
27640-08G00
Plate, Front Chain ()
41
11450-08G00
Cap, Neutral Sw ()
42
09280-22001
O Ring, D:2.4, Id:21.8 ()
43
02112-0508A
Винт
