Seat tail cover (model k8) для мотоциклов Suzuki (Америка) DL650 V-STROM (2008)

Москва и регионы России

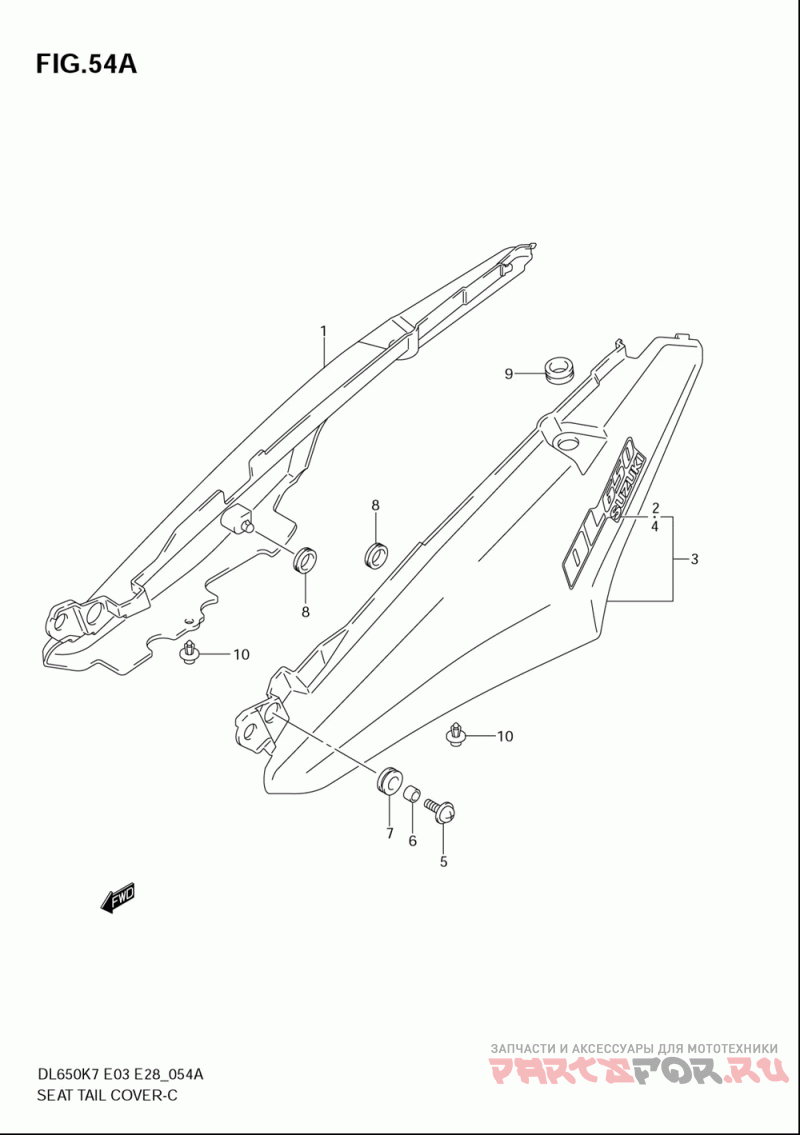

Seat tail cover (model k8)

Suzuki (Америка) DL650 V-STROM

Seat tail cover (model k8)

#

oem код

название

цена

1-1

45501-27G00-YHG

Cover Assy, Seat Tail Rh (for Yhg)

Cover Assy, Seat Tail Rh (for Yhg)

1-2

45501-27G00-YMF

Cover Assy, Seat (for Ymf)

Cover Assy, Seat (for Ymf)

1-3

45501-27G00-4EX

Cover As, Seat T (for Ykv)

Cover As, Seat T (for Ykv)

2-1

68161-27G00-DTK

.emblem, Seat Tail Cover (for Yhg)

.emblem, Seat Tail Cover (for Yhg)

2-3

68161-27G00-DTM

.emblem, Seat Tail Cover (for 4ex)

.emblem, Seat Tail Cover (for 4ex)

2-4

68161-27G00-FBZ

Emblem, Seat Tai (for 5fx)

Emblem, Seat Tai (for 5fx)

3-1

45502-27G00-YHG

Cover Assy, Seat Tail Lh (for Yhg)

Cover Assy, Seat Tail Lh (for Yhg)

3-2

45502-27G00-YMF

Cover Assy, Seat (for Ymf)

Cover Assy, Seat (for Ymf)

3-3

45502-27G00-4EX

Cover, Seat Tail (for Ykv)

Cover, Seat Tail (for Ykv)

5

Screw, Front ()

Screw, Front ()

6

Spacer, Choke Solenoid ()

Spacer, Choke Solenoid ()

7

Cushion, Tail Cover Rr Fr ()

Cushion, Tail Cover Rr Fr ()

8

Cushion, Brace ()

Cushion, Brace ()

9

Cushion, Rear ()

Cushion, Rear ()

10

09409-06314-5PK

Clip (black) ()

Clip (black) ()
