Electrical (model k8) для мотоциклов Suzuki (Америка) DL650 V-STROM (2008)

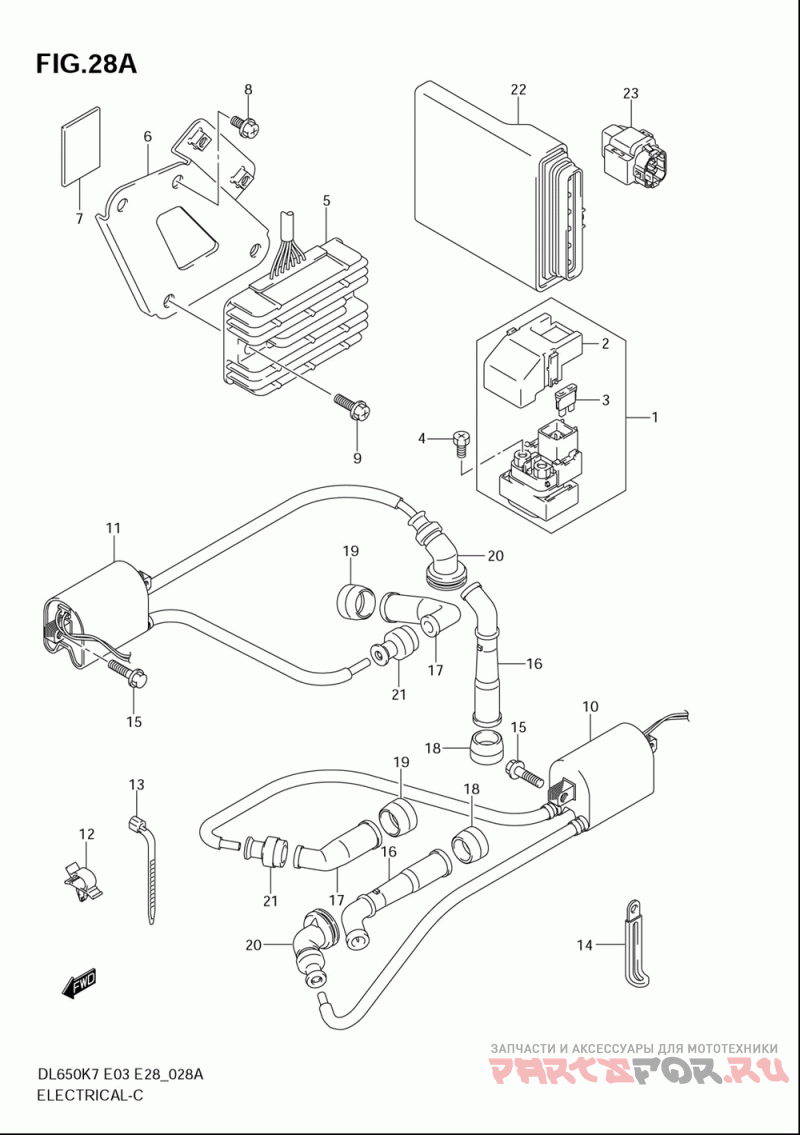

Electrical (model k8)

Suzuki (Америка) DL650 V-STROM

oem код

название

цена

31800-06G00

Relay Assy, Starting Motor ()

31861-47E00

.cover ()

09481-30101

.fuse (30a) ()

09128-06013

Bolt, Starting Motor (6x8) ()

32800-41G10

Rectifier Assy ()

32831-27G20

Bracket, Rect Ft ()

33651-37000

Protector (170x95x3.0) (cut As Required(30x40))

02162-0620B

Screw ()

33410-27G00

Coil Assy, Ignition ()

33420-27G00

Coil Assy, Ignition ()

Clamp ()

Clamp (l:165) ()

.clamp, Sw Leads ()

Болт

Cap Assy, Spark Plug (center) (for Center)

33510-20E00

Cap Assy, Spark (side) (for Side)

33541-23E01

Seal, Spark Plug (for Center)

33541-47D00

Seal, Spark Plug Cap (side) (for Side)

33542-17G01

Seal, High Tensi (for Center)

33542-38B00

Seal, High Tension Cord (for Side)

32920-27GC1

Control Unit, Fi ()

33960-27G00

Sensor Assy, Fuel Cut ()
