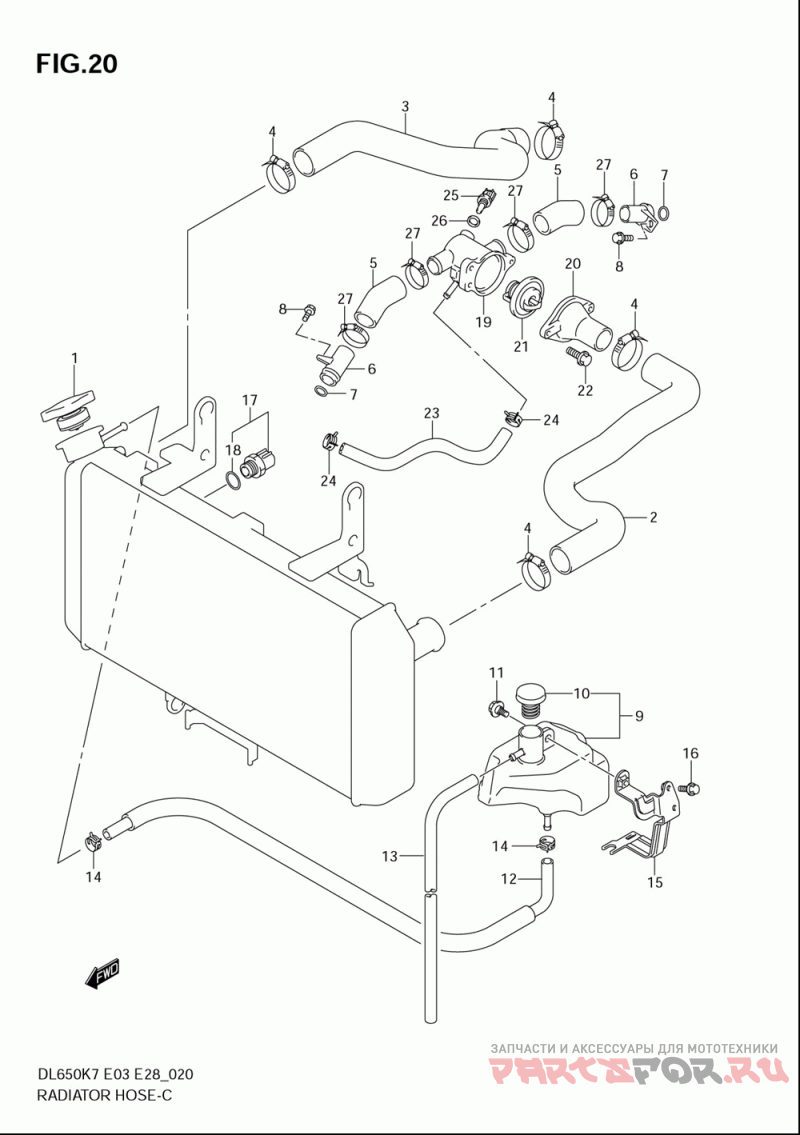

Радиатор и Патрубки

Suzuki (Америка) DL650 V-STROM

Suzuki (Америка)
#oem кодцена
1
17730-12C20
Cap, Radiator ()
2
17851-27G00
Hose, Radiator Inlet ()
3
17852-27G10
Hose, Radiator Outlet ()
4
09402-38512
09402-38511-a05 ()
5
17853-19F00
Hose, Connector Inlet ()
6
17890-06G20-A05
Union, Connector Hose ()
7
09280-18009
O Ring ()
8
07130-0612A
Bolt, Piston Cooling Jet ()
9
17910-27G10
Tank Assy, Reservoir ()
10
17931-02FA0
.cap, Reservoir Tank ()
11
09111-06085-A05
Болт
12
17981-27G10
Hose, Reservoir Tank Inlet ()
13
17982-38810
Hose, Over Flow ()
14
09401-08411
Clip ()
15
17920-27G10
Bracket, Reservoir Tank ()
16
01550-0610A
Болт
17
17680-50F10
Switch, Radiator Fan ()
18
17689-50F00
.o Ring ()
19
17662-02F11-E00
Connector, Thermostat Inlet ()
20
17663-17G00
Cap, Thermostat Connector ()
21
17670-06G50
Thermostat, Water ()
22
01550-0616A
Болт
23
17856-19F00
Hose, Connector To Water Pump ()
24
09401-12409
Clip ()
25
13650-57F00
Sensor, Water Temperature ()
26
09168-12017
Gasket ()
27
09402-28513
Clamp ()
