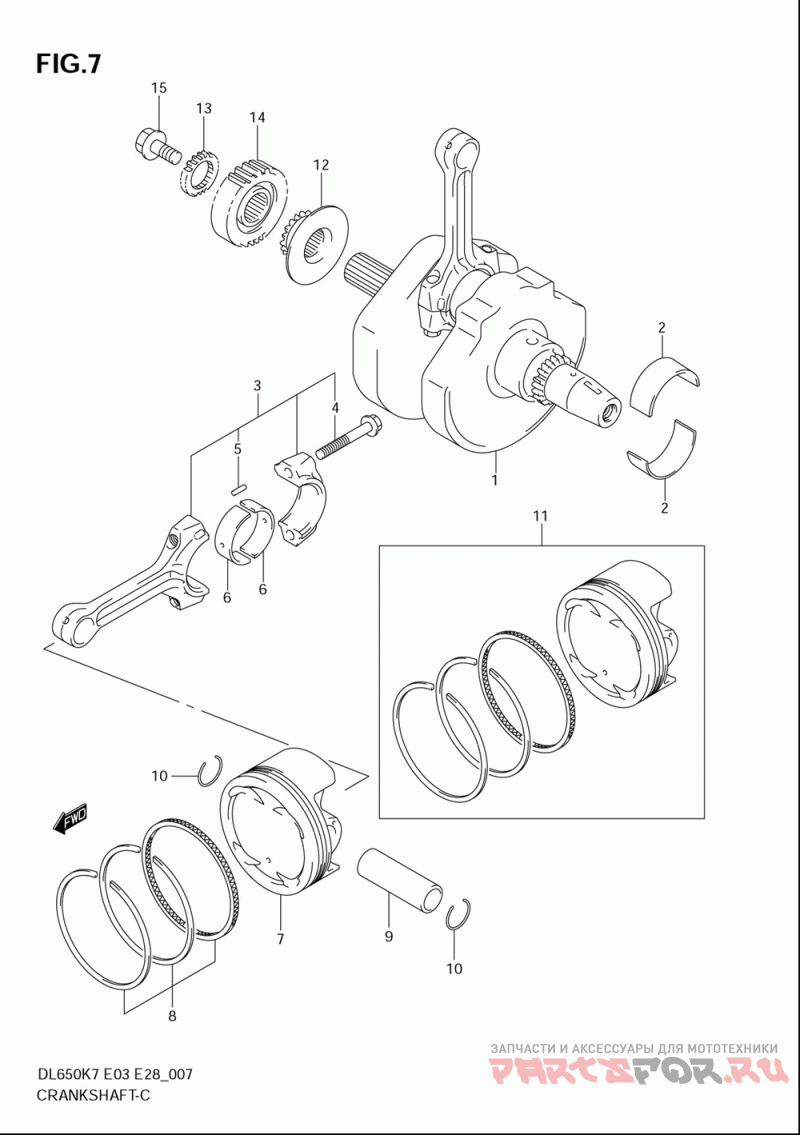

Коленвал

Suzuki (Америка) DL650 V-STROM

Suzuki (Америка)
#oem кодцена
1
12220-17G00
Crankshaft Set ()
2-1
12229-27G00-0A0
Bearing, Crankshaft (green) ()
2-2
12229-27G00-0B0
Bearing, Crankshaft (black) ()
2-3
12229-27G00-0C0
Bearing, Crankshaft (brown) ()
3
12160-17G10
Connecting Rod Assy ()
4
12163-24F10
.bolt, Connecting Rod ()
5
04221-04089
Pin ()
6-1
12164-46E01-0A0
Bearing, Crank Pin (green) ()
6-2
12164-46E01-0B0
Bearing, Crank Pin (black) ()
6-3
12164-46E01-0C0
Bearing, Crank Pin (brown) ()
6-4
12164-46E01-0D0
Bearing, Crank Pin (yellow) ()
7
12111-20F10-0F0
Piston ()
8-1
12140-17G10
Ring Set, Piston (model K7)
8-2
12140-17G20
Ring Set, Piston (model K8)
9
12151-05A00
Pin, Piston ()
10
09381-20004
Circlip ()
11-1
12100-17G10-050
Piston Set (os:0.5) (optmodel K7)
11-2
12100-17G20-050
Piston Set, Os 0 (optmodel K8)
12
12731-19F00
Sprocket, Cam Chain Drive ()
13
17451-17G00
Gear, Water Pump Drive ()
14
21111-20F10
Gear, Primary Drive ()
15
09103-10338
Bolt, Primary Drive Gear ()
