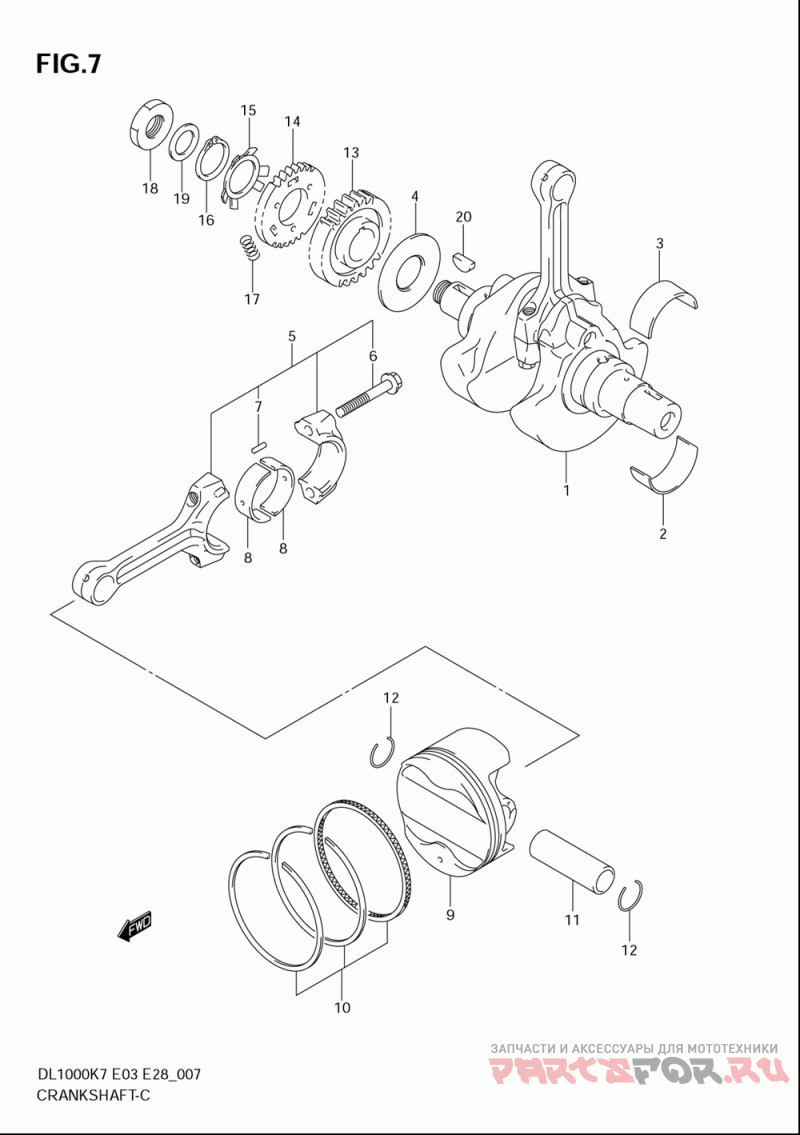

Коленвал для мотоциклов Suzuki (Америка) DL1000 V-STROM (2008)

Коленвал

Suzuki (Америка) DL1000 V-STROM

oem код

название

цена

12220-06G00

Crankshaft ()

2-1

12229-16G00-0A0

Bearing, Lower (green) ()

2-2

12229-16G00-0B0

Bearing, Lower (black) ()

2-3

12229-16G00-0C0

Bearing, Lower (brown) ()

12652-38B00

Washer, Crank Thrust ()

12160-06G00

Connecting Rod Assy ()

12163-06G00

.bolt ()

12165-27A50

.pin ()

8-1

12164-02F12-0A0

Bearing, Crank P ()

8-2

12164-02F12-0B0

Bearing, Crank P ()

8-3

12164-02F12-0C0

Bearing, Crank P ()

8-4

12164-02F11-0D0

Bearing, Crank Pin ()

Piston ()

Ring Set, Piston ()

Pin, Piston ()

Circlip ()

Gear, Primary Drive ()

21112-02F00

Gear, Primary Drive Scissors ()

Шайба

Circlip ()

Spring ()

Гайка

Шайба

Key ()
