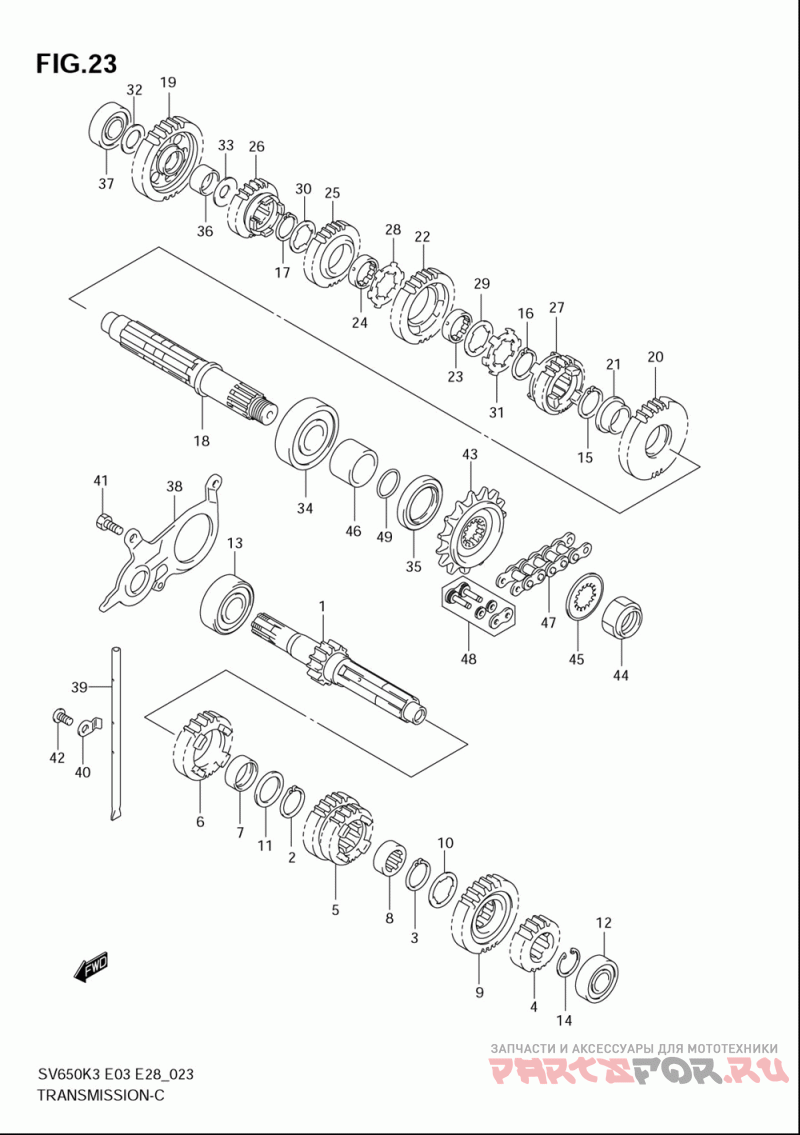

Transmission (model k3)

Suzuki (Америка) SV650,S,A

Suzuki (Америка)
#oem кодцена
1
24120-19F00
Shaft, Counter (nt:13)
2
24127-19F00
Circlip, 2nd Driven
4
24221-20F00
Gear, 2nd Drive (nt:18)
5
24231-20F03
Gear, 3rd & 4th Drive
6
24251-20F02
Gear, 5th Drive (nt:26)
7
24252-19F00
Bush, 5th Drive
8
24252-38A10
Bush, 6th Drive
9
24261-20F00
Gear, 6th Drive (nt:27)
10
09167-25021
Washer, 3rd Driven
11
09181-25167
Washer, 5th Drive
12
09262-17046
Bearing, Cntr Shaft Lh
13
09262-20145
Bearing, 20x52x1
14
09380-25012
Ring, 2nd Drive
18
24130-19F01
Вал ведущий
19
24311-20F00
Gear, 1st Driven (nt:32)
20
24321-20F00
Gear, 2nd Driven (nt:32)
21
24322-19F00
Bush, 2nd Driven
22
24331-20F00
Gear, 3rd Driven (nt:29)
23
24332-24510
Bush, 3rd, Driven
25
24341-20F00
Gear, 4th Driven (nt:27)
26
24351-20F02
Gear, 5th Driven (nt:25)
27
24361-20F01
Gear, 6th Driven (nt:23)
28
09167-25013
Lock Washer, 3rd Driven
31
09169-25001
Washer, 3rd Driven Lock
32
09181-17195
Washer, 1st Driven
33
09181-20195
Washer, 1st Driven
34
09262-25125
Bearing, Drive Shaft Lh
35
09283-36003
Seal, Drive Shaft
36
09300-20032
Bush, 1st Driven
37
09262-17023
.bearing, Crankshaft Lower
38
24751-19F00
Retainer, Drive Shaft Oil Sea
39
24881-12C20
Guide, T/m Oil
40
24885-12C10
Retainer, Transmission Oil
41
01500-0612A
Болт
42
02112-0612A
Винт
43
27510-20F00
Sprocket, Engine (nt:15)
44
09159-20004
Nut, Engine Sprocket
45
09167-25019
Washer (25x40x1.4)
46
27531-19F01
Spacer, Engine Sprocket
47-1
27600-32C10-110
Chain Assy (did525v9, 110le)
47-2
27600-32C10-108
Chain Assy (did525v9, 108le)
48
27620-32C10
Joint Set, Chain
49
09280-24010
O Ring (d:2.4, Id:23.7)
5
24231-20F10
Gear, 3rd & 4th
20
24321-20F01
Gear, 2nd Driven
