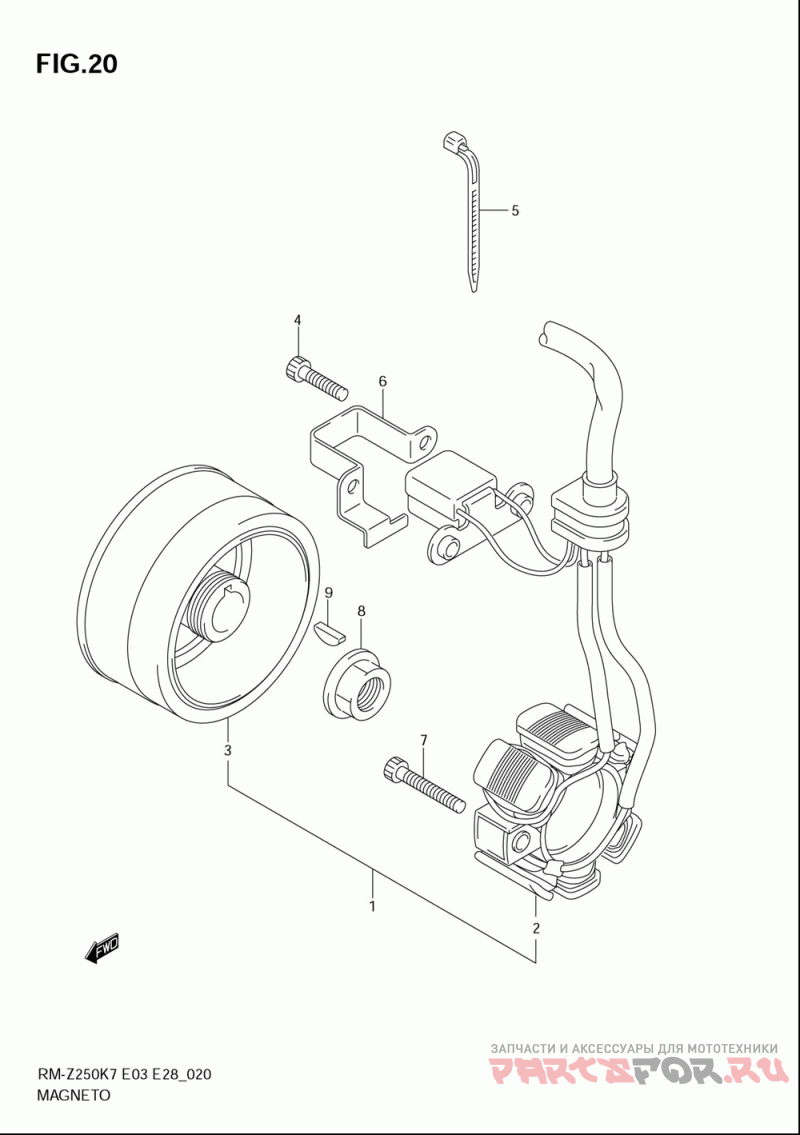

Генератор
Suzuki (Америка) RM Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 32100-10H00 Magneto Assy | Magneto Assy | |
2 | 32101-10H00 .stator Assy | .stator Assy | |
3 | 32102-10H00 .rotor Assy | .rotor Assy | |
4 | 32371-10H00 Clamp, Magneto Lead | Clamp, Magneto Lead | |
5 | 09407-14403 .clamp, Battery Cable | .clamp, Battery Cable | |
6 | 07130-0512B Bolt, Sensor | Bolt, Sensor | |
7 | 09106-05029 Bolt, Magneto Stator | Bolt, Magneto Stator | |
8 | 08316-1012A Гайка | Гайка | |
9 | 08341-31039 Шпонка | Шпонка |
