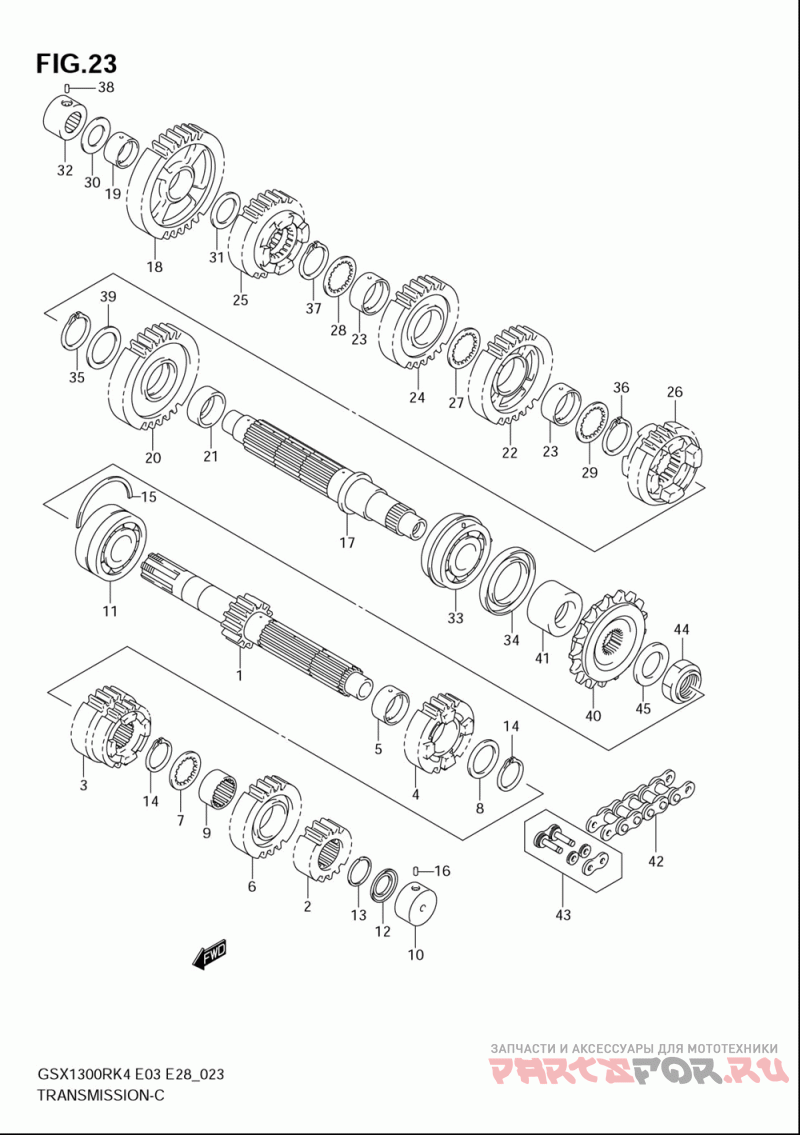

Трансмиссия

Suzuki (Америка) GSX1300R,Z Hayabusa

Suzuki (Америка)
#oem кодцена
1
24120-24F00
Shaft, Counter (nt:13)
2
24221-24F00
Gear, 2nd Drive (nt:16)
3-1
24231-24F10
Gear, 3rd & 4th Drive (nt:19/21~f.no.103498)
3-2
24231-24F40
Gear, 3rd & 4th Drive (nt:19/21f.no.103499~)
4
24251-24F00
Gear, 5th Drive (nt:22)
5
24252-24F10
Bush, 5th Drive
6
24261-24F00
Gear, 6th Drive (nt:23)
7
09167-27003
Washer, 6th Drive
8
09181-27014
Washer, 5th Drive
9
24262-24F10
Bush, 4th Drive
10
09263-20085
Bearing, Center Shaft Lh
11
09267-25012
Bearing, Center Shaft Rh
12
09285-20006
Сальник
13
09380-27004
Circlip, 2nd Drive
14
09380-27006
Circlip, 5th & 6th Drive
15
09390-62012
C Ring, Cntr Shaft Brg Rh
16
04221-07209
Pin, Drive Shaft Brg Rh
17
24131-24F10
Вал ведущий
18
24311-24F00
Gear, 1st Driven (nt:34)
19
24312-24F10
Bush, 1st Driven
20
24321-24F00
Gear, 2nd Driven (nt:31)
21
24322-24F10
Bush, 2nd Driven
22
24331-24F00
Gear, 3rd Driven (nt:29)
23
24332-24F10
Bush, 3rd & 4th Driven
24-1
24341-24F00
Gear, 4th Driven (nt:27)
24-2
24341-24F10
Gear, 4th Driven (nt:27)
25
24351-24F10
Gear, 5th Driven (nt:25)
26
24361-24F10
Gear, 6th Driven (nt:24)
27
09167-30008
Washer, 3rd Driven Gear Lh
30
09181-20251
Shim (t:1.0)
31
09181-24005
Washer, 1st Driven Lh
32
09263-20040
Bearing, Drive Shaft Rh
33
09267-30011
Bearing, Drive Shaft Lh
34
09283-42017
Seal, Drive Shaft
35
09380-30009
Circlip, 2nd Driven
39
08211-30405
Washer, 2nd Driven Gear Rh
40
27510-21A31
Sprocket, Engine (nt:17)
41
27531-24F00
Распорная втулка
42
27600-24F50-112
Chain Assy, Driv
43
27620-24F00
Joint Set, Drive
44
09159-20004
Nut, Engine Sprocket
45
09181-25268
Shim (25x36x1.5)
