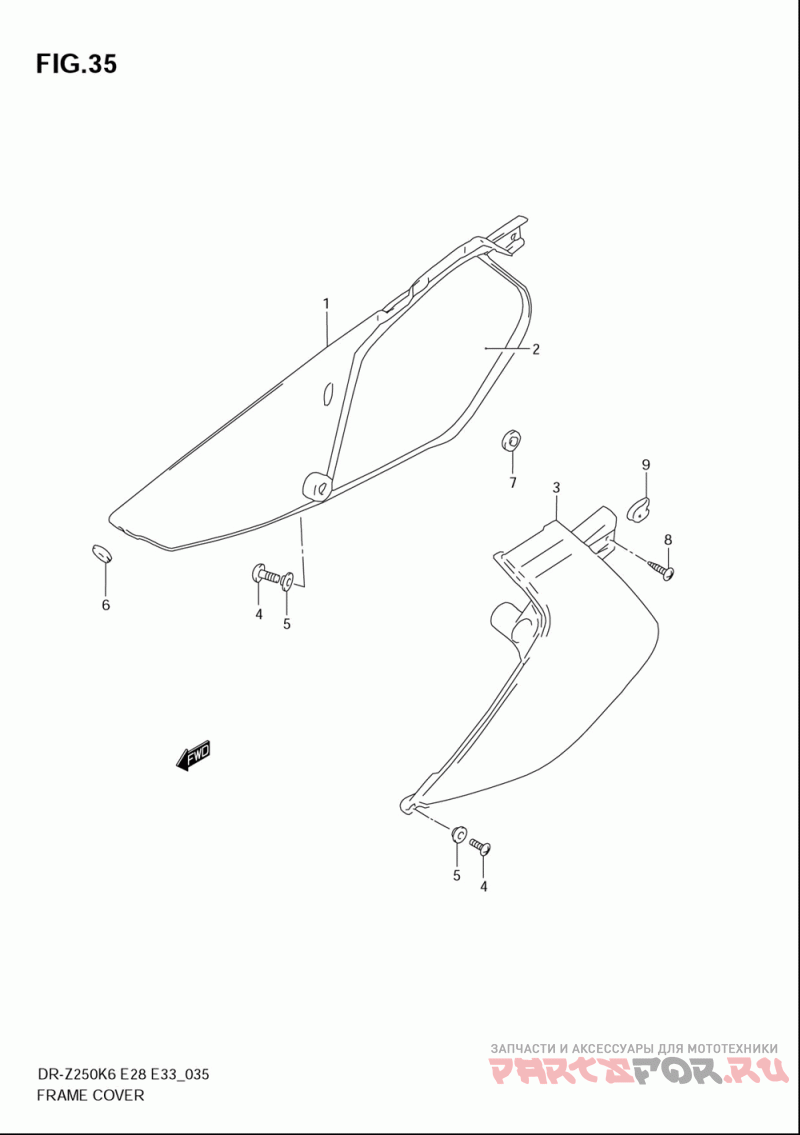

Обтекатель рамы
Suzuki (Америка) DR Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 47111-13E00-30H Cover, Frame Rh (white) | Cover, Frame Rh (white) | |
2 | 47166-13E00 Shield, Frame Cover Rh | Shield, Frame Cover Rh | |
3 | 47211-13E00-30H Cover, Frame Lh (white) | Cover, Frame Lh (white) | |
4 | 02142-06127 Винт | Винт | |
5 | 09169-06041 Washer, Guide Rr Brake Hose | Washer, Guide Rr Brake Hose | |
6 | 09320-08013 Подушка | Подушка | |
7 | 09321-10018 Cushion, Muffler | Cushion, Muffler | |
8 | 03541-1512B Винт | Винт | |
9 | 09148-05013 Гайка | Гайка |
