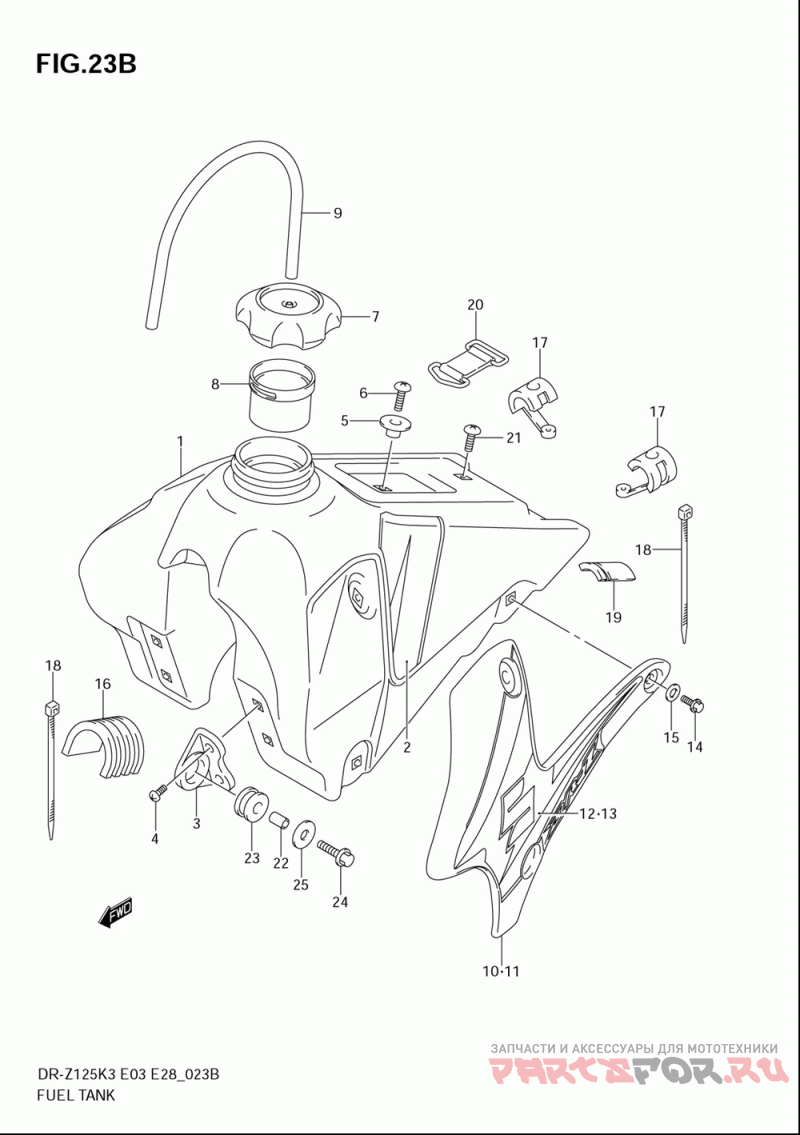

Топливный бак (модель K5)

Suzuki (Америка) DR Z125,L

Топливный бак (модель K5)

#

oem код

название

цена

1-1

44100-08G20-YU1

Tank, Fuel (yellow)

Tank, Fuel (yellow)

1-2

44100-08G30-YBH

Tank, Fuel (blue)

Tank, Fuel (blue)

2-1

68110-08G30-BEV

.tape Set

.tape Set

2-2

68110-08G20-AZR

.tape Set

.tape Set

3

.bracket, Fuel Tank Front

.bracket, Fuel Tank Front

4

Болт 6x12

Болт 6x12

5

.hook, Front

.hook, Front

6

Винт

Винт

7

Cap Assy, Fuel Tank

Cap Assy, Fuel Tank

8

Tube, Inlet

Tube, Inlet

9

09352-50823-600

Шланг

Шланг

10-1

44171-08G10-YU1

Cover, Fuel Tank

Cover, Fuel Tank

10-2

44171-08G00-YJ4

Cover, Tank Front Rh (blue)

Cover, Tank Front Rh (blue)

11-1

44181-08G10-YU1

Cover, Fuel Tank

Cover, Fuel Tank

11-2

44181-08G00-YJ4

Cover, Tank Front Lh (blue)

Cover, Tank Front Lh (blue)

12-1

68115-08G20-YHB

Tape, Front Cover Rh

Tape, Front Cover Rh

12-2

68115-08G20-YHU

Tape, Front Cover Rh

Tape, Front Cover Rh

13-1

68116-08G20-YHB

Tape, Front Cover Lh

Tape, Front Cover Lh

13-2

68116-08G20-YHU

Tape, Front Cover Lh

Tape, Front Cover Lh

15

Шайба

Шайба

16

Подушка, передняя

Подушка, передняя

17

Cushion, Side

Cushion, Side

18

Зажим

Зажим

19

Cushion, Rear

Cushion, Rear

20

Band, Fuel Tank Rear

Band, Fuel Tank Rear

21

Винт

Винт

22

Spacer (6.5x9x13.5)

Spacer (6.5x9x13.5)

23

Подушка

Подушка

24

Болт

Болт

25

Шайба

Шайба
