Carburetor (model k5) для мотоциклов Suzuki (Америка) RM250,Z (2006)

Москва и регионы России

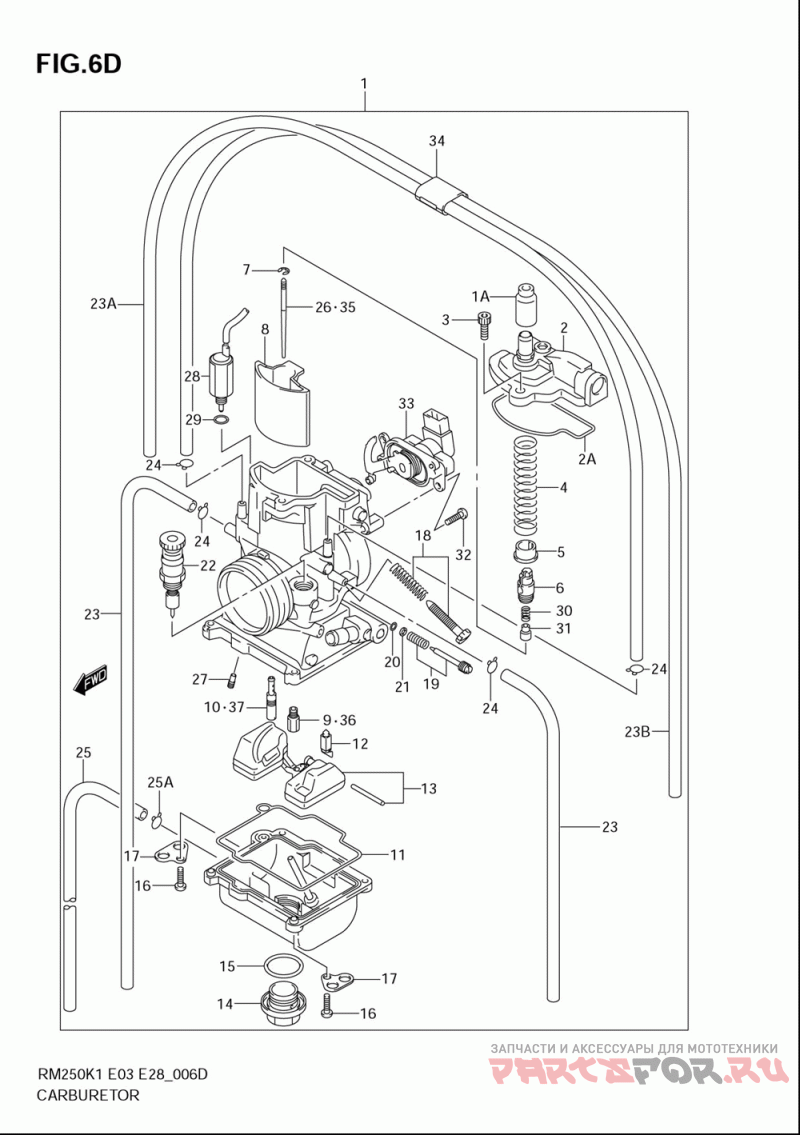

Carburetor (model k5)

Suzuki (Америка) RM250,Z

Carburetor (model k5)

#

oem код

название

цена

1-1

Карбюратор

Карбюратор

1A

.cap, Carburetor

.cap, Carburetor

2

.top

.top

2A

Кольцо

Кольцо

3

Винт

Винт

4

.spring, Throttle Valve

.spring, Throttle Valve

5

.collar, Throttle Valve

.collar, Throttle Valve

6

.holder, Cable

.holder, Cable

7

.clip, Needle

.clip, Needle

8

.valve, Throttle

.valve, Throttle

9-1

Jet, Main (168)

Jet, Main (168)

9-2

Jet, Main (172)

Jet, Main (172)

10-1

Jet, Pilot (48)

Jet, Pilot (48)

10-2

Jet, Pilot (50)

Jet, Pilot (50)

11

.gasket, Float Chamber

.gasket, Float Chamber

12

.valve Set, Float

.valve Set, Float

13

.float Set

.float Set

14

.bolt, Drain

.bolt, Drain

15

Кольцо

Кольцо

16

Винт

Винт

17

.binder

.binder

18

.screw Set, Stop

.screw Set, Stop

19

.screw Set, Air

.screw Set, Air

20

Кольцо

Кольцо

21

Шайба

Шайба

22

.starter Valve

.starter Valve

23

.hose, 4x7x620 (rh L:620->400lh L:620->360l:620->600l:620->550)

.hose, 4x7x620 (rh L:620->400lh L:620->360l:620->600l:620->550)

24

Зажим

Зажим

25

09351-35653-600

.hose (3.5x6.5x600)

.hose (3.5x6.5x600)

25A

09401-05402-XC0

Зажим

Зажим

26-1

Needle, Jet (necj)

Needle, Jet (necj)

26-2

Needle, Jet (nedh)

Needle, Jet (nedh)

27-1

.jet, Power (45)

.jet, Power (45)

27-2

.jet, Power (55)

.jet, Power (55)

28

.solenoid Assy

.solenoid Assy

29

Кольцо

Кольцо

30

Пружина

Пружина

31

.collar

.collar

32

Винт

Винт

33

.sensor Assy

.sensor Assy

34

.clip

.clip

35-1

Needle, Jet (necf)

Needle, Jet (necf)

35-2

Needle, Jet (necg)

Needle, Jet (necg)

35-3

Needle, Jet (nech)

Needle, Jet (nech)

35-4

Needle, Jet (necw)

Needle, Jet (necw)

35-6

Needle, Jet (neck)

Needle, Jet (neck)

35-7

Needle, Jet (necl)

Needle, Jet (necl)

35-8

Needle, Jet (nedf)

Needle, Jet (nedf)

35-9

Needle, Jet (nedg)

Needle, Jet (nedg)

35-11

Needle, Jet (nedw)

Needle, Jet (nedw)

35-12

Needle, Jet (nedj)

Needle, Jet (nedj)

35-13

Needle, Jet (nedk)

Needle, Jet (nedk)

35-14

Needle, Jet (nedl)

Needle, Jet (nedl)

36-1

Jet, Main (150)

Jet, Main (150)

36-2

Jet, Main (152)

Jet, Main (152)

36-3

Jet, Main (155)

Jet, Main (155)

36-4

Jet, Main (158)

Jet, Main (158)

36-5

Jet, Main (160)

Jet, Main (160)

36-6

Jet, Main (162)

Jet, Main (162)

36-7

Jet, Main (165)

Jet, Main (165)

36-9

Jet, Main (170)

Jet, Main (170)

36-11

Jet, Main (175)

Jet, Main (175)

36-12

Jet, Main (178)

Jet, Main (178)

36-13

Jet, Main (180)

Jet, Main (180)

36-14

Jet, Main (185)

Jet, Main (185)

36-15

Jet, Main (190)

Jet, Main (190)

36-16

Jet, Main (195)

Jet, Main (195)

36-17

Jet, Main (200)

Jet, Main (200)

36-18

Jet, Main (205)

Jet, Main (205)

36-19

Jet, Main (210)

Jet, Main (210)

37-1

Jet, Pilot (35)

Jet, Pilot (35)

37-2

Jet, Pilot (40)

Jet, Pilot (40)

37-3

Jet, Pilot (42)

Jet, Pilot (42)

37-4

Jet, Pilot (45)

Jet, Pilot (45)

37-7

Jet, Pilot (52)

Jet, Pilot (52)

37-8

Jet, Pilot (55)

Jet, Pilot (55)

37-9

Jet, Pilot (58)

Jet, Pilot (58)

37-10

Jet, Pilot (60)

Jet, Pilot (60)
