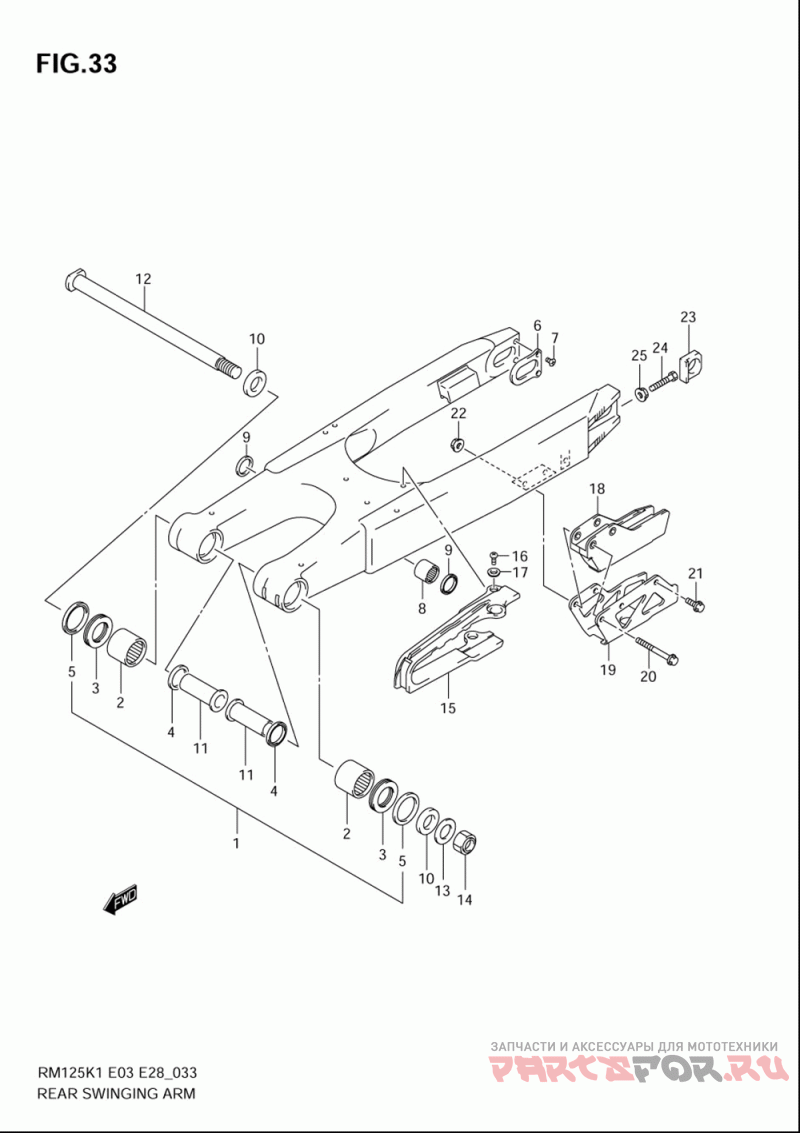

Rear swinging arm (model k1/k2/k3) для мотоциклов Suzuki (Америка) RM125 (2006)

Rear swinging arm (model k1/k2/k3)

Suzuki (Америка) RM125

oem код

название

цена

1-1

61000-37E21

Swinging Arm Assy, Rear (model K1)

1-2

61000-37F00

Swinging Arm Assy, Rear (model K2)

1-3

61000-37F10

Swinging Arm Assy, Rear (model K3)

09263-22017

.bearing, Pivot (22x29x30) ()

09263-22064

.bearing, Outer (22x35x2) ()

09285-22001

.seal, Inner (22x29x4) ()

61262-36E00

.seal, Outer (29.2x37x4) ()

61128-37E20

.plate, Pr Swingingarm, Rear ()

02122-0410A

.screw, Plate ()

09263-20086

.bearing (20x27x15) ()

62624-14500

Seal, Dust (19x27x4) ()

61251-36E01

Spacer, Pivot Outer ()

61252-37F00

Spacer, Pivot Inner ()

Shaft, Pivot ()

Шайба

Гайка

Buffer, Chain Touch Defense ()

Винт

Шайба

Guide, Chain ()

Plate, Guide Outer ()

09103-06242

Болт

09103-06233

Болт

08316-1006B

Гайка

23-1

61445-37F00

Washer, Chain Adjuster (model K1)

23-2

61445-37F10

Washer, Chain Adjuster (model K2/k3)

09100-08287

Bolt (8x50) ()

09159-08034

Гайка
