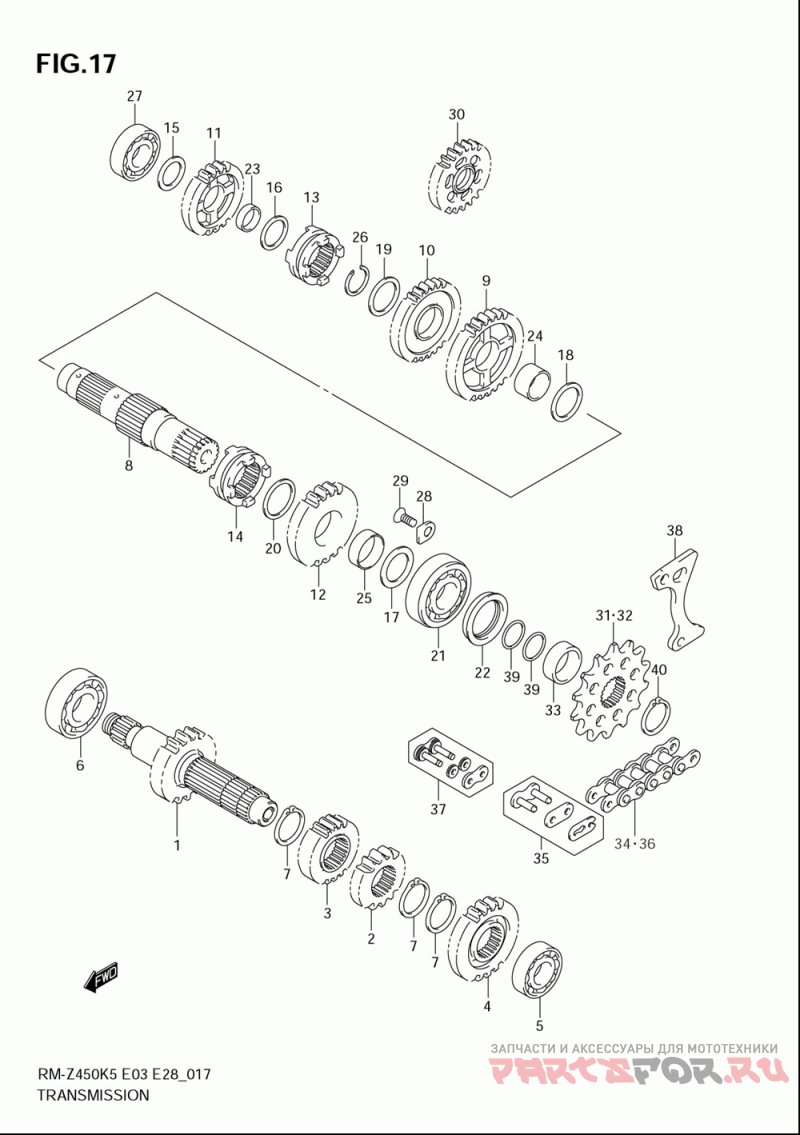

Трансмиссия

Suzuki (Америка) RM-Z450

Suzuki (Америка)
#oem кодцена
1-1
24120-35G00
Shaft, Counter (nt:20)
1-2
24120-35G10
Shaft, Counter (nt:20)
1-3
24120-35G20
Shaft, Counter (nt:22)
2
24211-35G00
Gear, 1st Drive, Nt:15
3
24221-35G00
Gear, 2nd Drive, Nt:18
4-1
24241-35G00
Gear, 4th Drive, Nt:22
4-2
24241-35G10
Gear, 4th Drive, Nt:24
5
08123-60040
Bearing, Drive Shaft, R
6
08143-62057
Bearing, Cntr Rh
7
08331-3125A
08331-31256
8
24131-35G00
Вал ведущий
9
24311-35G00
Gear, 1st Driven, Nt:30
10
24321-35G00
Gear, 2nd Driven, Nt:29
11-1
24331-35G00
Gear, 3rd Driven, Nt:27
11-2
24331-35G10
Gear, 3rd Driven, Nt:30
12-1
24341-35G00
Gear, 4th Driven, Nt:25
12-2
24341-35G10
Gear, 4th Driven, Nt:28
13
24411-35G00
Dog, Sliding No.1
14
24412-35G00
Dog, Sliding No.2
15
09181-20167
Shim (20x28x1.0)
16
09181-22130
Washer, 3rd Driven Gear, L
17
09181-24005
Washer, 1st Driven Lh
18
09181-25139
Washer, 1st Driven Gear, L (25x32x1.025x32x1.0)
20
09181-27015
Washer, 4th Driven Gear, R
21
09262-24001
Bearing, Drive Shaft, L
22
09289-31002
Seal, Drive Shaft Oil
23
09300-22019
Bush, 3rd Driven Gear
24
09300-25032
Bush, 1st & 2nd Driven Gear
25
09300-27004
Bush, 4th Driven Gear
26
09380-25010
Пружинное стопорное кольцо
28
24741-20A00
Обойма подшипника
29
09126-06011
Screw, Drive Shaft (6x12)
30
26260-35G00
Gear, Kick Starter Idle
31-1
27511-35G00
Sprocket, Engine, Nt:14
31-2
27511-35G20
Sprocket, Engine, Nt:14
32
27511-35G10
Sprocket, Engine, Nt:13
33-1
27531-35G01
Spacer, Engine Sprocket
34
27600-43D01-114
Chain Assy (did520dma2, 114le)
35
27620-43D01
Joint Set, Chain
36
27600-35G00-114
Chain Assy, Drive
37
27620-35G00
Joint Set, Chain
38
27641-35G00
Plate, Front Chain Guide
39
09280-21010
O Ring, Sprocket Spacer
40
08331-3124A
Пружинное стопорное кольцо
