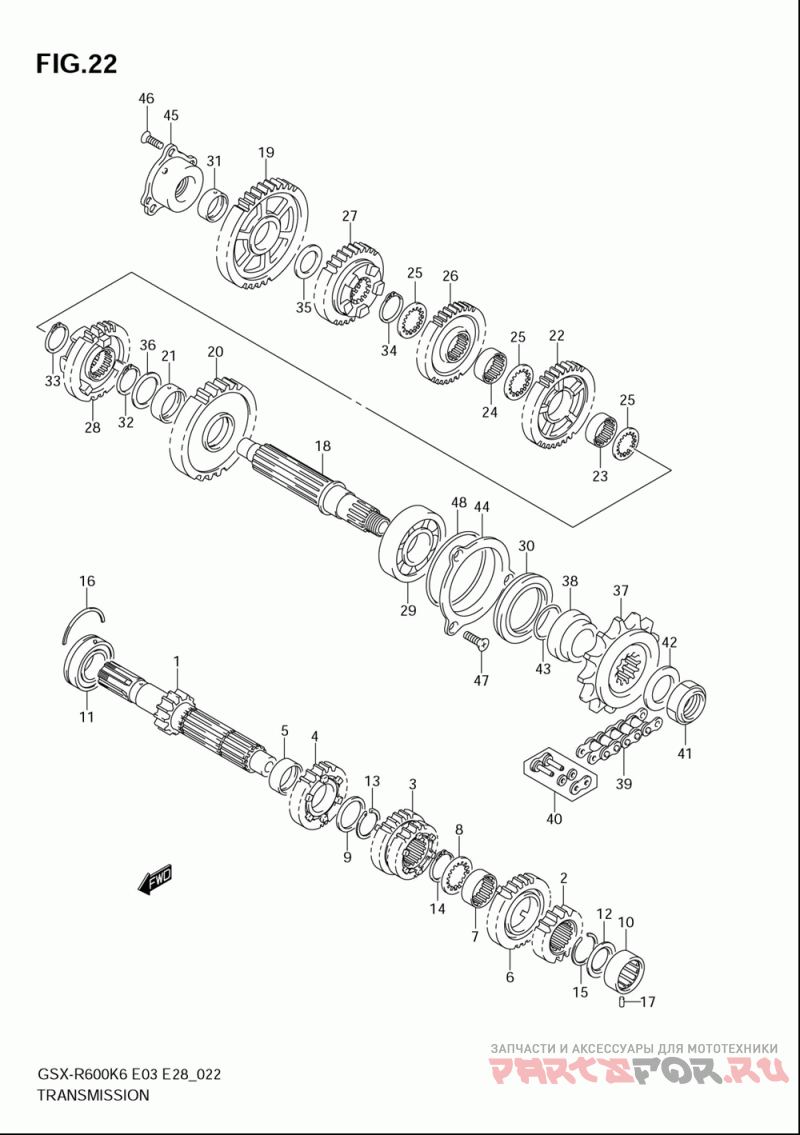

Трансмиссия

Suzuki (Америка) GSX-R600

Suzuki (Америка)
#oem кодцена
1
24120-01H00
Shaft, Counter (nt:14)
2
24221-35F00
Gear, 2nd Drive (nt:19)
3
24231-01H00
Gear, 3rd & 4th (nt:21/24)
4
24251-01H00
Gear, 5th Drive (nt:23)
5
24252-35F00
Bush, 5th Drive Gear
6-1
24261-01H01
Gear, 6th Driven
7
24262-35F00
Bush, 6th Drive
8
09167-27001
Washer, 6th Drive
9
09160-27008
Washer, 2nd Driven Gear
10
09263-20087
Bearing, Drive Shaft, R
11
09262-25150
Bearing, Cntr Rh
12
09285-20006
Сальник
13
09380-27006
Circlip, 5th & 6th Drive
15
09380-27004
Circlip, 2nd Drive
16
09390-62012
C Ring, Cntr Shaft Brg Rh
17
09261-06003
Pin, Drive Shaft, R
18
24131-01H01
Вал ведущий
19
24311-35F20
Gear, 1st Driven (nt:39)
20
24321-35F11
Gear, 2nd Driven
21
24322-35F00
Bush, 2nd Driven
22
24331-40F30
Gear, 3rd Driven
23
24262-17E01
Bush, 4th Driven Gear
25
24333-02F00
Washer, 3rd Driven Gear
26
24341-40F20
Gear, 4th Driven (nt:36)
27-1
24351-01H01
Gear, 5th Driven
28
24361-01H00
Gear, 6th Driven (nt:26)
29
09262-28045
Bearing, Drive Shaft, Lh
30
09283-42017
Seal, Drive Shaft
31
09300-22008
Bush (22x27x0.5)
35
09181-22223
Washer, 1st Driven Lh
37
27510-20A10
Sprocket, Engine (nt:16)
38
27531-01H00
Spacer, Engine Sprocket
39
27600-06G30-114
Chain Assy (rk525sm0z7y, 114l)
40
27620-06G00
Joint Set, Chain
41
09159-20004
Nut, Engine Sprocket
42
09160-25009
Washer (25x41x3)
43
09280-24010
O Ring (d:2.4, Id:23.7)
44
24751-01H00
Retainer, Drive Shaft, L
45
24771-01810
Housing, Drive Shaft, Set
46
09139-06159-A05
Screw, 6x20
48
09280-68009
Кольцо
