Under cowling (model k5) для мотоциклов Suzuki (Америка) GSX-R1000 (2006)

Москва и регионы России

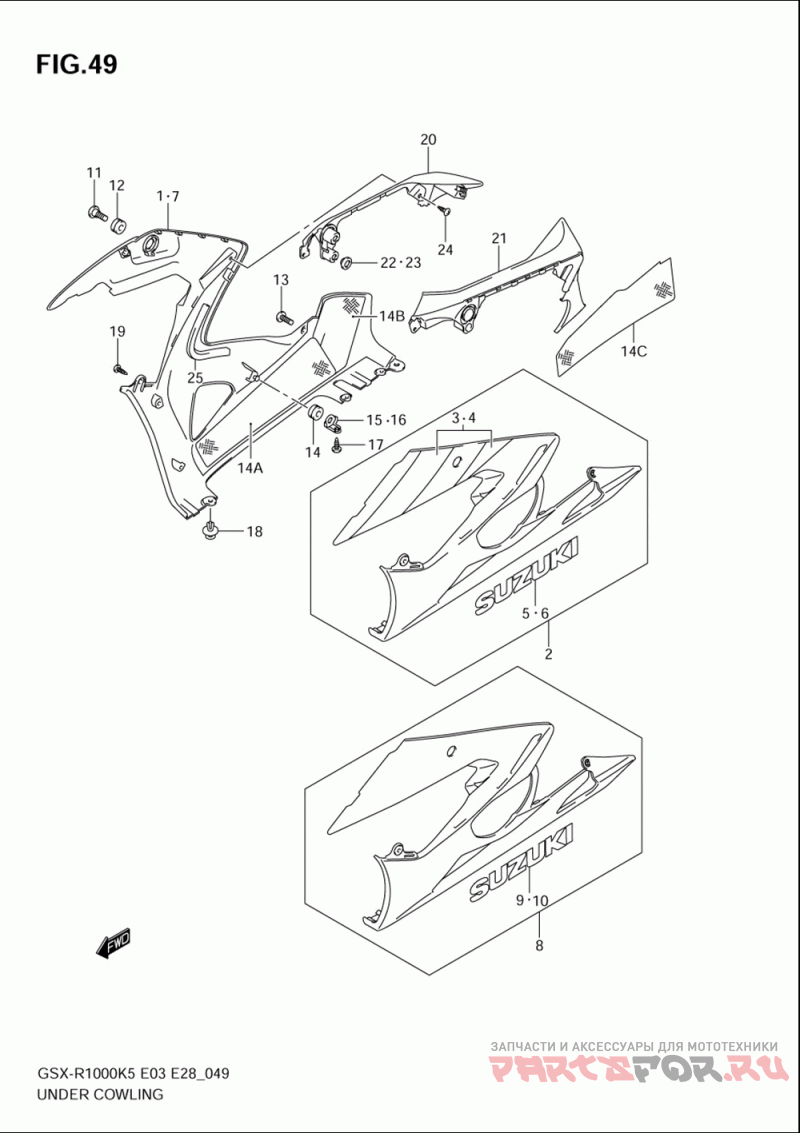

Under cowling (model k5)

Suzuki (Америка) GSX-R1000

Under cowling (model k5)

#

oem код

название

цена

1-1

94470-41G10-YBD

Cowl, Under Rh (white)

Cowl, Under Rh (white)

1-2

94470-41G10-YEC

Cowl, Under Rh (yellow)

Cowl, Under Rh (yellow)

1-3

94470-41G10-YHG

Cowl, Under Rh (gray)

Cowl, Under Rh (gray)

2-1

94480-41G11-YBD

Cowl, Under, L(wh

Cowl, Under, L(wh

2-2

94480-41G11-YEC

Cowl, Under, L(ye

Cowl, Under, L(ye

2-3

94480-41G11-YHG

Cowl, Under, L(gr

Cowl, Under, L(gr

3-1

68180-41G00-CCE

.tape Set, Rh

.tape Set, Rh

3-2

68180-41G00-CCF

.tape Set, Rh

.tape Set, Rh

3-3

68180-41G00-CCG

.tape Set, Rh

.tape Set, Rh

4-1

68190-41G00-CCE

.tape Set, Lh

.tape Set, Lh

4-2

68190-41G00-CCF

.tape Set, Lh

.tape Set, Lh

4-3

68190-41G00-CCG

.tape Set, Lh

.tape Set, Lh

5

68181-41G00-019

.emblem, Rh (black)

.emblem, Rh (black)

6

68191-41G00-019

.emblem, Lh (black)

.emblem, Lh (black)

9

68181-41G00-YU8

.emblem, Rh (gray)

.emblem, Rh (gray)

10

68191-41G00-YU8

.emblem, Lh (gray)

.emblem, Lh (gray)

11

Screw, Brace

Screw, Brace

12

Подушка

Подушка

13

Screw, Meter Panel

Screw, Meter Panel

14

.grommet

.grommet

14A

Shield Front Rh

Shield Front Rh

14B

Shield, Rear Rh

Shield, Rear Rh

14C

Shield, Lh

Shield, Lh

15

Крепление правое

Крепление правое

16

Bracket, Under C

Bracket, Under C

17

Болт

Болт

18

Clip, Lower

Clip, Lower

19

Винт

Винт

20

Cover, Under Cow

Cover, Under Cow

21

Cover, Under Cow

Cover, Under Cow

22

Cushion, Muffler

Cushion, Muffler

23

Cushion, Rh

Cushion, Rh

25

Cushion, Rh

Cushion, Rh
