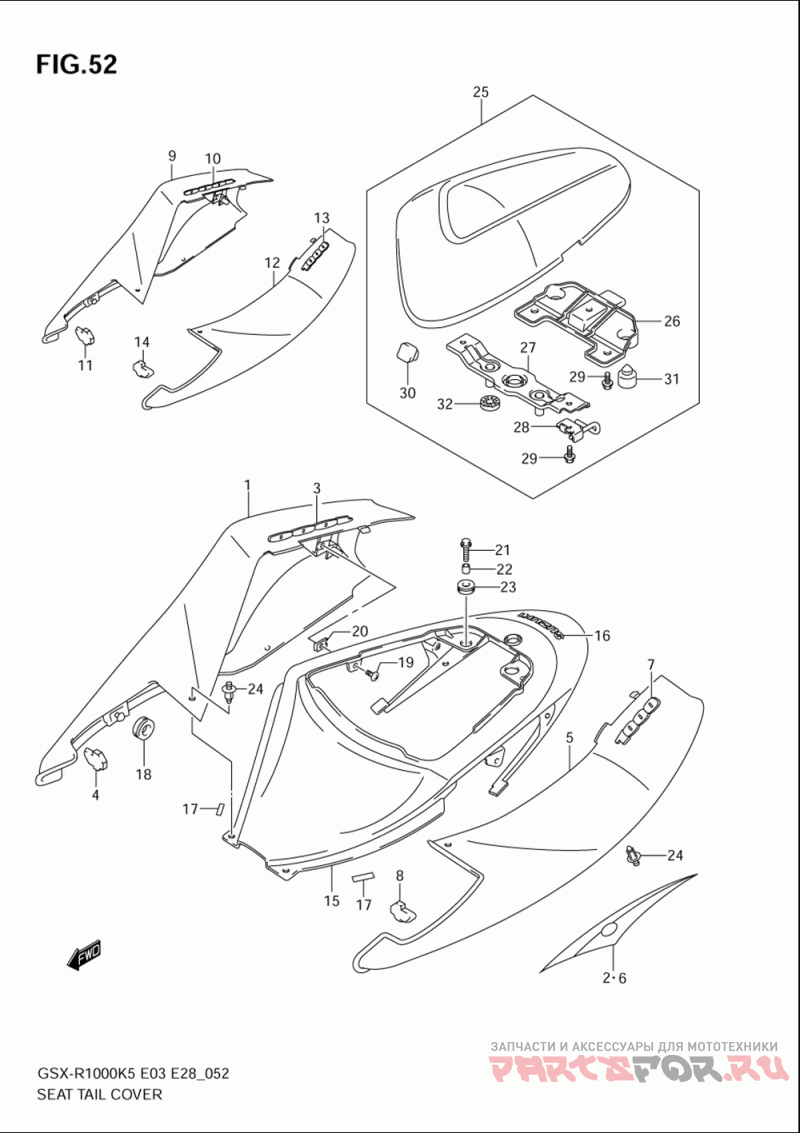

Seat tail cover (model k5)

Suzuki (Америка) GSX-R1000

Suzuki (Америка)
#oem кодцена
1-1
45501-41G02-YBD
Cover, Seat Tail
1-2
45501-41G02-YEC
Cover, Seat Tail
1-3
45501-41G02-YHG
Cover, Seat Tail
2-1
68165-41G00-CCH
.tape, Seat Tail Cover, R
2-2
68165-41G00-CCJ
.tape, Seat Tail Cover, R
2-3
68165-41G00-CCK
.tape, Seat Tail Cover, R
3
68161-41G00-LV8
.emblem, "1000"
4
45515-41G00
.cushion, Sat Tail Cover, R
5-1
45502-41G02-YBD
Cover, Seat Tail
5-2
45502-41G02-YEC
Cover, Seat Tail
5-3
45502-41G02-YHG
Cover, Seat Tail
6-1
68167-41G00-CCH
.tape, Seat Tail Cover, L
6-2
68167-41G00-CCJ
.tape, Seat Tail Cover, L
6-3
68167-41G00-CCK
.tape, Seat Tail Cover, L
8
45516-41G00
.cushion, Seat Tail Cover, L
10
68161-41G00-DM7
.emblem, "1000"
15-1
45503-41G00-YBA
Cover, Seat Tail Center (blue
15-2
45503-41G00-019
Cover, Seat Tail Center
16-1
68280-04F00-YD8
.emblem, Front (silver)
16-2
68280-04F00-YU8
.emblem, Front (gray)
17
94443-06G00
Tape, Meter Panel
18
09320-08028
.grommet
19
03241-1512B
Винт
20
09148-05038
Гайка
21
09116-06192
Болт (6X20)
22
09180-06286
Проставка
23
09320-10052
Подушка
24
09409-06314-5PK
Клипса (черн.)
25-1
45550-41G01-YBA
Box Comp, Seat T
25-2
45550-41G01-019
Box Comp, Seat T
26
45552-41G00
.bottom
27
45290-41G01
Striker
28
45553-41G00
.holder, Helmet
29
01550-0612A
Болт
30
45554-41G00
.cushion
31
09321-10011
.cushion, Front
32
45213-31300
.cushion
