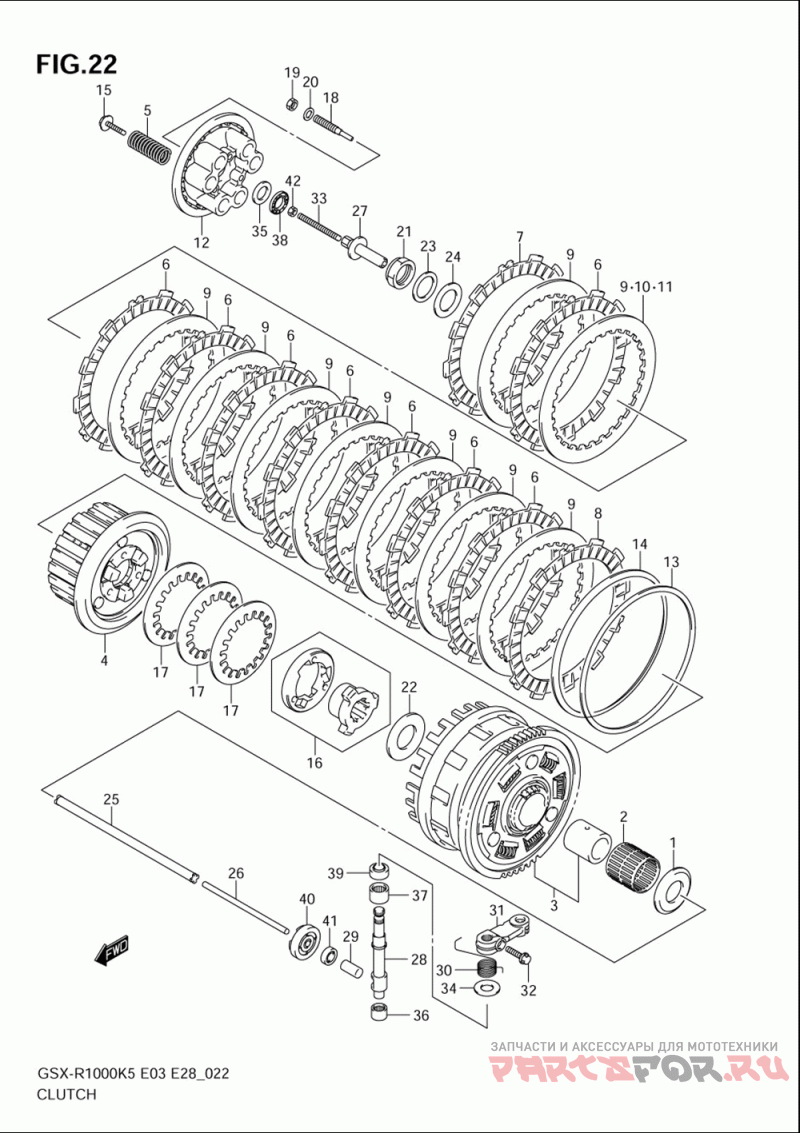

Сцепление

Suzuki (Америка) GSX-R1000

Suzuki (Америка)
#oem кодцена
1
09160-25073
Washer (25x54x2.4)
2
09263-35017
Bearing (35x40x35.8)
3
21200-40870
Gear Assy, Primary Driven
4
21410-41G00
Hub, Clutch Sleeve
5
21413-41G00
Spring, Clutch Sleeve
6
21441-36F00
Plate, Clutch Drive
7
21441-36F10
Plate, Clutch Drive
8
21442-41G00
Plate, Clutch Drive No.3
9
21451-41G00
Plate, Clutch Driven No.2
10
21451-41G10
Plate, Clutch Driven No.1
11
21451-41G20
Plate, Clutch Driven No.1
12
21462-41G00
Disc, Clutch Pressure
13
21471-41G00
Seat, Wave Washer
14
21472-41G00
Washer, Clutch Plate Wave
15
21482-41G00
Bolt, Clutch Spring
16
21610-41G00
Cam Set, Clutch
17
21621-41G00
Washer, Cam Reaction Wave
18
21622-41G00
Lifter, Clutch Pressure Disc
19
21623-41G00
Nut, Cl Press Disc
20
09181-08139
Washer, Gear Shift Arm
21
09159-24010
Nut, Clutch Sleeve Hub
22
09160-25056
Washer (25x50x25)
23
09160-25077
Washer, Sleeve Hub Nut
24
09164-24006
Washer (24.2x35x2)
25
23110-38B00
Rod, Push Rh
26
23111-35F00
Rod, Clutch Push Lh
27
23121-41G00
Piece, Clutch Push
28
23122-41G00
Camshaft, Clutch Release
29
23123-41G00
Cap, Clutch Push Rod
30
23125-41G00
Spring, Clutch Release
31
23271-41G00
Arm, Clutch Release
32
09103-06223
Болт (6X20)
33
09134-06015
Screw, Clutch Push
34
09160-10020
Washer, Clutch Push
35
09160-15045
Washer (15.5x28x1)
36
09263-10014
Bearing, Cl Rlse Low
37
09263-12027
Bearing, Cl Rlse Cam Upper
38
09263-15003
Подшипник (15x28x2)
39
09282-10012
Seal, Cl Rlse Arm
40
09285-06011
Сальник (6x34x10)
41
09285-10004
Oil Seal (10x17x5)
42
08310-0006A
Nut, No.1
