Коленвал для мотоциклов Suzuki (Америка) GSX-R1000 (2006)

Москва и регионы России

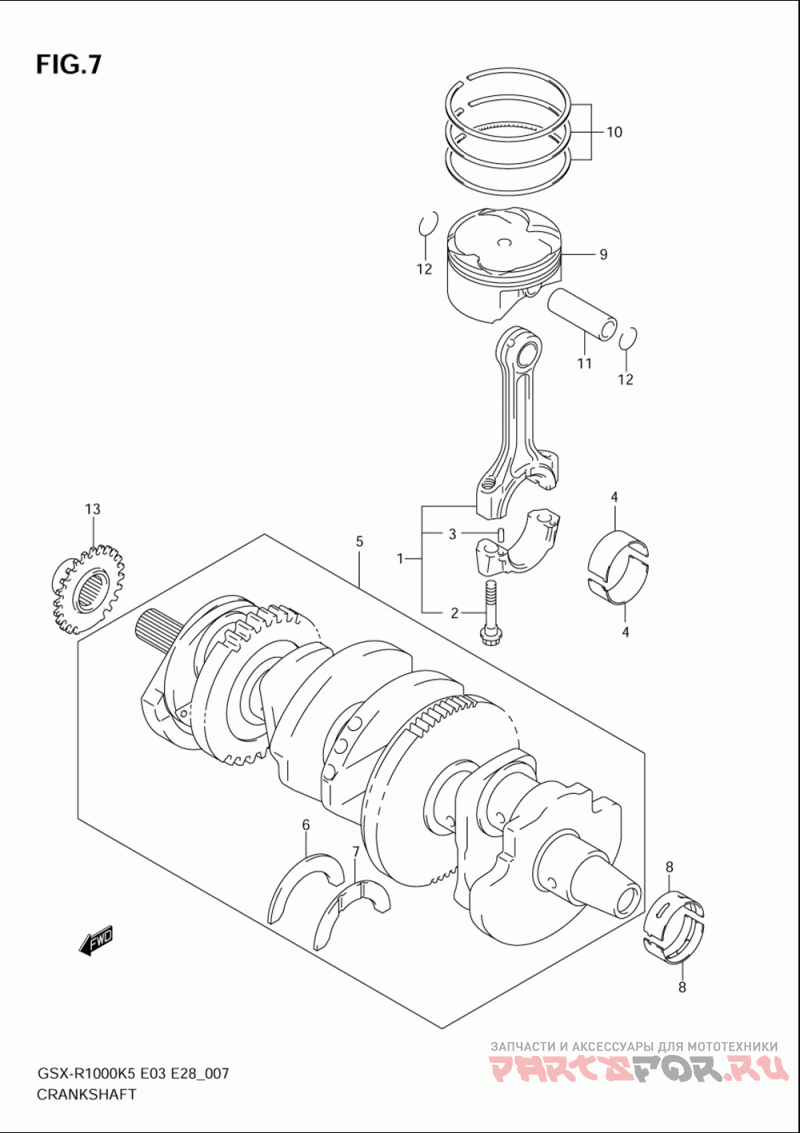

Коленвал

Suzuki (Америка) GSX-R1000

Коленвал

#

oem код

название

цена

1

Rod Assy, Connecting

Rod Assy, Connecting

2

.bolt, Connecting Rod

.bolt, Connecting Rod

3

Палец

Палец

4-1

12164-41G01-0A0

Bearing, Crank P

Bearing, Crank P

4-2

12164-41G01-0B0

Bearing, Crank P

Bearing, Crank P

4-3

12164-41G00-0C0

Bearing, Crank Pin (brown)

Bearing, Crank Pin (brown)

4-4

12164-41G00-0D0

Bearing, Crank Pin (yellow)

Bearing, Crank Pin (yellow)

5

Crankshaft Set

Crankshaft Set

6

12228-48B00-0E0

.bearing, Thrust Lh (green)

.bearing, Thrust Lh (green)

7-1

12228-48B00-0B0

.bearing, Thrust Lh (brown)

.bearing, Thrust Lh (brown)

7-2

12228-48B00-0C0

.bearing, Thrust Lh (red)

.bearing, Thrust Lh (red)

7-3

12228-48B00-0D0

.bearing, Thrust Lh (yellow)

.bearing, Thrust Lh (yellow)

7-5

12228-48B00-0F0

.bearing, Thrust Lh (blue)

.bearing, Thrust Lh (blue)

7-6

12228-48B00-0G0

.bearing, Thrust Lh (orange)

.bearing, Thrust Lh (orange)

7-7

12228-48B00-0H0

.bearing, Thrust Lh (black)

.bearing, Thrust Lh (black)

8-1

12229-41G00-0A0

Bearing, Crankshaft (green)

Bearing, Crankshaft (green)

8-2

12229-41G00-0B0

Bearing, Crankshaft (black)

Bearing, Crankshaft (black)

8-3

12229-41G00-0C0

Bearing, Crankshaft (brown)

Bearing, Crankshaft (brown)

8-4

12229-41G00-0D0

Bearing, Crankshaft (yellow)

Bearing, Crankshaft (yellow)

8-5

12229-41G00-0E0

Bearing, Crankshaft (blue)

Bearing, Crankshaft (blue)

9

12111-41G00-0F0

Поршень

Поршень

10

Кольца поршневые

Кольца поршневые

11

Палец поршневой

Палец поршневой

12

.circlip

.circlip

13

Звезда

Звезда

4-4

12164-41G01-0D0

Bearing, Crank P

Bearing, Crank P
