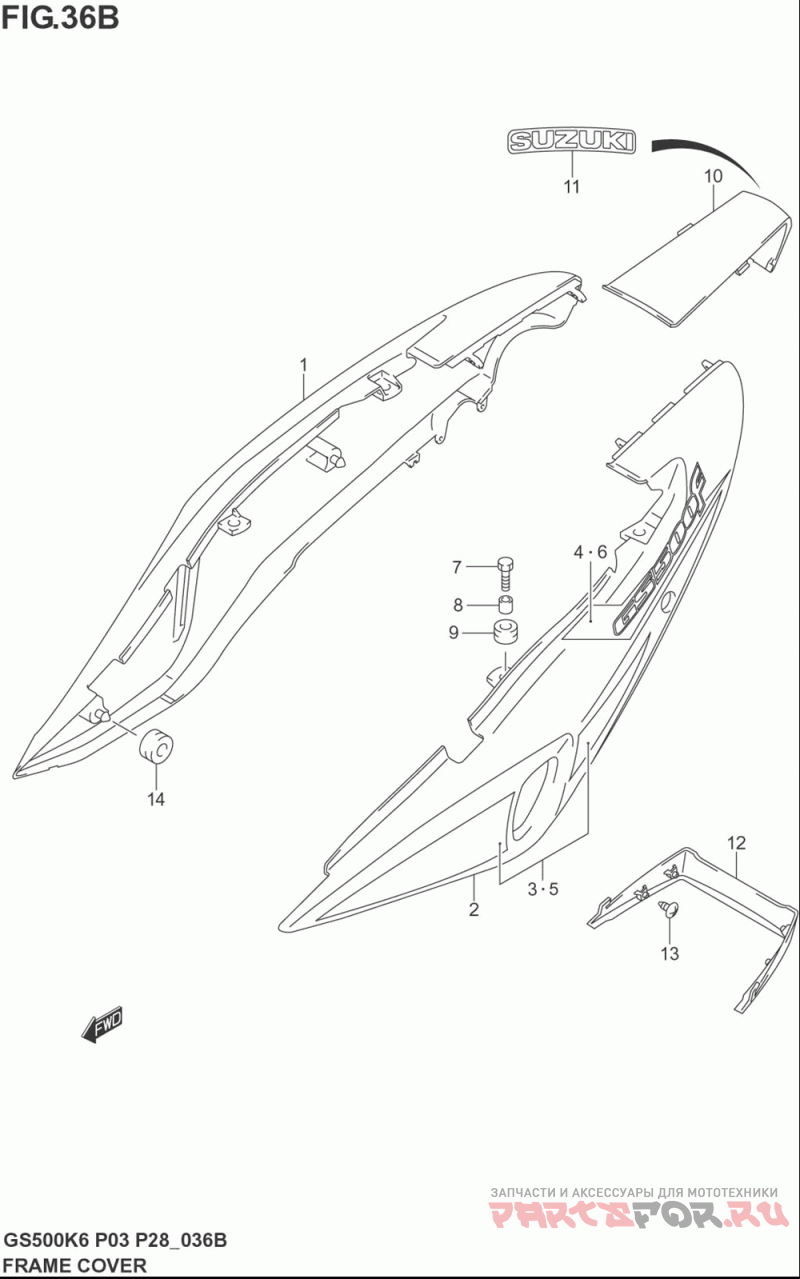

Frame cover (gs500fk4)

Suzuki (Америка) GS500F

Suzuki (Америка)
#oem кодцена
1-1
47111-01DA0-Y7L
Cover, Frame Rh (black)
1-2
47111-01DA0-0JW
Cover, Frame Rh (white)
1-3
47111-01DA0-Y9H
Cover, Frame Rh (yellow)
2-1
47211-0BE00-Y7L
Cover, Frame Lh (black)
2-2
47211-0BE00-0JW
Cover, Frame Lh (white)
2-3
47211-0BE00-Y9H
Cover, Frame Lh (yellow)
3-1
68130-01DB0-HU9
Tape Set, Front Rh (blue)
3-2
68130-01DB0-AMF
Tape Set, Front Rh (black)
3-3
68130-01DB0-BP9
Tape Set, Front Rh (yellow)
4-1
68135-01DB0-YFU
Tape, Rear Frame Cover, Rh
4-2
68135-01DB0-YFV
Tape, Rear Frame Cover, Rh
4-3
68135-01DB0-YFW
Tape, Rear Frame Cover, Rh
5-1
68140-01DB0-HU9
Tape Set, Front Lh (blue)
5-2
68140-01DB0-AMF
Tape Set, Front Lh (black)
5-3
68140-01DB0-BP9
Tape Set, Front Lh (yellow)
6-1
68145-01DB0-YFU
Tape, Rear Frame Cover, Lh
6-2
68145-01DB0-YFV
Tape, Rear Frame Cover, Lh
6-3
68145-01DB0-YFW
Tape, Rear Frame Cover, Lh
7
09116-06010
Болт (6X20)
8
09180-06263
Проставка
9
09320-09016
Подушка
10-1
47311-01DA0-0JW
Cover, Center (white)
10-2
47311-01DA0-Y7L
Cover, Center (black)
10-3
47311-01DA0-Y9H
Cover, Center (yellow)
11-1
68165-01DA0-YD8
Emblem (silver)
11-2
68165-01DA0-019
Emblem (black)
12
47321-01DA0-291
Cover, Lower
13
03541-0410A
Винт
14
09320-08018
Cushion, Brace
