Радиатор для мотоциклов Suzuki (Америка) DR Z400SM (2006)

Москва и регионы России

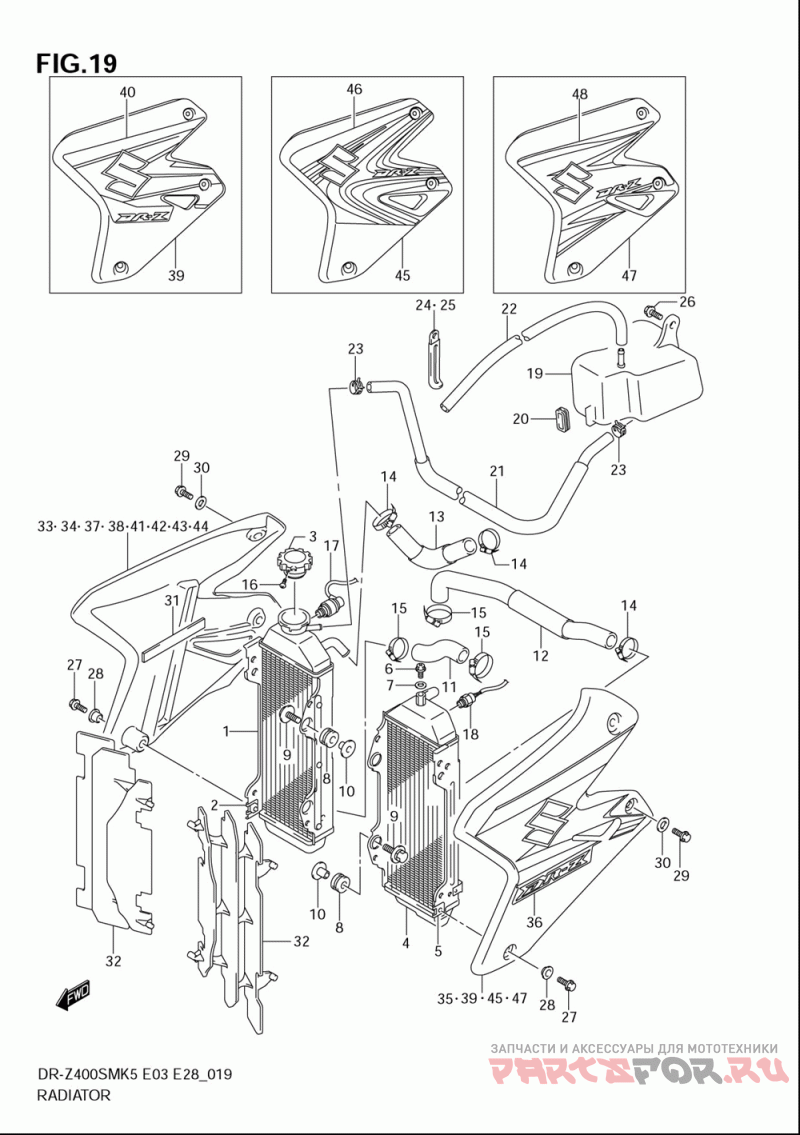

Радиатор

Suzuki (Америка) DR Z400SM

Радиатор

#

oem код

название

цена

1

Radiator, Water,

Radiator, Water,

2

Гайка

Гайка

3

Cap, Radiator 1.1

Cap, Radiator 1.1

4

Radiator Comp, W

Radiator Comp, W

6

Болт

Болт

7

Gasket, Drain Bolt

Gasket, Drain Bolt

8

Cushion, Support

Cushion, Support

9

Болт

Болт

10

Проставка

Проставка

11

Hose, Inlet

Hose, Inlet

12

Hose, Outlet

Hose, Outlet

13

Hose, Joint Upper

Hose, Joint Upper

14

Зажим

Зажим

15

Зажим шланга воды

Зажим шланга воды

16

Screw, Radiator Cap

Screw, Radiator Cap

17

Switch Assy, Water Temp

Switch Assy, Water Temp

18

Switch, Fan

Switch, Fan

19

Бачек

Бачек

20

Cushion, Reservoir Tank

Cushion, Reservoir Tank

21

Hose, Inlet

Hose, Inlet

22

09352-50901-00B

Hose, Tank Inlet

Hose, Tank Inlet

23

Зажим

Зажим

24

Стяжка L-62

Стяжка L-62

25

Зажим

Зажим

26

Болт

Болт

27

Screw, Radiator Side

Screw, Radiator Side

28

Washer, Ca Holder (6.3x16x1)

Washer, Ca Holder (6.3x16x1)

29

Screw, Tank Side

Screw, Tank Side

30

Шайба

Шайба

31

Cushion, Radiator Cover

Cushion, Radiator Cover

32

Louver, Radiator

Louver, Radiator

33-1

17760-29F80-019

Cover, Radiator Rh (black)

Cover, Radiator Rh (black)

33-2

17760-29F70-YU1

Cover, Radiator, Rh (yellow)

Cover, Radiator, Rh (yellow)

34-1

68665-29F80-BYL

.tape, Radiator Cover Rh (model K5for 019)

.tape, Radiator Cover Rh (model K5for 019)

34-2

68665-29F70-YHB

.tape, Radiator Cover, Rh (model K5for Yu1)

.tape, Radiator Cover, Rh (model K5for Yu1)

35-1

17770-29F80-019

Cover, Radiator Lh (black)

Cover, Radiator Lh (black)

35-2

17770-29F70-YU1

Cover, Radiator, Lh (yellow)

Cover, Radiator, Lh (yellow)

36-1

68675-29F80-BYL

.tape, Radiator Cover Lh (model K5for 019)

.tape, Radiator Cover Lh (model K5for 019)

36-2

68675-29F70-YHB

.tape, Radiator Cover, Lh (model K5for Yu1)

.tape, Radiator Cover, Lh (model K5for Yu1)

37-1

17760-29F90-019

Cover, Radiator Rh (black)

Cover, Radiator Rh (black)

37-2

17760-29F90-YU1

Cover, Radiator, Rh (yellow)

Cover, Radiator, Rh (yellow)

38-1

68665-29F90-CNN

.tape, Radiator Cover Rh (model K6for 019)

.tape, Radiator Cover Rh (model K6for 019)

38-2

68665-29F90-CET

.tape, Radiator Cover, Rh (model K6for Yu1)

.tape, Radiator Cover, Rh (model K6for Yu1)

39-1

17770-29F90-019

Cover, Radiator Lh (black)

Cover, Radiator Lh (black)

39-2

17770-29F90-YU1

Cover, Radiator, Lh (yellow)

Cover, Radiator, Lh (yellow)

40-1

68675-29F90-CNN

.tape, Radiator Cover Lh (model K6for 019)

.tape, Radiator Cover Lh (model K6for 019)

40-2

68675-29F90-CET

.tape, Radiator Cover, Lh (model K6for Yu1)

.tape, Radiator Cover, Lh (model K6for Yu1)

41-1

17760-29FB0-019

Cover, Radiator Rh (black) (model K7for 019)

Cover, Radiator Rh (black) (model K7for 019)

42-1

68665-29FB0-DVU

.tape, Radiator Cover Rh (model K7for 019)

.tape, Radiator Cover Rh (model K7for 019)

43

17760-29FA0-YU1

Cover, Radiator, Rh (yellow) (model K7for Yu1)

Cover, Radiator, Rh (yellow) (model K7for Yu1)

44

68665-29FA0-DRA

.tape, Radiator Cover, Rh (model K7for Yu1)

.tape, Radiator Cover, Rh (model K7for Yu1)

45-1

17770-29FB0-019

Cover, Radiator Lh (black) (model K7for 019)

Cover, Radiator Lh (black) (model K7for 019)

46-1

68675-29FB0-DVU

.tape, Radiator Cover Lh (model K7for 019)

.tape, Radiator Cover Lh (model K7for 019)

47

17770-29FA0-YU1

Cover, Radiator, Lh (yellow) (model K7for Yu1)

Cover, Radiator, Lh (yellow) (model K7for Yu1)

48

68675-29FA0-DRA

.tape, Radiator Cover, Lh (model K7for Yu1)

.tape, Radiator Cover, Lh (model K7for Yu1)
