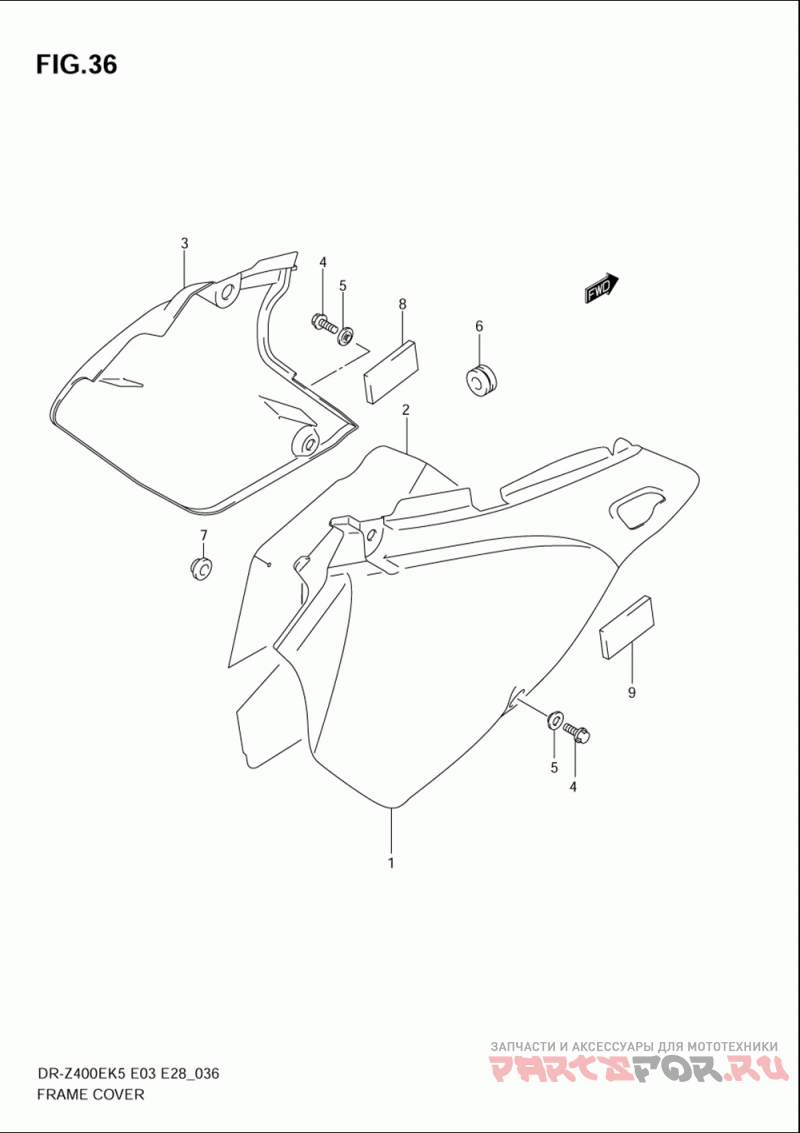

Обтекатель рамы
Suzuki (Америка) DR-Z400E
| # | oem код | название | цена |
|---|---|---|---|
1 | 47111-29F00-30H Cover, Frame Rh (white) | Cover, Frame Rh (white) | |
2 | 47166-29F00 Shield, Frame Cover Rh | Shield, Frame Cover Rh | |
3 | 47211-29F10-30H Cover, Frame Lh (white) | Cover, Frame Lh (white) | |
4-1 | 01547-0616B Болт | Болт | |
4-2 | 09103-06273 Болт | Болт | |
5-1 | 09169-06041 Washer, Guide Rr Brake Hose | Washer, Guide Rr Brake Hose | |
6 | 09320-06504 Подушка | Подушка | |
7 | 09321-10018 Cushion, Muffler | Cushion, Muffler | |
8 | 47161-29F00 Cushion, Cover Front Lh | Cushion, Cover Front Lh | |
9 | 71762-65G10 Cushion, Cover Front Rh | Cushion, Cover Front Rh |
