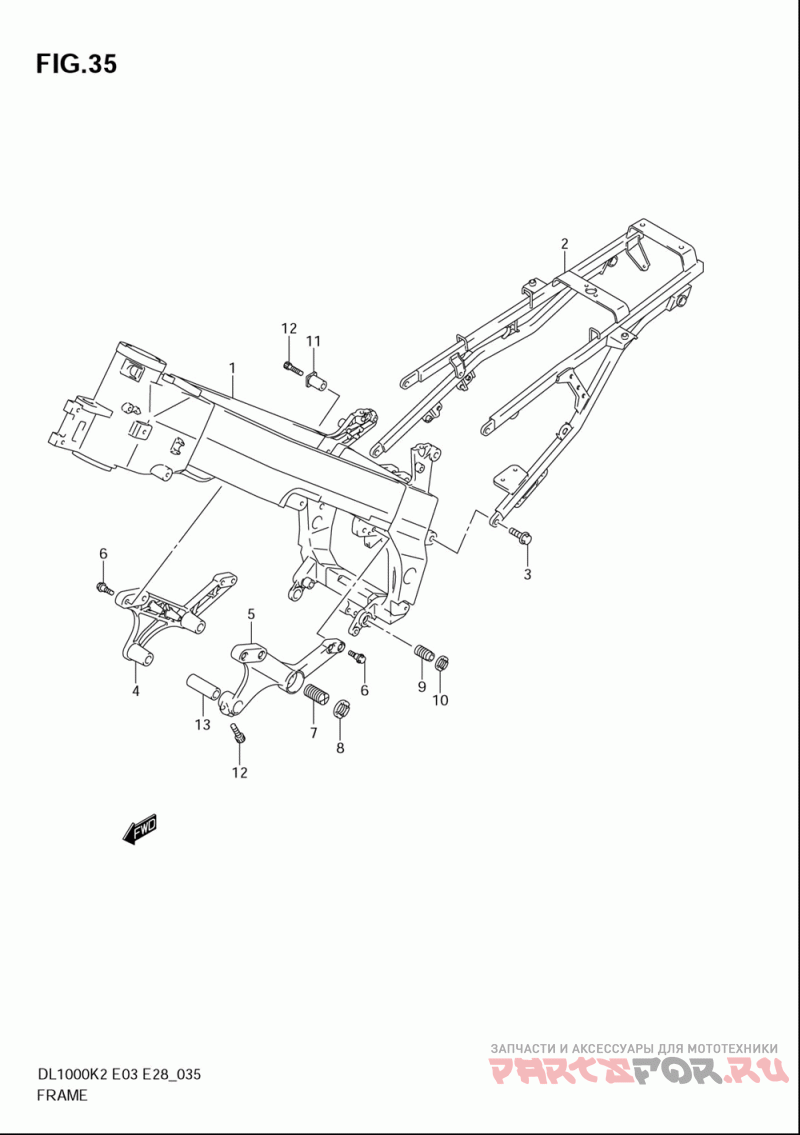

Рама

Suzuki (Америка) DL1000 V-STROM

Suzuki (Америка)
#oem кодцена
1-1
41100-06G00-YD8
Frame (silver)
1-2
41100-06G00-YAP
Frame (black)
2
41200-06G00
Rail, Seat
3-1
01550-1030A
Болт
3-2
09103-10379
Болт
4-1
41911-06G00-YD8
Bracket, Mount Rh (silver)
4-2
41911-06G01-YD8
Bracket, Mount Rh (silver)
4-3
41911-06G20-YAP
Bracket, Mount Rh (black)
5-1
41912-06G01-YD8
Bracket, Mount Lh (silver)
5-3
41912-06G20-YAP
Bracket, Mount Lh (black)
6-1
09106-08121
Болт
6-2
09106-08175
Болт
7-1
41921-19F11
Bolt, Crankcase Adjust
7-2
41923-16G00
Bolt, Crankcase Adjust
8
41922-19F00
Nut, Crankcase Adjust
9-1
41921-33E11
Bolt, Crankcase Adjust
9-2
41921-16G00
Bolt, Rear Head Adjust Rh
10
41922-33E00
Nut, Rear Head Adjust
11
41941-19F01
Spacer, Crankcase Upper
12
09106-08170
Bolt, Spacer
13
41198-02F00
Spacer, Engine Head Front Lh
