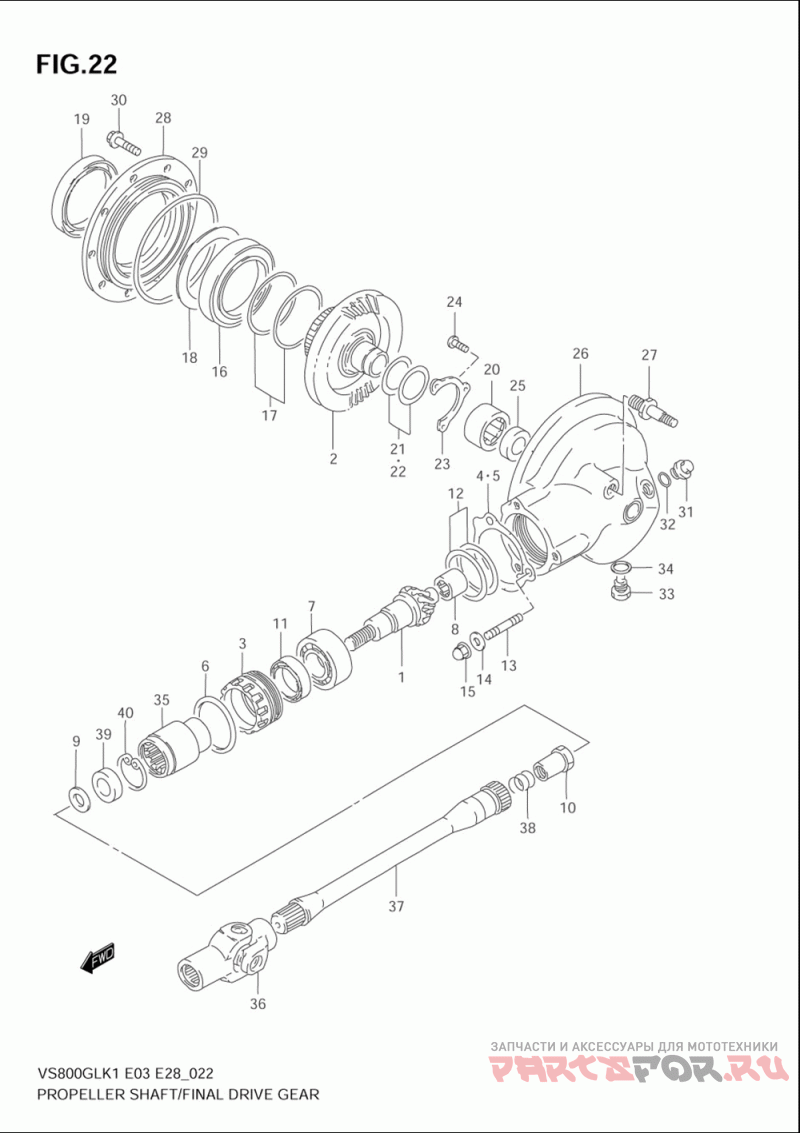

Карданный вал для мотоциклов Suzuki (Америка) VS800GL INTRUDER Boulevard S50 (2005)

Карданный вал

Suzuki (Америка) VS800GL INTRUDER Boulevard S50

oem код

название

цена

27300-38836

Gear & Case Set, Final Bevel

27311-38A00

.gear, Final Drive Bevel

27320-45C01

.gear, Final Driven Bevel

.stopper, Bearing

.plate

.plate

.o Ring (d:1.9, Id:61.6)

09267-30005

.bearing (30x62x23.8)

.bearing (17x32x16)

Washer, Drive Shaft

Гайка

Seal, Final Driven Gear Oil L

.shim Set, Final

Bolt, Stud L:25

Шайба

Гайка

Bearing, Final Driven Rh

27327-34810

.shim Set, Drive Gear Bearing

27328-34200

.plate

09289-70001

Seal, Final Driven Gear Oil R

09263-32007

.bearing, Lh (32x46x17.7)

27326-34820

.shim Set, Final Drive Gear

27326-34810

.shim Set, Final Drive Gear

.retainer, Bearing

Винт

.oil Seal (30x42x7)

.case, Final Gear

.stud Bolt

.case, Final Gear Bearing

09280-00015

.o Ring (d:3.5, Id:131.6)

01550-0825A

Болт

09247-18001

.plug, Oil Filler

09280-18004

O Ring (d:2.4, Id:17.8)

09247-14002

.plug, Oil Drain

09168-14004

.gasket (14.1x18x1.5)

27172-38A00

.coupling, Propeller Shaft

27100-38A50

Yoke, Universal Joint

27151-38A01

Вал гребного винта

09440-18019

Пружина

09283-30051

Oil Seal (28.4x48x15)

09381-40003

.circlip

27100-38A60

Yoke Comp, Unive
