Second air (model k1/k2/k3/k4) для мотоциклов Suzuki (Америка) VL800,Z VOLUSIA ; Boulevard C50 (2005)

Москва и регионы России

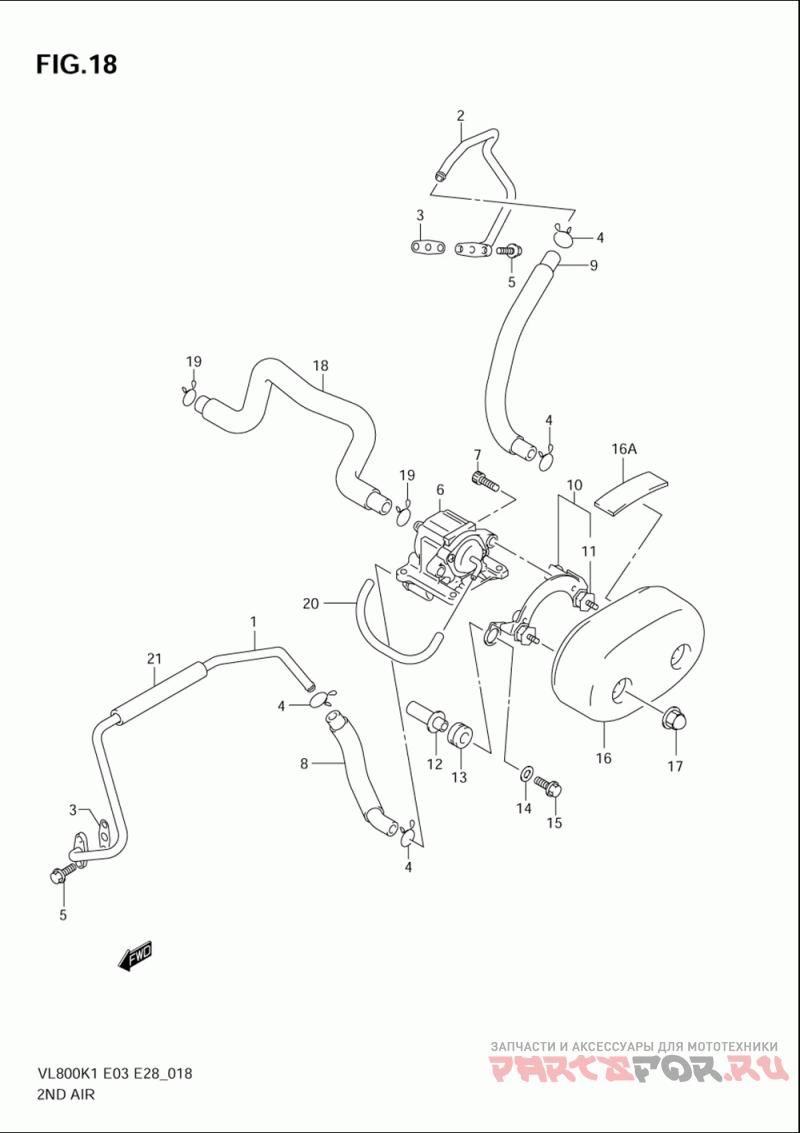

Second air (model k1/k2/k3/k4)

Suzuki (Америка) VL800,Z VOLUSIA ; Boulevard C50

Second air (model k1/k2/k3/k4)

#

oem код

название

цена

1

Pipe, 2nd Air Front

Pipe, 2nd Air Front

2

Pipe, 2nd Air Rear

Pipe, 2nd Air Rear

3

Gasket, 2nd Air Pipe

Gasket, 2nd Air Pipe

4

09401-15101-A05

Зажим

Зажим

5

.bolt, Eng Cov Fastener

.bolt, Eng Cov Fastener

6

Valve Assy, 2nd Air

Valve Assy, 2nd Air

7

Болт

Болт

8

Hose, 2nd Air Valve Front

Hose, 2nd Air Valve Front

9

Hose, 2nd Air Valve Rear

Hose, 2nd Air Valve Rear

10

Bracket, 2nd Air Support

Bracket, 2nd Air Support

11

.bolt, 2nd Air Cover

.bolt, 2nd Air Cover

12

Spacer, 2nd Air Br

Spacer, 2nd Air Br

13

Подушка

Подушка

14

Шайба

Шайба

15

Болт

Болт

16

Cover, 2nd Air

Cover, 2nd Air

16A

.sheet

.sheet

17

Гайка

Гайка

18

Hose, 2nd Air Cleaner

Hose, 2nd Air Cleaner

20

09355-35755-600

Hose (p/r Release)

Hose (p/r Release)

21

Protector, 2nd Air Pipe

Protector, 2nd Air Pipe
