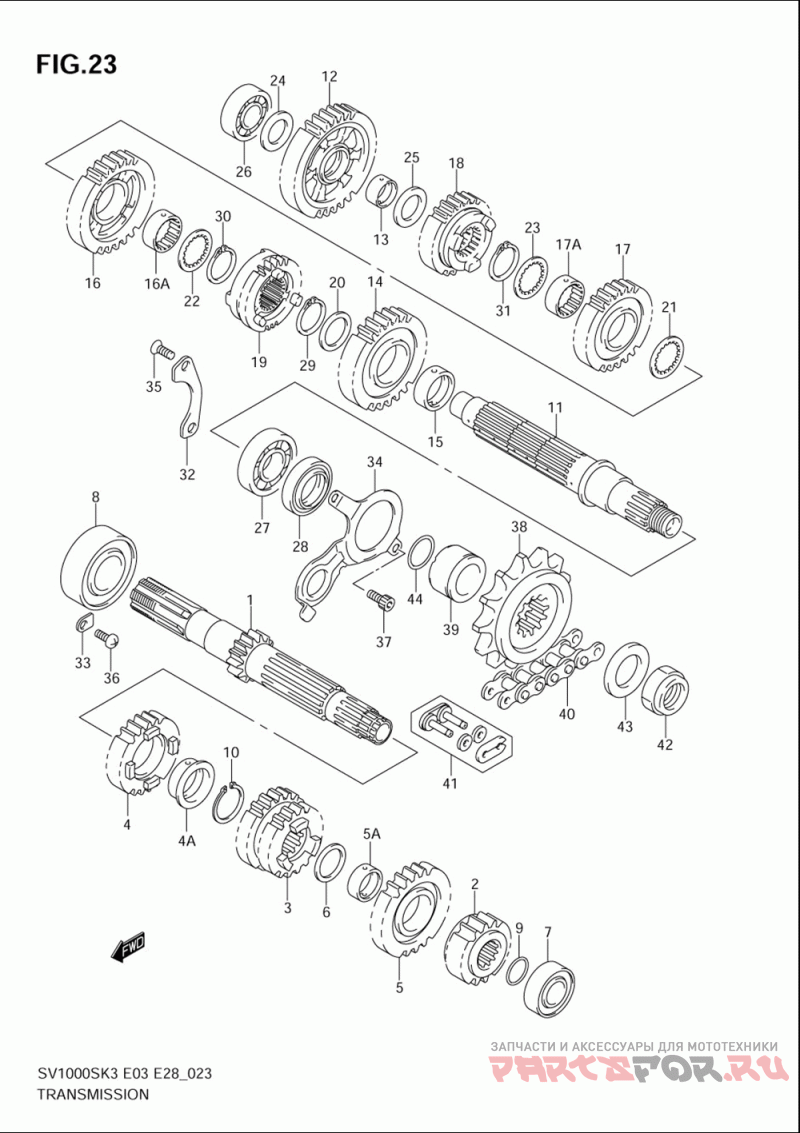

Трансмиссия

Suzuki (Америка) SV1000, S

Suzuki (Америка)
#oem кодцена
1
24120-16G00
Shaft, Counter (nt:12)
2
24221-02F01
Gear, 2nd Drive (nt:15)
3
24231-02F20
Gear, 3rd & 4th Drive
4
24251-02F11
Gear, 5th Drive (nt:23)
4A
24252-02F10
Bush, 5th Drive
5
24261-02F20
Gear, 6th Drive (nt:24)
5A
24262-02F00
Bush, 6th Drive
6
09181-22167
Washer, 6th Drive
7
09262-20139
Bearing, Center Shaft Lh
8
09262-25073
Bearing (25x62x17)
9
09280-17004
O Ring, Center Shaft
10
09380-27001
Circlip, 2nd Driven
11
24130-02F10
Вал ведущий
12
24311-02F10
Gear, 1st Driven (nt:32)
13
24312-02F00
Bush, 1st Driven
14
24321-02F11
Gear, 2nd Driven (nt:29)
15
24322-02F01
Bush, 2nd Driven
16
24331-02F12
Gear, 3rd Driven (nt:27)
16A
24332-17E20
Bush, 4th Driven
17
24341-02F20
Gear, 4th Driven (nt:27)
18
24351-02F13
Gear, 5th Driven (nt:25)
19
24361-02F30
Gear, 6th Driven (nt:24)
20
09160-27008
Washer, 2nd Driven Gear
21
09167-27002
Washer, 3rd & 4th Driven
22
24333-02F00
Washer, 3rd Driven Gear
24
09181-20251
Shim (t:1.0)
25
09181-22223
Washer, 1st Driven Lh
26
09262-20082
Bearing, Drive Shaft Rh
27
09262-28040
Bearing, Drive Shaft Lh
28
09283-38020
Seal, Drive Shaft
32
24741-06G00
Retainer, Drive Shaft Brg
33
24741-21A00
Retainer, Shift Cam Bearing
34
24751-06G00
Retainer, Drive Shaft Oil
35
09126-06011
Screw, Drive Shaft (6x12)
36
02112-0612A
Винт
37
07130-0612A
Bolt, Piston Cooling Jet
38
27510-21A31
Sprocket, Engine (nt:17)
39
27531-16G00
Распорная втулка
40-1
27600-16G00-110
Chain Assy (rk50sm0z1) (sv1000k3/k4/k5sv1000sk3/sk4/sk5l:110->108)
41
27620-16G00
Joint Set, Chain
42
09159-20004
Nut, Engine Sprocket
43
09181-25268
Shim (25x36x1.5)
44
09280-24010
O Ring (d:2.4, Id:23.7)
