Головка цилиндра для мотоциклов Suzuki (Америка) RM-Z450 (2005)

Москва и регионы России

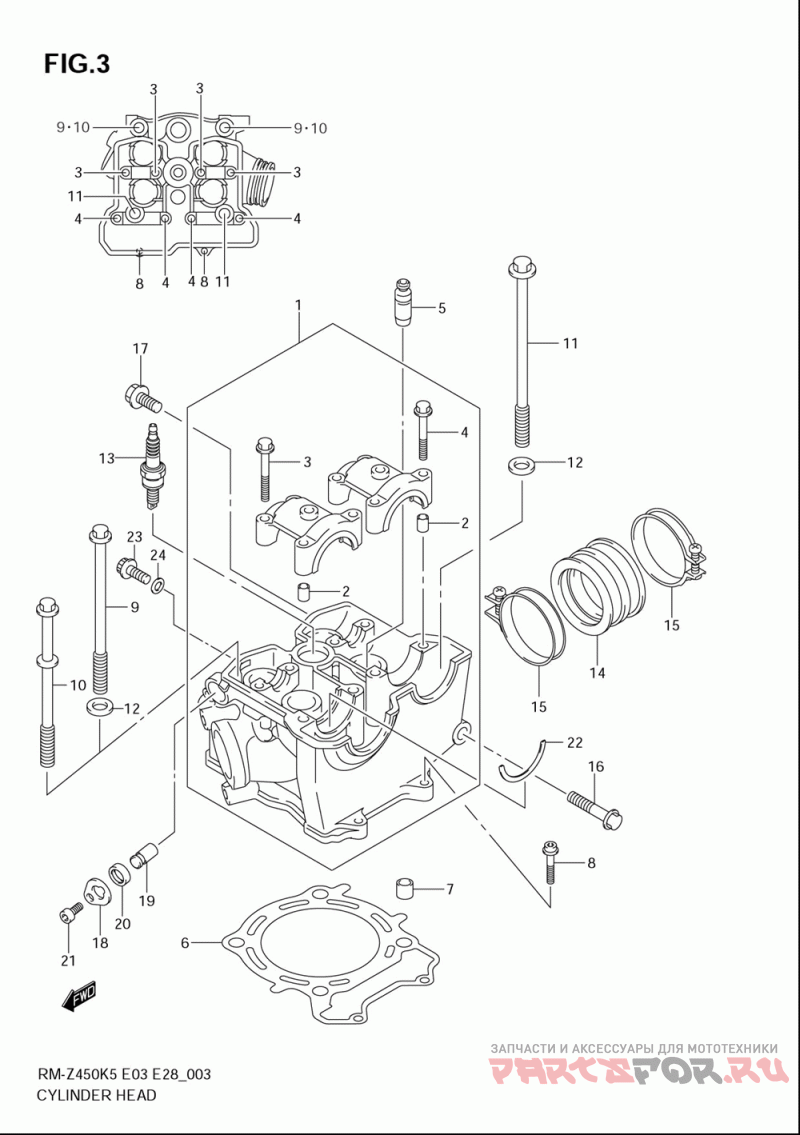

Головка цилиндра

Suzuki (Америка) RM-Z450

Головка цилиндра

#

oem код

название

цена

1-1

Head Assy, Cylin

Head Assy, Cylin

1-2

Head Assy, Cylin

Head Assy, Cylin

1-3

Head Assy, Cylin

Head Assy, Cylin

2

Штифт

Штифт

3

.bolt, Camshaft Housing (6x39

.bolt, Camshaft Housing (6x39

4

.bolt, Camshaft Housing (6x45

.bolt, Camshaft Housing (6x45

5-1

Guide, Valve (os.0.3) (optmodel K5/k6)

Guide, Valve (os.0.3) (optmodel K5/k6)

5-2

Guide, Valve (os.0.3) (optmodel K7)

Guide, Valve (os.0.3) (optmodel K7)

6-1

Прокладка

Прокладка

6-2

Прокладка

Прокладка

7

.pin, Crankcase

.pin, Crankcase

8

Bolt, Rear Master Cylinder

Bolt, Rear Master Cylinder

9

Bolt, Cylinder Head (10x115)

Bolt, Cylinder Head (10x115)

10

Bolt, Cylinder Head

Bolt, Cylinder Head

11

Bolt, Cylinder Head (10x145)

Bolt, Cylinder Head (10x145)

12-1

.gasket, Crankcase Bolt (model K5model K6/k7)

.gasket, Crankcase Bolt (model K5model K6/k7)

13-1

Plug, Spark (cr8eib-10)

Plug, Spark (cr8eib-10)

13-2

Plug, Spark (dimr8a10)

Plug, Spark (dimr8a10)

14

Pipe, Intake

Pipe, Intake

15

Clamp, Intake Pipe

Clamp, Intake Pipe

16

Bolt, Eng Mtg, Lh (10x43)

Bolt, Eng Mtg, Lh (10x43)

17

Bolt, Eng Mtg, Rh (10x28)

Bolt, Eng Mtg, Rh (10x28)

18

Retainer, Decomp Shaft

Retainer, Decomp Shaft

19

Plug, Decomp Shaft Hole

Plug, Decomp Shaft Hole

20

Oil Seal (10x17x6)

Oil Seal (10x17x6)

21

Bolt, Piston Cooling Jet

Bolt, Piston Cooling Jet

22

C Ring, Camshaft

C Ring, Camshaft

23

Болт

Болт

24

Прокладка (6.2x11x1.2)

Прокладка (6.2x11x1.2)
