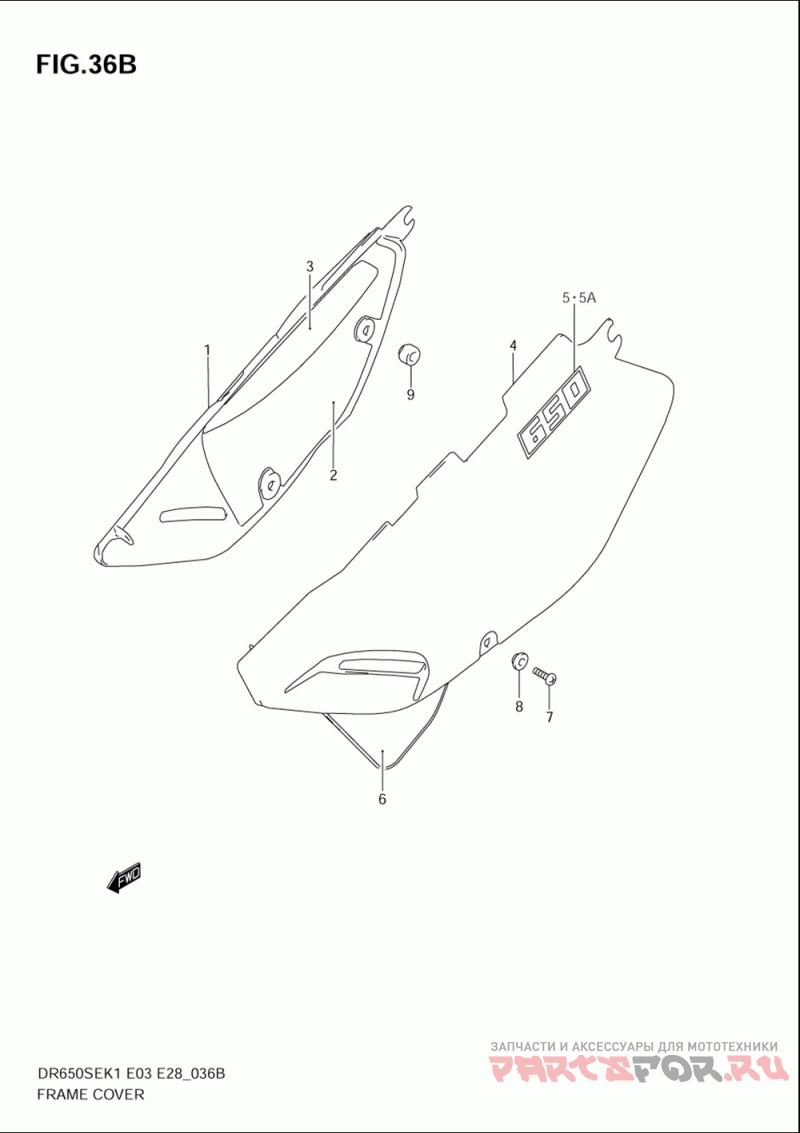

Frame cover (model k3/k4/k5)
Suzuki (Америка) DR650SE
| # | oem код | название | цена |
|---|---|---|---|
1 | 47111-32E00-30H Cover, Frame Rh (white) | Cover, Frame Rh (white) | |
2 | 47166-32E00 Shield, Cover Lower Rh | Shield, Cover Lower Rh | |
3 | 47167-32E00 Shield, Cover Upper Rh | Shield, Cover Upper Rh | |
4 | 47211-32E00-30H Cover, Frame Lh (white) | Cover, Frame Lh (white) | |
5 | 68131-32E10-8YM Эмблема | Эмблема | |
5A | 68131-32E20-8YM Эмблема | Эмблема | |
6 | 68146-32E00 Tape, No.2, Lh | Tape, No.2, Lh | |
7 | 02142-06167 Винт | Винт | |
8 | 09169-06041 Washer, Guide Rr Brake Hose | Washer, Guide Rr Brake Hose | |
9 | 09321-10019 .cushion | .cushion |
