Frame cover (model k2) для мотоциклов Suzuki (Америка) DR650SE (2005)

Москва и регионы России

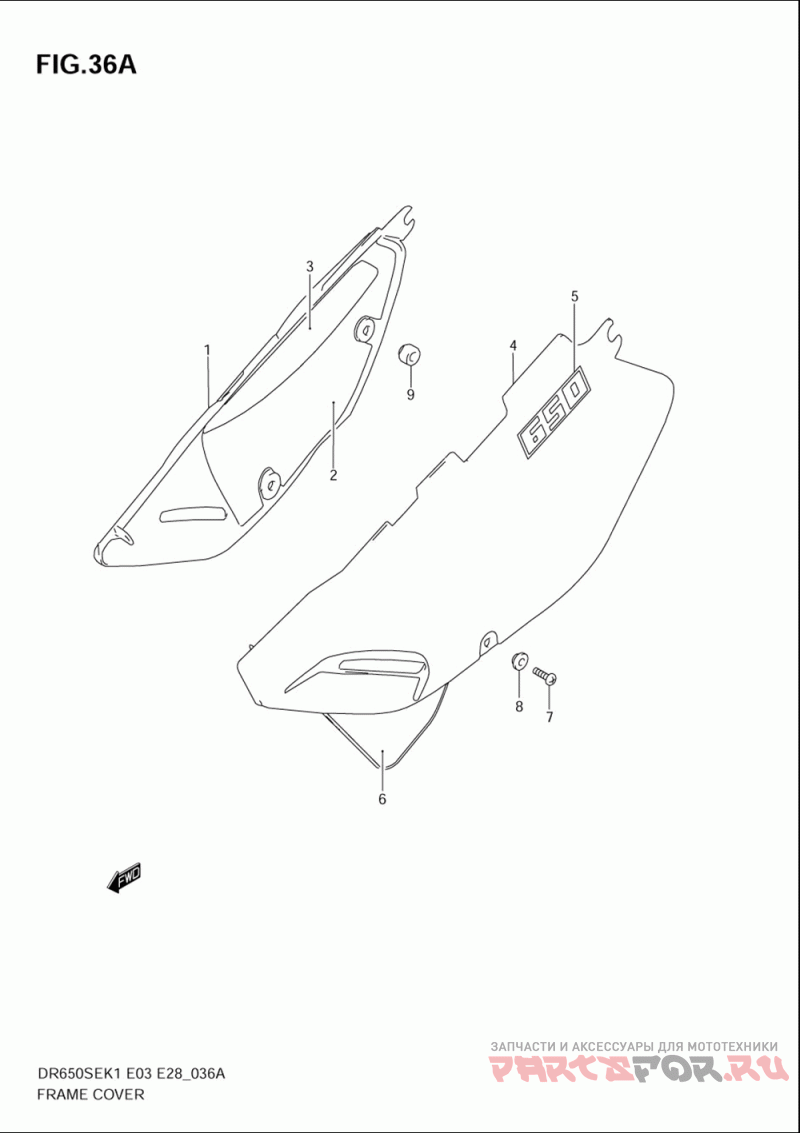

Frame cover (model k2)

Suzuki (Америка) DR650SE

Frame cover (model k2)

#

oem код

название

цена

1-1

47111-32E00-30H

Cover, Frame Rh (white)

Cover, Frame Rh (white)

1-2

47111-32E00-YU1

Cover, Frame Rh (yellow)

Cover, Frame Rh (yellow)

2

Shield, Cover Lower Rh

Shield, Cover Lower Rh

3

Shield, Cover Upper Rh

Shield, Cover Upper Rh

4-1

47211-32E00-30H

Cover, Frame Lh (white)

Cover, Frame Lh (white)

4-2

47211-32E00-YU1

Cover, Frame Lh (yellow)

Cover, Frame Lh (yellow)

5-1

68131-32E10-8YM

Эмблема

Эмблема

5-2

68131-32E10-GY8

Эмблема

Эмблема

6

Tape, No.2, Lh

Tape, No.2, Lh

7

Винт

Винт

8

Washer, Guide Rr Brake Hose

Washer, Guide Rr Brake Hose

9

.cushion

.cushion
