Сцепление для мотоциклов Suzuki (Америка) DL1000 V-STROM (2005)

Москва и регионы России

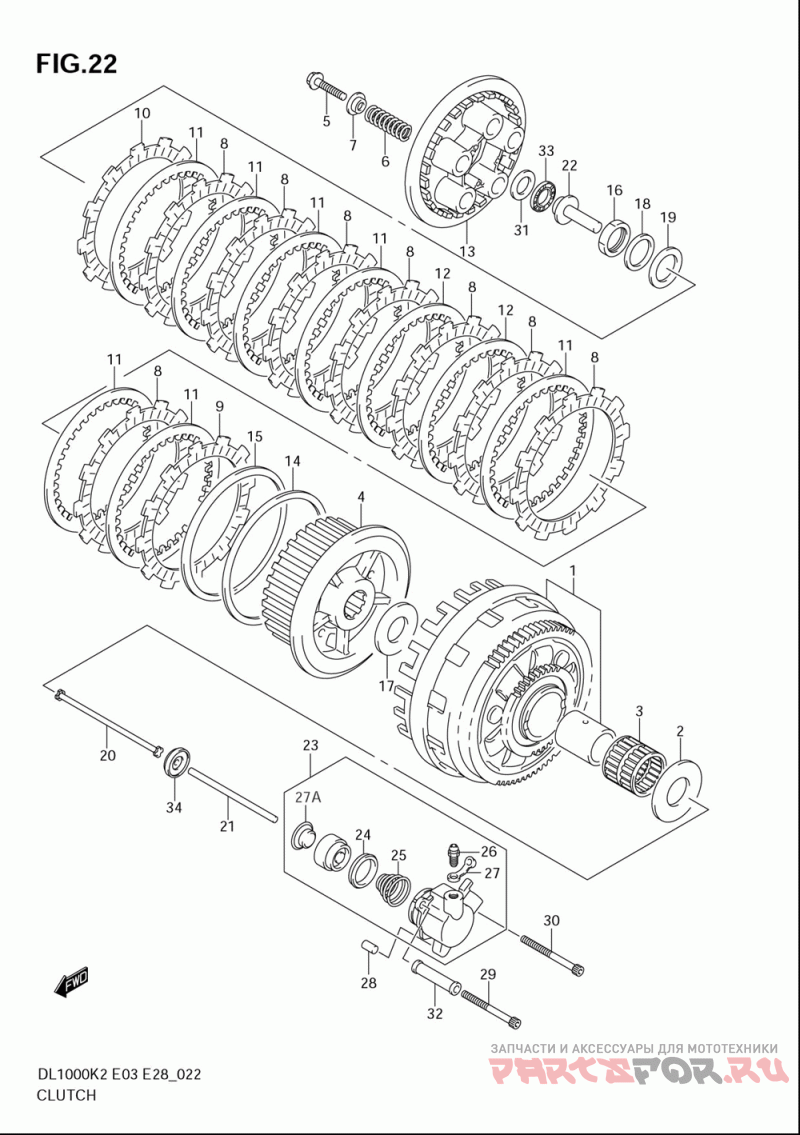

Сцепление

Suzuki (Америка) DL1000 V-STROM

Сцепление

#

oem код

название

цена

1-1

Gear Assy, Primary Driven (model K2/k3nt:57)

Gear Assy, Primary Driven (model K2/k3nt:57)

2

Washer (25x52x2.5)

Washer (25x52x2.5)

3

Bearing (35x40x39.8)

Bearing (35x40x39.8)

4

Hub, Clutch Sleeve

Hub, Clutch Sleeve

5

Bolt, Spring Support

Bolt, Spring Support

6-1

Пружина

Пружина

7

Washer, Clutch Spring

Washer, Clutch Spring

8

Plate, Clutch Drive

Plate, Clutch Drive

9

Plate, Clutch Drive No.3

Plate, Clutch Drive No.3

10

Plate, Clutch Drive, No.2

Plate, Clutch Drive, No.2

11

Plate, Clutch Driven No.1

Plate, Clutch Driven No.1

12

Plate, Clutch Driven No.2

Plate, Clutch Driven No.2

13

Disk, Clutch Pressure

Disk, Clutch Pressure

14

Seat, Wave Washer

Seat, Wave Washer

15

Washer, Clutch Plate Wave

Washer, Clutch Plate Wave

16

Nut, Clutch Sleeve Hub

Nut, Clutch Sleeve Hub

17

Washer (25x50x25)

Washer (25x50x25)

18

Washer (24.2x35x2)

Washer (24.2x35x2)

19

Washer, Clutch Sleeve Nut

Washer, Clutch Sleeve Nut

20

Rod, Clutch Push, Rh

Rod, Clutch Push, Rh

21

Rod, Clutch Push, Lh

Rod, Clutch Push, Lh

22

Piece, Clutch Push

Piece, Clutch Push

23

Cylinder, Clutch Release

Cylinder, Clutch Release

24

.cup

.cup

25

Пружина

Пружина

26

Штуцер перепускной

Штуцер перепускной

27

.cap, Bleeder

.cap, Bleeder

27A

.cover, Dust

.cover, Dust

28

Штифт

Штифт

29

Болт

Болт

30

Bolt, Cl Rlse Cyl

Bolt, Cl Rlse Cyl

31

Washer (15.5x28x1)

Washer (15.5x28x1)

32

Spacer, Cl Release

Spacer, Cl Release

33

Подшипник (15x28x2)

Подшипник (15x28x2)

34

Seal (6x34x10.5)

Seal (6x34x10.5)
