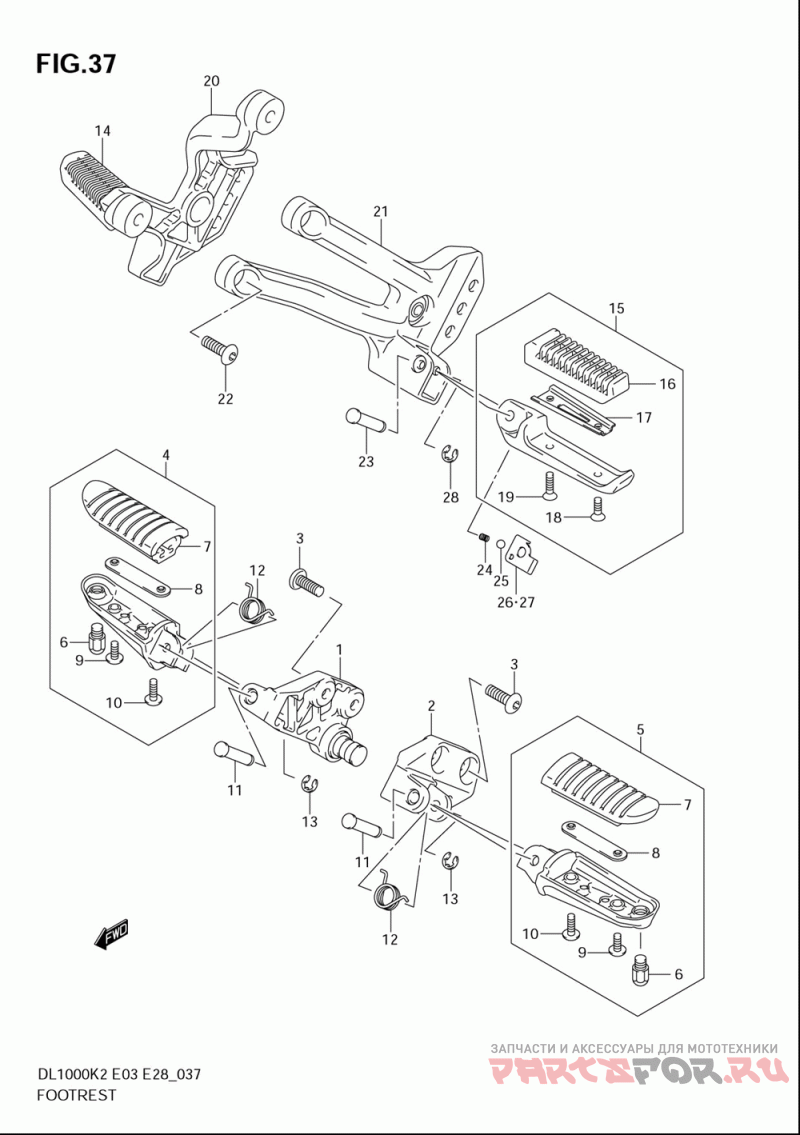

Подножки для мотоциклов Suzuki (Америка) DL1000 V-STROM (2005)

Подножки

Suzuki (Америка) DL1000 V-STROM

oem код

название

цена

1-1

43510-06G01-13L

Bracket, Fr Foot

1-2

43510-06G01-YAP

Bracket, Front Rh (black)

2-1

43521-06G01-13L

Bracket, Fr Foot

2-2

43521-06G01-YAP

Bracket, Front Lh (black)

09106-08150

Болт

4-1

43501-06G01

Footrest Assy, Front Rh

5-1

43502-06G01

Footrest Assy, Front Lh

Болт

.rubber

.plate

.screw, Outer

Винт

Pin, Lh

Пружина

E Ring, Pinion

Footrest Assy, Pillion Rh

43700-42F00

Footrest Assy, Pillion Lh

.rubber

.plate, Stop

Винт

Винт

20-1

43811-06G01-13L

Bracket, Pillion

20-2

43811-06G01-YAP

Bracket, Pillion Rh (black)

21-1

43821-06G01-13L

Bracket, Pillion

21-2

43821-06G01-YAP

Bracket, Pillion Lh (black)

Штифт

Пружина

Ball, Detent No.1

Plate, Footrest Rh

Plate, Footrest Lh
