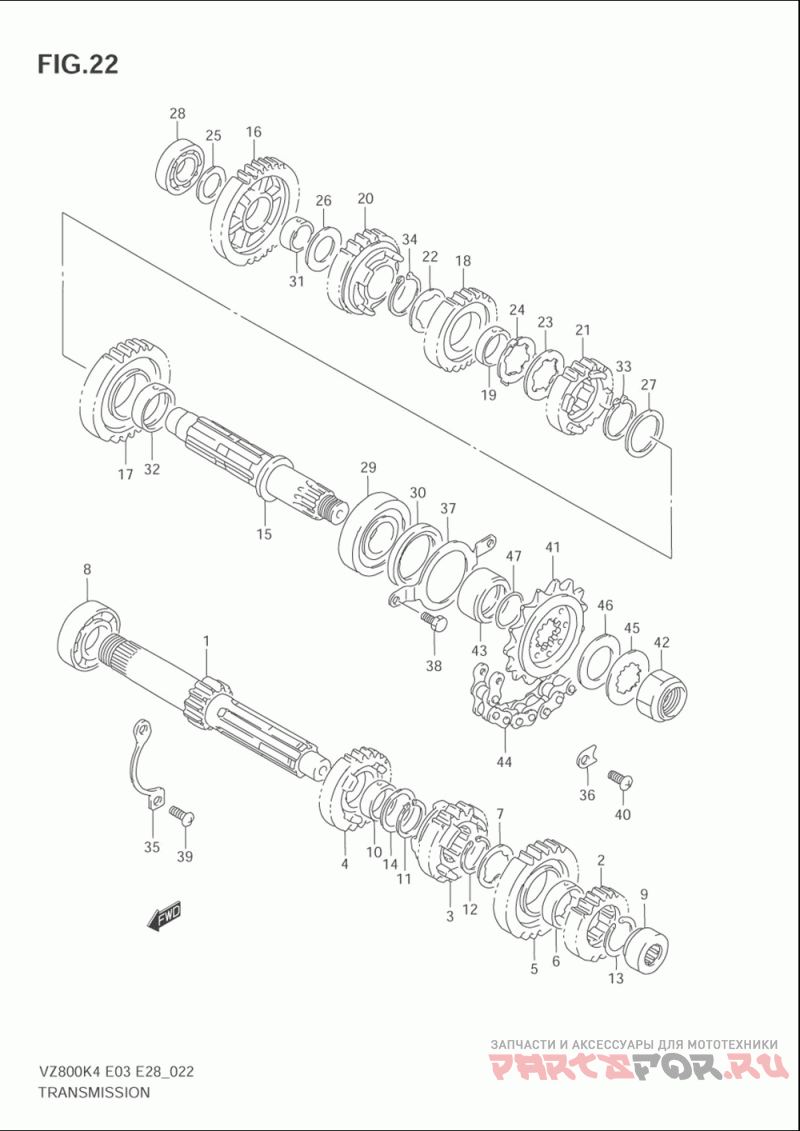

Трансмиссия

Suzuki (Америка) VZ800 MARAUDER

Suzuki (Америка)
#oem кодцена
1
24121-48E51
Shaft, Cntr (nt:13)
2
24221-44B20
Gear, 2nd Drive (nt:19)
3
24231-44B02
Gear, 3rd Drive (nt:20)
4
24241-44B01
Gear, 4th Drive (nt:23)
5
24251-44B10
Gear, 5th Drive (nt:25)
6
24252-38A10
Bush, 6th Drive
7
09167-25021
Washer, 3rd Driven
8
09262-25080
Bearing, Rh (25x62x17)
9
09263-20084
Bearing, Cntr Lh
10
24252-19F00
Bush, 5th Drive
11
09380-25003
Пружинное стопорное кольцо
13
09380-25013
Circlip, 2nd Drive
14
08211-25351
Шайба
15
24130-48E02
Вал ведущий
16
24311-44B10
Gear, 1st Driven (nt:32)
17
24321-44B20
Gear, 2nd Driven (nt:30)
18
24331-44B01
Gear, 3rd Driven (nt:24)
19
24332-27A00
Bush, 3dr Driven Gear
20
24341-44B02
Gear, 4th Driven (nt:22)
21
24351-44B10
Gear, 5th Driven (nt:20)
22
09167-28001
Washer (28.1x38x1.0)
23
09167-28002
Lock Washer, Lh
24
09169-28001
Lock Washer, Rh
25
09181-20223
Washer (20x32x1.0)
26
09181-22223
Washer, 1st Driven Lh
27
09181-28167
Washer, 2nd Driven (28x36x1.0
28
09262-20059
Bearing, Rh (20x42x12)
29
09262-25125
Bearing, Drive Shaft Lh
30
09283-36003
Seal, Drive Shaft
31
24312-02F00
Bush, 1st Driven
32
09300-28002
Bush, 2nd Driven
33
08331-3128A
Circlip Idle Drive Gear
35
24741-38A00
Седло
36
24742-44B00
Retainer, Idle Shaft, Lh
37
24751-48E00
Retainer, Drive Shaft
38
01500-0610B
Болт
39
02112-0612A
Винт
40
02122-0612A
Винт
41
27510-17C10
Sprocket, Engine (nt:15)
42
27521-48E00
Гайка
43
27531-24B00
Проставка
44
27600-19C00-116
Chain Assy (did50vm, 116le)
45
09167-25019
Washer (25x40x1.4)
46
09160-25070
Шайба
47
09280-24010
O Ring (d:2.4, Id:23.7)
