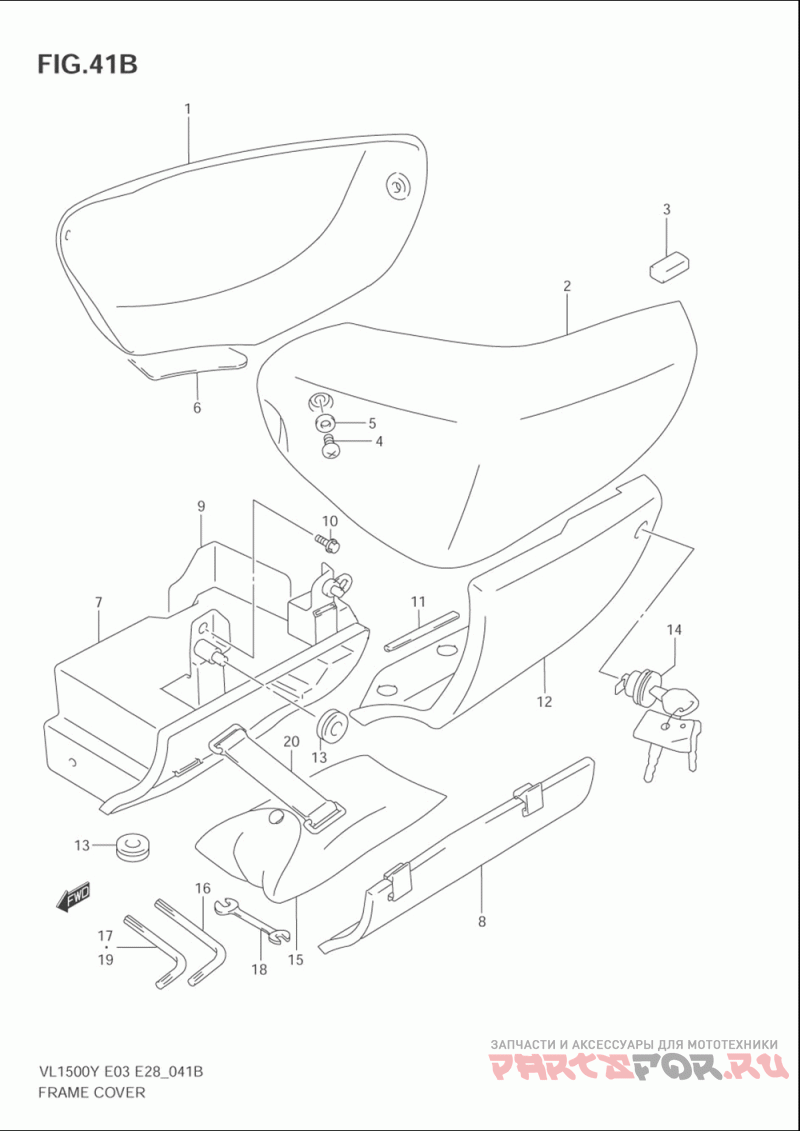

Frame cover (model k2/k3) для мотоциклов Suzuki (Америка) VL1500, B INTRUDER (2004)

Frame cover (model k2/k3)

Suzuki (Америка) VL1500, B INTRUDER

oem код

название

цена

1-1

47110-10F00-33J

Cover, Frame Rh (black)

1-2

47110-10F00-1LF

Cover, Frame Rh (blue)

1-3

47110-10F00-YM6

Cover, Frame Rh (silver)

1-4

47110-10F00-YU8

Cover, Frame Rh (gray)

1-5

47110-10F00-Y7G

Cover, Frame Rh (green)

2-1

47210-10F00-33J

Cover, Frame Lh (black)

2-2

47210-10F00-1LF

Cover, Frame Lh (blue)

2-3

47210-10F00-YM6

Cover, Frame Lh (silver)

2-4

47210-10F00-YU8

Cover, Frame Lh (gray)

2-5

47210-10F00-Y7G

Cover, Frame Lh (green)

Cushion, Lh

Болт

Washer (6.5x15x1.5)

Shield, Frame Cover Rh

Body, Tool Holder

Cap, Tool Holder

Shield, Body

Винт

Molding, Lh

Cover, Tool Holder

Cushion, Seat Tail Cover Fr

Lock Set, Fuel Lid

Tool Assy

Hexagon Spanner, 12

Hexagon Spanner, 4

Spanner (8x10)

Spanner, Hexagon 5

Ремень крепежн.
