Frame cover (model k4) для мотоциклов Suzuki (Америка) LS650P SAVAGE (2004)

Москва и регионы России

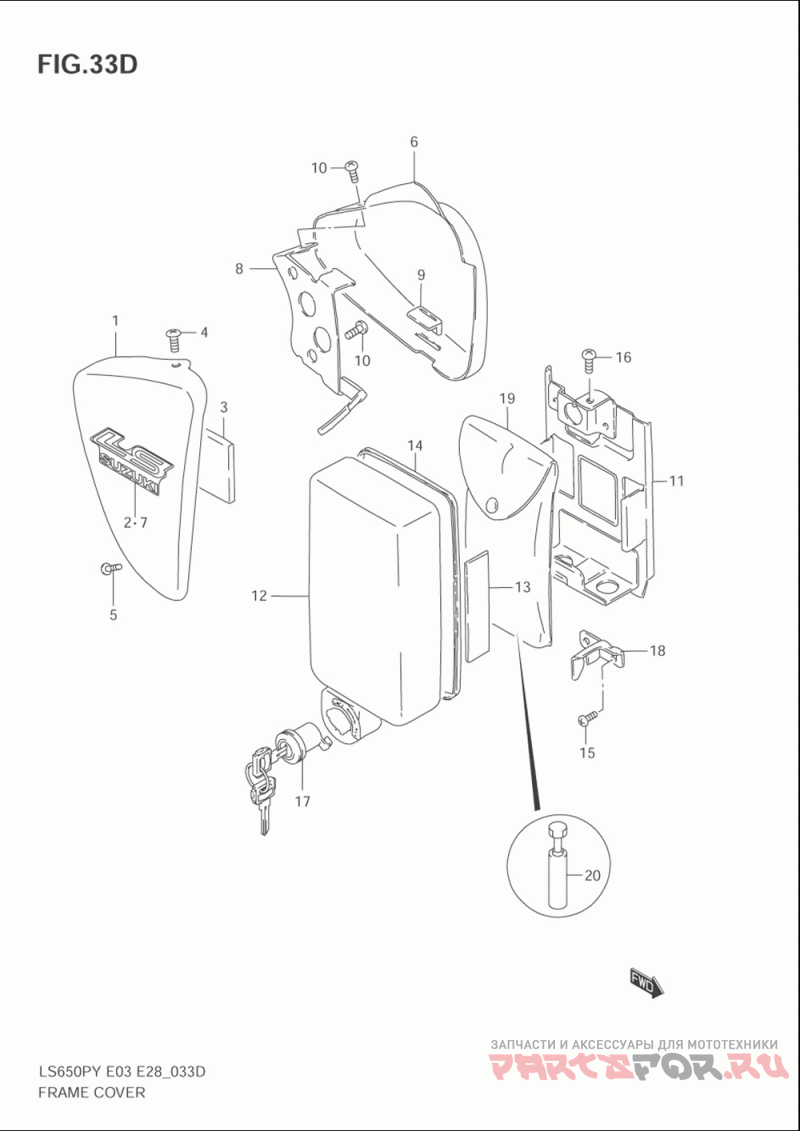

Frame cover (model k4)

Suzuki (Америка) LS650P SAVAGE

Frame cover (model k4)

#

oem код

название

цена

1-1

47100-24B40-YV2

Cover, Frame Rh (silver)

Cover, Frame Rh (silver)

1-2

47100-24B40-YAT

Cover, Frame Rh (purple)

Cover, Frame Rh (purple)

2-1

68131-24B40-AES

.emblem

.emblem

2-2

68131-24B40-AET

.emblem

.emblem

3

.cushion

.cushion

4

Винт

Винт

5

Винт

Винт

6-1

47200-24B40-YV2

Cover, Frame Lh (silver)

Cover, Frame Lh (silver)

6-2

47200-24B40-YAT

Cover, Frame Lh (purple)

Cover, Frame Lh (purple)

8

Bracket, Frame Cover Lh

Bracket, Frame Cover Lh

9

Cushion, Lh

Cushion, Lh

10

Винт

Винт

11

Holder, Tool

Holder, Tool

12

Cover, Tool Holder

Cover, Tool Holder

13

Cushion, Control (80x80x2)

Cushion, Control (80x80x2)

14

.molding

.molding

16

Винт

Винт

17

Lock Set, Tool H

Lock Set, Tool H

18

Пластина

Пластина

19

Tool Assy

Tool Assy

20

Gauge Assy, Tension

Gauge Assy, Tension
