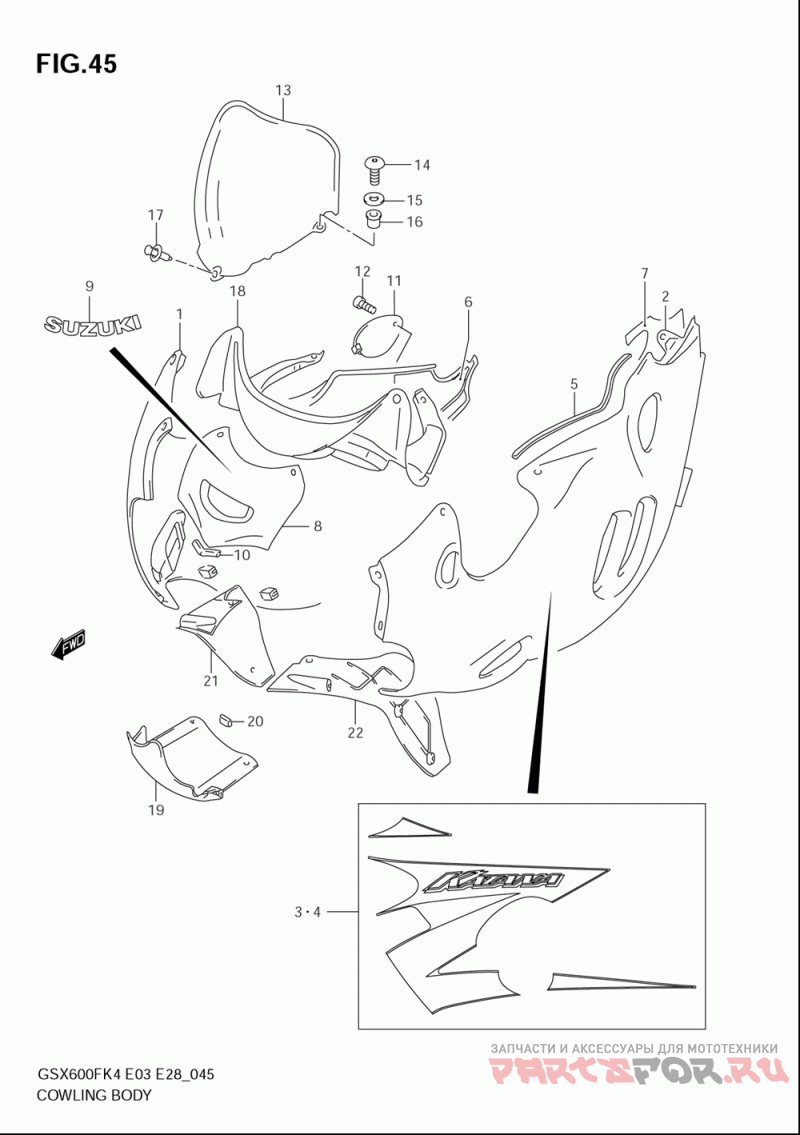

Cowling body (model k4) для мотоциклов Suzuki (Америка) GSX600F KATANA (2004)

Cowling body (model k4)

Suzuki (Америка) GSX600F KATANA

oem код

название

цена

1-1

94503-08F00-YU9

Cowl Assy, Side Rh (yellow)

1-2

94503-08F00-YC2

Cowl Assy, Side Rh (blue)

2-1

94504-08F00-YU9

Cowl Assy, Side Lh (yellow)

2-2

94504-08F00-YC2

Cowl Assy, Side Lh (blue)

2-3

94504-08F10-YU9

Cowl Assy, Side Lh (yellow)

2-4

94504-08F10-YC2

Cowl Assy, Side Lh (blue)

3-1

68680-08F30-YGJ

.tape, Lower Rh

3-2

68680-08F30-YGK

.tape, Lower Rh

4-1

68690-08F30-YGJ

.tape, Lower Lh

4-2

68690-08F30-YGK

.tape, Lower Lh

4-3

68690-08F40-YGJ

.tape, Lower Lh

4-4

.tape, Lower Lh

.molding

.shield, Side Rh

.shield, Side Lh

8-1

94410-08F00-YU9

Panel, Center Upper (yellow)

8-2

94410-08F00-YEX

Panel, Center Upper (blue)

9-1

68185-05C10-019

.tape, Upper Panel (black)

9-2

68185-05C10-YBD

.tape, Upper Panel (white)

94413-08F00

.cushion, Upper

11-1

94435-08F00-YU9

Lid, Oil (yellow)

11-2

Lid, Oil (blue)

Болт

Wind Screen

Винт

Шайба

.nut, Air Intk Inner Guide

09409-08308-5ES

Клипса (черн.)

94421-08F00

Панель

19-1

94412-08F00-YU9

Panel, Center Lower (yellow)

19-2

94412-08F00-YC2

Panel, Center Lower (blue)

94461-08F10

Panel, Inner Rh

94462-08F10

Panel, Inner Lh
